KNOWING YOUR VEHICLE
70
117 F1A0089

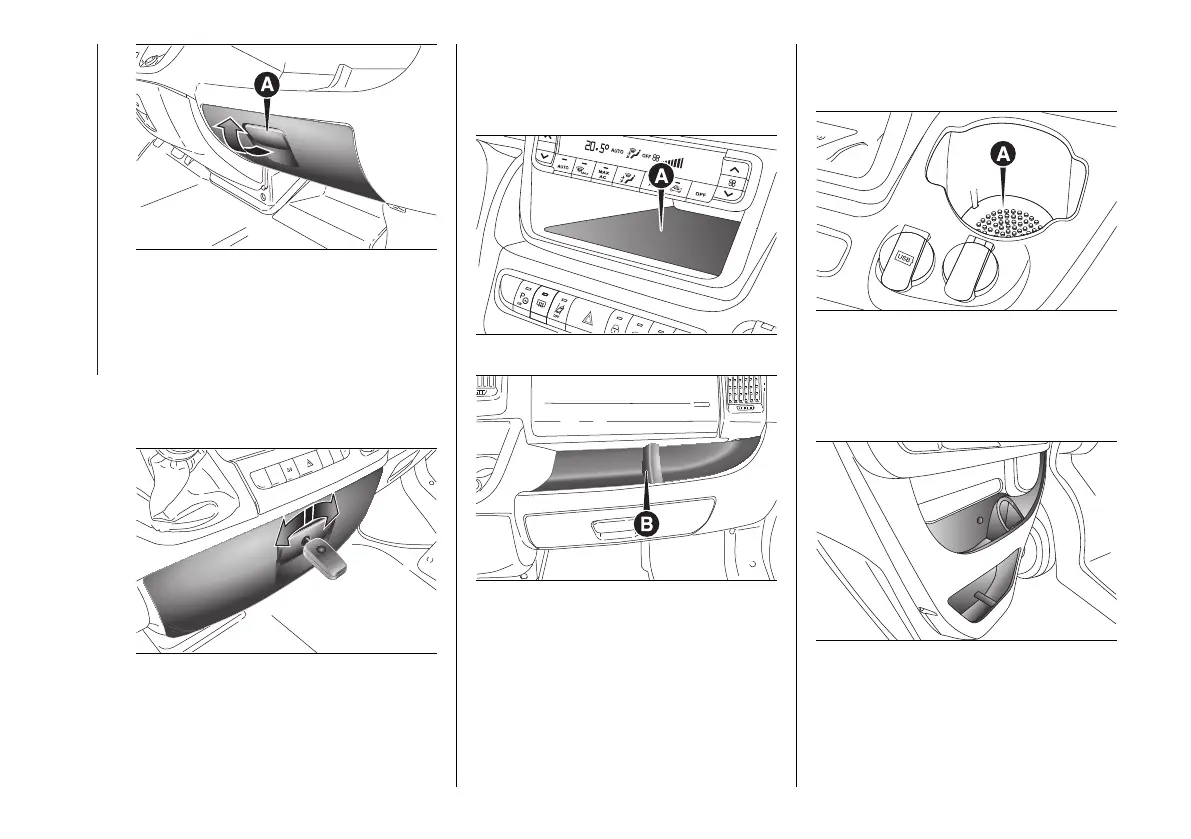

GLOVE COMPARTMENT
WITH LOCK
(for versions/markets, where provided)
To lock/unlock the lock, turn the key
clockwise/anticlockwise fig. 118.
To open the glove compartment, use
the opening handle.
118 F1A0090
STORAGE
COMPARTMENT
(for versions/markets, where provided)
Compartment (A) fig. 119 is located in
the middle of the dashboard.
Compartment (B) fig. 120 is located on
the right side of the dashboard, above
the oddment box.
119 F1A0626
120 F1A0092
CUP HOLDER -
CAN HOLDER -
BOTTLE HOLDER ON
DASHBOARD
(for versions/markets, where provided)
On a few versions, two cup holders
/ can holders / bottle holders (0.5 /
0.75 litres) fig. 121 are available on the
central dashboard in the place of the
storage compartment.
121 F1A0628
DOOR POCKETS
There are oddment/document pockets
fig. 122 located in each of the door
panels.
122 F1A0775
