WHEELS
RIMS AND TYRES
Alloy or pressed steel rims. Tubeless
radial carcass tyres.
All approved tyres are listed in the
registration document.
WARNING If there are any
discrepancies between the Owner
Handbook and the Registration
Document, take the information from
the latter. To ensure driving safety,
make sure that all the wheels are fitted
with tyres of the same make and type.
WARNING Do not use air chambers
with tubeless tyres.
SPARE WHEEL
Pressed steel rim.
Tubeless tyre.
WHEEL GEOMETRY
Front wheels toe-in measured between
rims: -1 ±1 mm.
The values refer to the vehicle in
running order.
CORRECT READING OF
THE TYRE

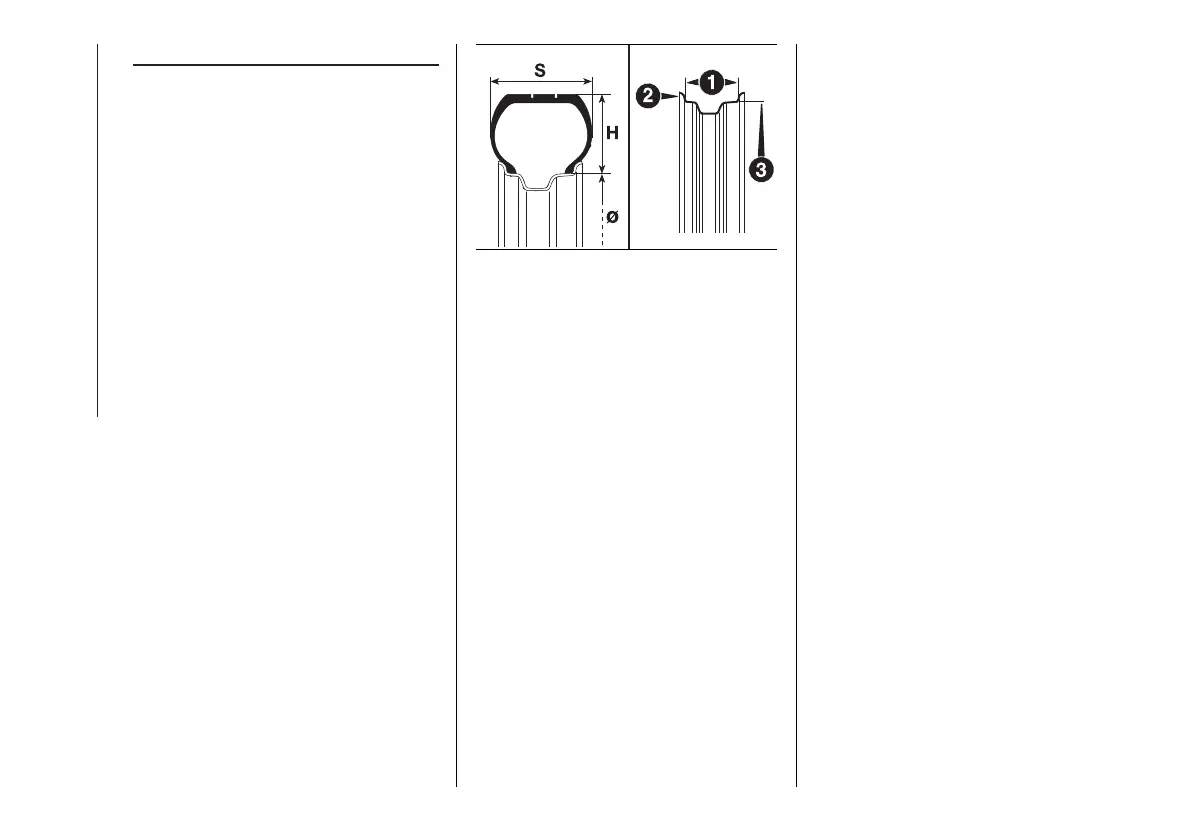

Example: 215/70 R 15 109S (see
fig. 339)
339 F1A0247
215 Nominal width (S, distance in mm
between sides)
70 Height/width ratio (H/S), expressed
as a percentage
R Radial tyre
15 Rim diameter in inches (Ø)
109 Load rating (capacity)
S Maximum speed rating
Maximum speed index
Q up to 160 km/h
R up to 170 km/h
S up to 180 km/h
T up to 190 km/h
U up to 200 km/h
H up to 210 km/h
V up to 240 km/h
Maximum speed index
for snow tyres
QM + S up to 160 km/h
TM + S up to 190 km/h
HM + S up to 210 km/h
Load index (capacity)
70 = 335 kg 95 = 690 kg
71 = 345 kg 96 = 710 kg
72 = 355 kg 97 = 730 kg
73 = 365 kg 98 = 750 kg
74 = 375 kg 99 = 775 kg
75 = 387 kg 100 = 800 kg
76 = 400 kg 101 = 825 kg
77 = 412 kg 102 = 850 kg
78 = 425 kg 103 = 875 kg
79 = 437 kg 104 = 900 kg
80 = 450 kg 105 = 925 kg
81 = 462 kg 106 = 950 kg
82 = 475 kg 107 = 975 kg
83 = 487 kg 108 = 1000 kg
84 = 500 kg 109 = 1030 kg
85 = 515 kg 110 = 1060 kg
86 = 530 kg 111 = 1090 kg
87 = 545 kg 112 = 1120 kg
88 = 560 kg 113 = 1150 kg
89 = 580 kg 114 = 1180 kg
