FUSES
GENERAL INFORMATION
188) 189) 190) 191) 192)
78)
Fuses protect the electrical system:
they intervene (blow) in the event of
a failure or improper action on the
system.
Check the state of the corresponding
fuse when a device does not work: the

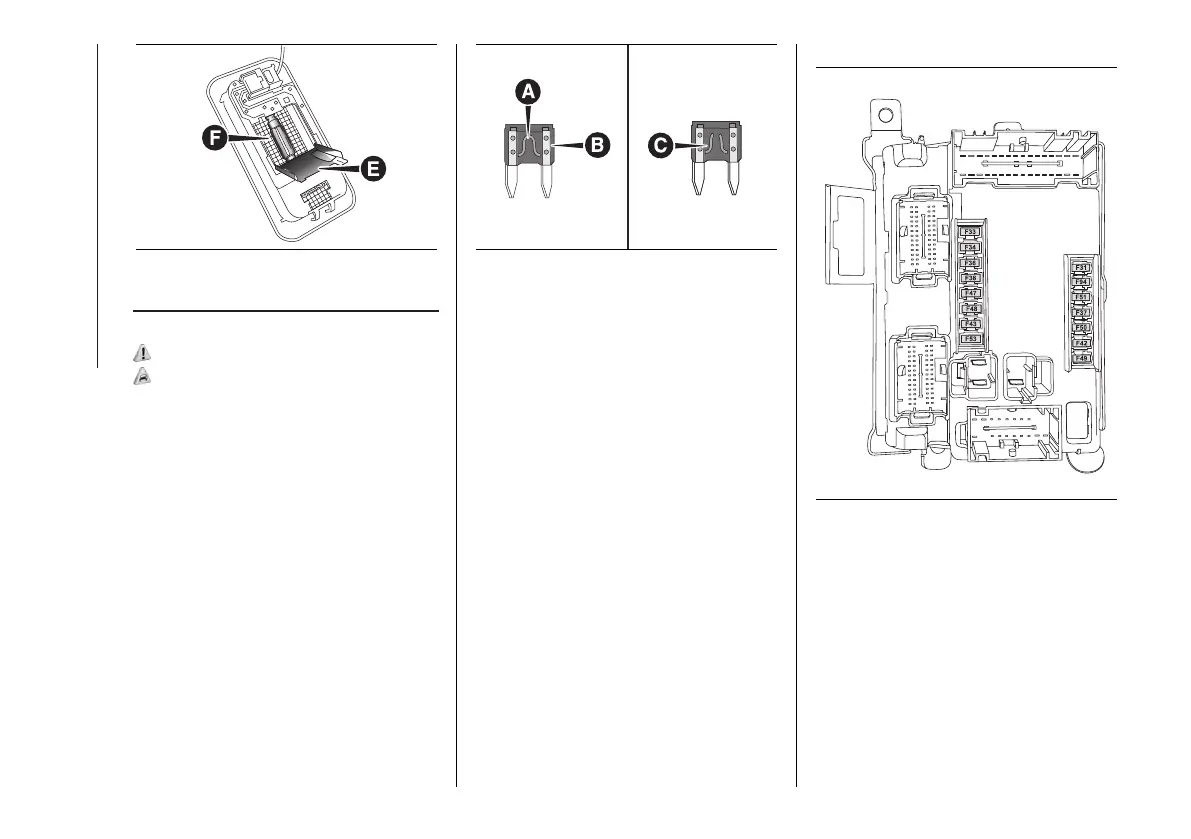

filament (A) fig. 285 should be intact.
If it is not, replace the blown fuse with
another with the same ampere rating
(same colour).
(B) intact fuse.
(C) fuse with damaged filament.
For fuse replacement, contact a Fiat
Dealership.
285 F1A0212
FUSE LOCATION
The vehicle fuses are grouped in three
control units located on the dashboard,
passenger compartment right pillar and
engine compartment.
DASHBOARD FUSEBOX
286 F1A0607
To access the dashboard fusebox
fig. 286, loosen the screws (A) fig. 287
and remove the cover.
