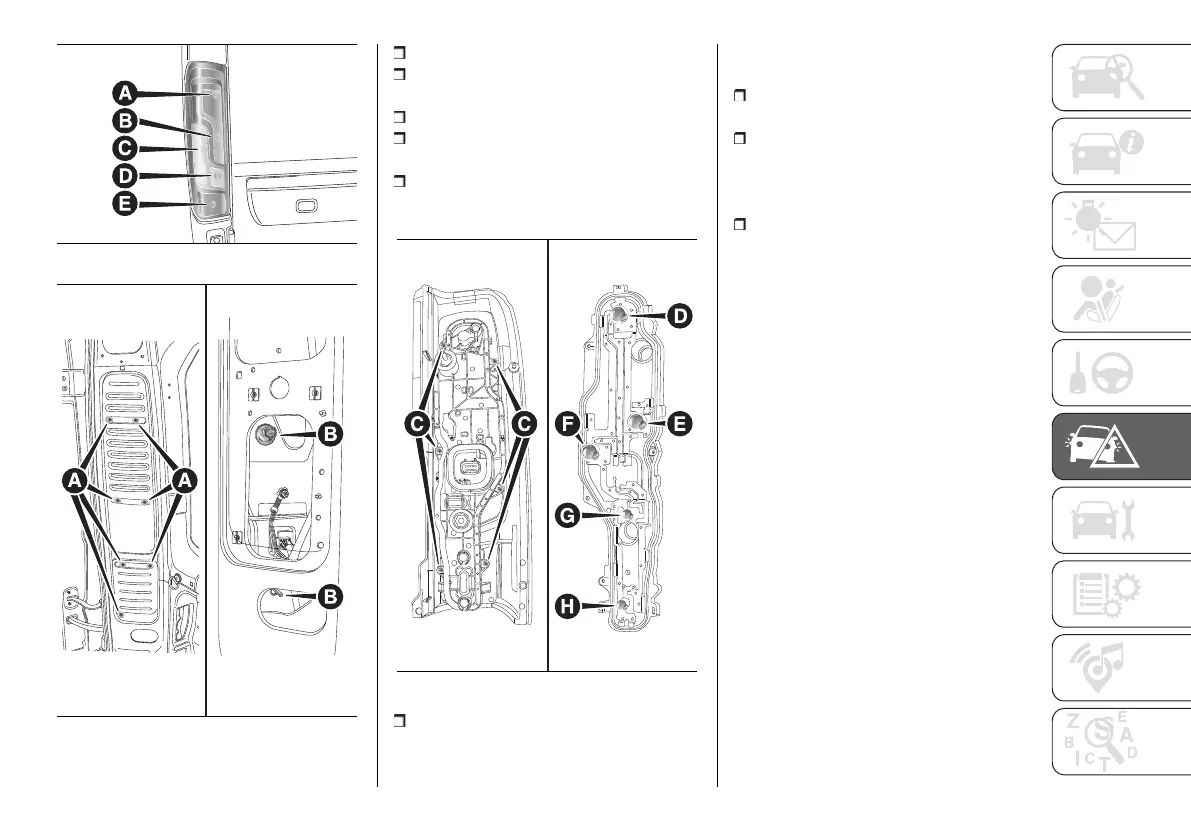

open the rear swing door;
undo the 7 fixing screws (A) of the
plastic cover;
undo the two fixing screws (B);
extract the unit outwards and
disconnect the electrical connector;
unscrew the screws (C) using the
screwdriver provided and remove the
bulb holder;
276 F1A0320
remove the bulb to be replaced (D),
(E), (F) pushing it slightly and turning
it anticlockwise (bayonet mount) and
replace it; extract the bulb (G), (H)
pulling it outwards;
refit the bulb holder and tighten the
screws (C);
reconnect the electrical connector,
correctly reposition the unit on the
body of the vehicle and then tighten the
fixing screws (B);
refit the plastic cover fastening it with
the 7 fixing screws (A).
