SECTION 4 – SYSTEM INSTALLATION
Page 6 of 21 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715

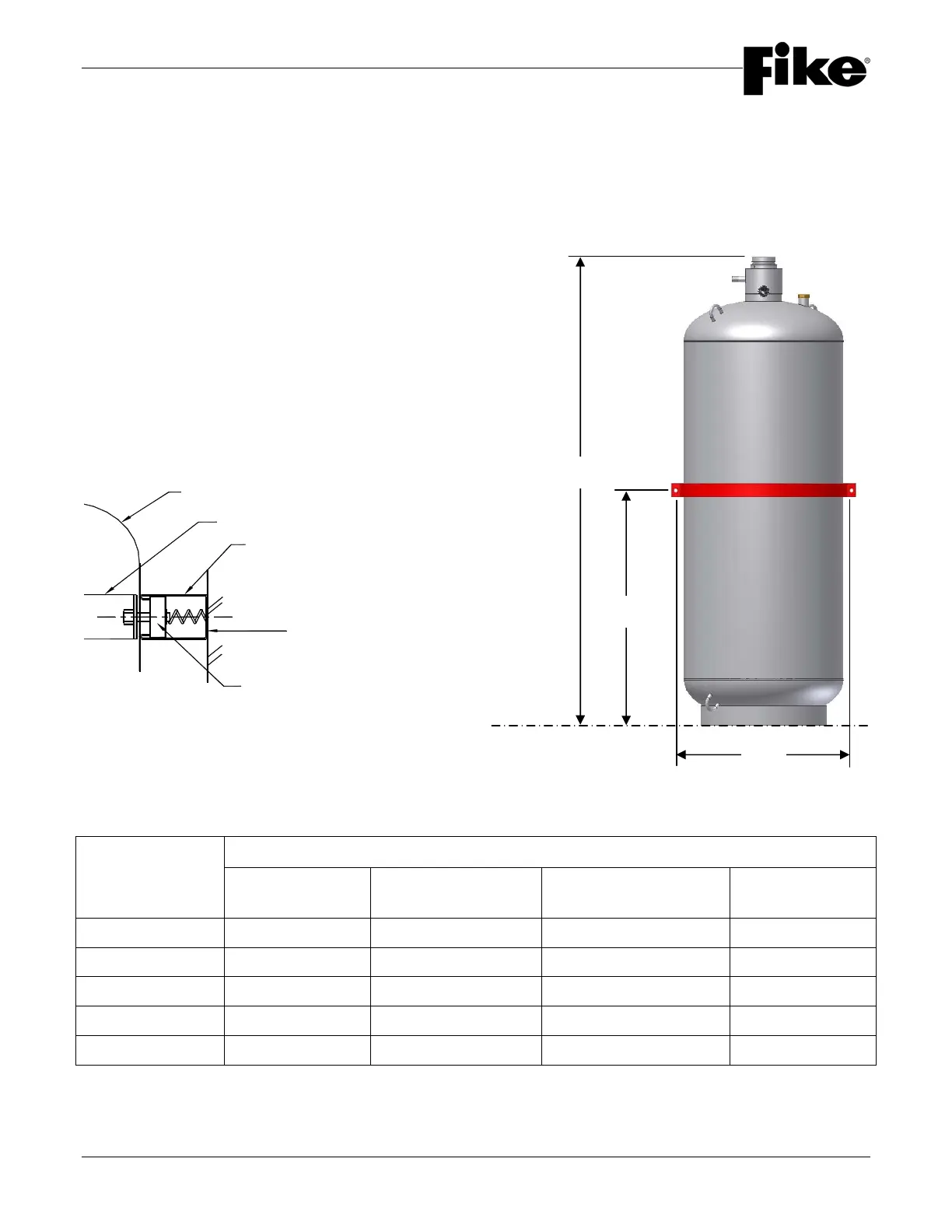

4.1.3 MOUNTING DETAILS FOR VERTICAL (UPRIGHT) CONTAINERS, P/N 70-153, 70-153T, 70-154,
70-154T, 70-155, 70-155T, 70-156, 70-156T, 70-157 & 70-157T
100, 215, 375, 650 & 1000 lb. (44, 87, 153, 267 & 423 L) Containers are supplied with mounting straps that must
be anchored to a wall or other suitable surface. Typical mounting is accomplished by anchoring Unistrut channel
to the wall and securing the mounting straps to the Unistrut as shown.
All containers must be mounted in the upright (valve up) position
on a solid, load-bearing surface such as a floor. DO NOT mount
these containers in the horizontal position.
UNISTRUT NUT, BOLT AND
WASHER (BY OTHERS)
P1000 UNISTRUT CHANNEL
(BY OTHERS)
MOUNTING STRAP
WALL
CONTAINER
Dimension
Container Size
A
B
w/ Welded Valve
B
w/ Threaded Valve
C
100 lb. (44 L) 14” (356 mm) 38-3/4” (984 mm) 40-3/4 (1035 mm) 20” (508 mm)
215 lb. (87 L) 21-3/4” (552 mm) 28-7/8” (733 mm) 29-1/4” 9743) 12” (305 mm)
375 lb. (153 L) 21-3/4” (552 mm) 42-1/2” (1080 mm) 42-1/2” (1080 mm) 26” (660 mm)
650 lb. (267 L) 26” (660 mm) 48-3/4” (1238 mm) 49” (1245) 28” (711 mm)
1000 lb. (423 L) 26” (660 mm) 70” (1778 mm) 71” (1803) 40” (1016 mm)
ALL DIMENSIONS ARE APPROXIMATE
Mounting Strap Detail
A
B
Floor
C
