SECTION 1 – EQUIPMENT
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 9 of 25
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010

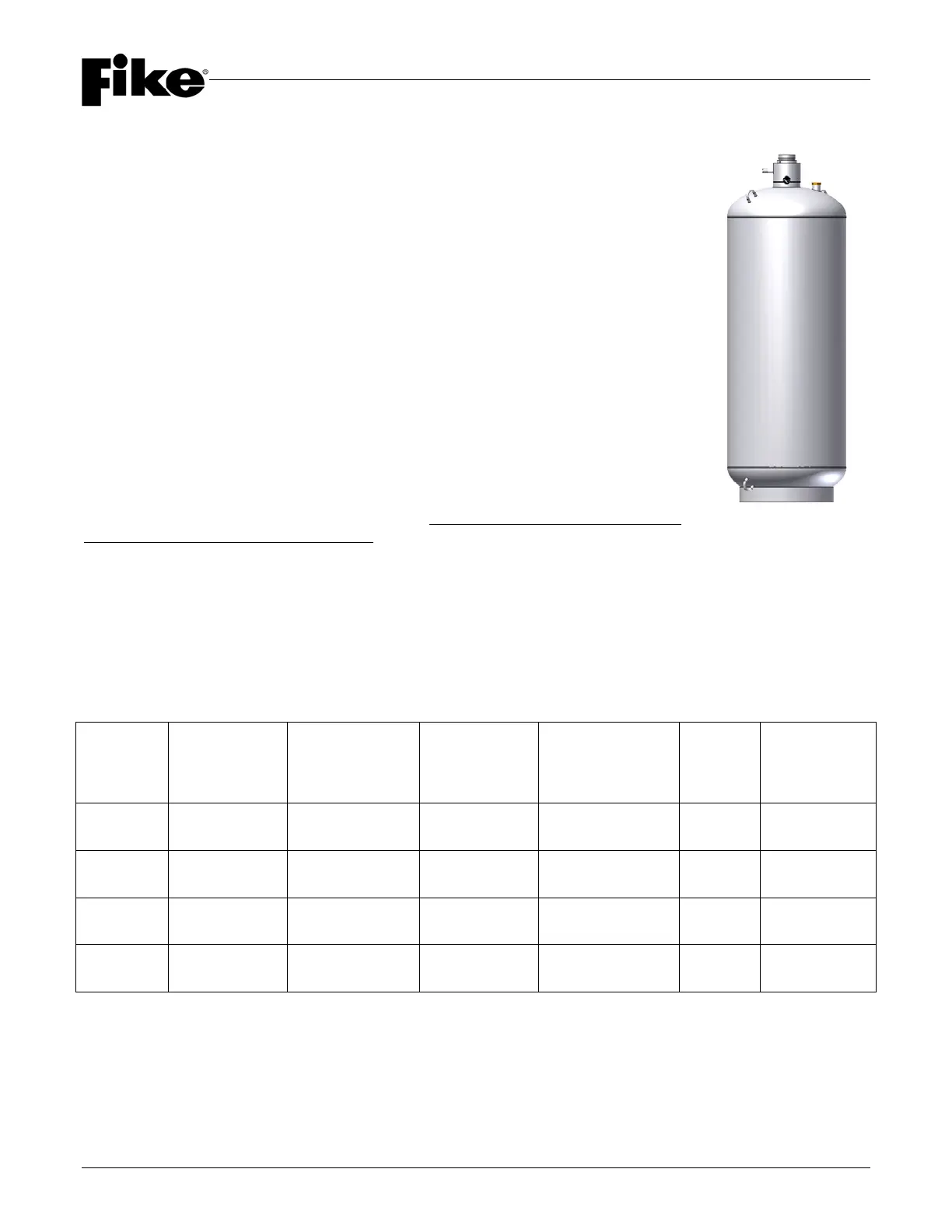

1.5.4 CONTAINERS W/ 3” (80 mm) VALVES
Large capacity HFC-227ea Containers are available in the following sizes (capacities):
215, 375, 650 and 1000 lb. (87, 153, 267 and 423 L). Each of these containers utilize a
3” NPT (80 mm) discharge outlet valve, consisting of a 3” (80 mm) rupture disc assembly
operated by a Gas Cartridge Actuator (GCA).
All containers are designed and fabricated in accordance with DOT requirements. The
associated rating is 4BW500.
Containers are also available with dual markings that meet the requirement of both DOT
and TC; the associated rating for these containers is 4BW500/4BWM500.
For ordering information, refer to Section 1.9 of this section.
Each container is supplied with a 3” (80 mm) anti-recoil device consisting of a steel baffle
plate with a 1/2” dia. (13 mm) hole drilled through the plate. This allows the container
pressure to safely vent to atmosphere if the discharge valve is activated prior to
installation. The baffle plate is installed in the Grooved Coupling attached to the
discharge outlet valve.
All Large Capacity HFC-227ea Containers MUST be installed in the upright (valve up)
position on the floor. Mounting Straps are supplied with each container, and each must
be anchored to an appropriate load-bearing structure.
Each Large Capacity HFC-227ea Container is equipped with a Liquid Level Indicator
Boss to install the optional Liquid Level Indicator. This device must be installed prior to
filling the container with HFC-227ea agent.
CONTAINER DATA TABLES
Container
Size
Container
Part Number
(w/ Welded Valve)
Container
Part Number
(w/ Threaded Valve)
Fill Range
lbs. (kg)
Mounting
Position
Valve
Size
Approx.
Tare Weight
215 lb.
(87 L)
70-154 70-154T
124.0 – 216.0
(56.5 – 98.0)
Upright (Valve Up)
3” NPT
(80 mm)
155.0 lbs.
(70.3 kg)
375 lb.
(153 L)
70-155 70-155T
217.0 – 378.0
(98.5 – 171.5)
Upright (Valve Up)
3” NPT
(80 mm)
225.0 lbs.
(102.1 kg)
650 lb.
(267 L)
70-156 70-156T
378.0 – 660.0
(171.5 – 299.0)
Upright (Valve Up)
3” NPT
(80 mm)
380.0 lbs.
(172.4 kg)
1000 lb.
(423 L)
70-157 70-157T
598.0 – 1045.0
(271.5 – 474.0)
Upright (Valve Up)
3” NPT
(80 mm)
540.0 lbs
(244.9 kg)
