Fike Clean Agent System - 4.8 Low Pressure Switch

SECTION 4 – SYSTEM INSTALLATION
Page 20 of 21 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715
4.8 LOW PRESSURE SWITCH – P/N 02-9830
To facilitate the connection to the Low Pressure Switch, 1/2” NPT threads are provided. This allows for the
connection of conduit, flexible conduit, seal tight, or similar. Refer to the following details.

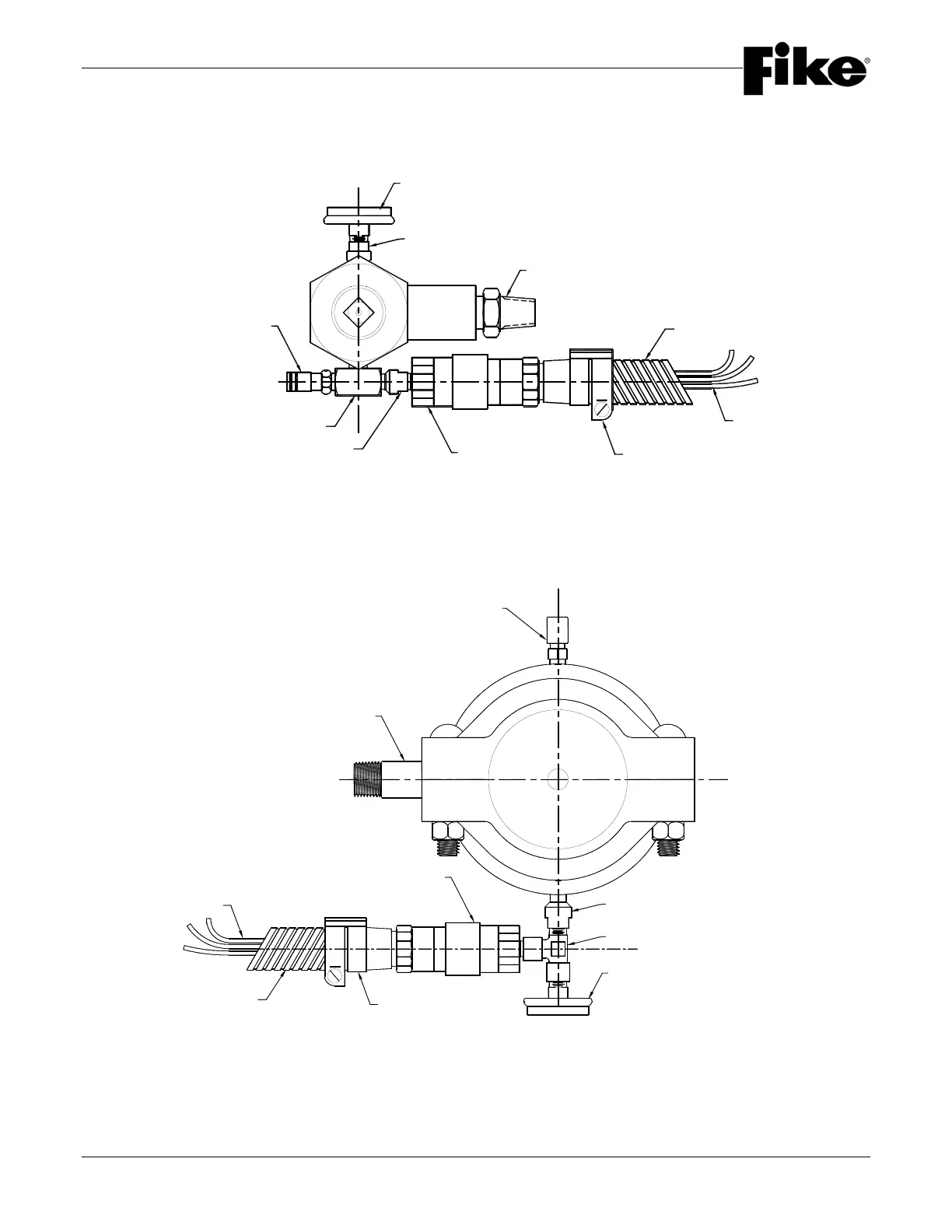

Installation Detail – Top View
For: 20 – 1000 lb. Containers
Assembly P/N: 70-1121
Installation Detail – Top View
10 lb. Container Only
Assembly P/N: 70-1650
WIRE LEADS
FLEXIBLE-RIGID
CONDUIT FITTING
LOW PRESSURE SWITCH
(P/N 02-9830)
PRESSURE
GAUGE
BRANCH TEE
GCA BOSS
FILL VALVE ASSEMBLY
FLEXIBLE CONDUIT
PRESSURE GAUGE ADAPTER
PRESSURE
GAUGE
REMOVABLE GAUGE ADAPTER
GCA BOSS
FLEXIBLE-RIGID
CONDUIT FITTING
WIRE LEAD
S
LOW PRESSURE SWITCH
(P/N 02-9830)
FILL VALVE ASSEMBLY
STREET TEE
FLEXIBLE CONDUIT
PRESSURE GAUGE ADAPTER
