Fike Clean Agent System - 3.4 Layout Piping Network

SECTION 3 – SAMPLE PROBLEM
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 5 of 17
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010
3.4 LAYOUT PIPING NETWORK
Step 1: Layout pipe network and container location(s) on a scaled plan view. While many methods of pipe
routing may exist in any given system, it is best to supply nozzles, or groups of nozzles, from central points along
the trunk line to avoid high degrees of piping imbalance.

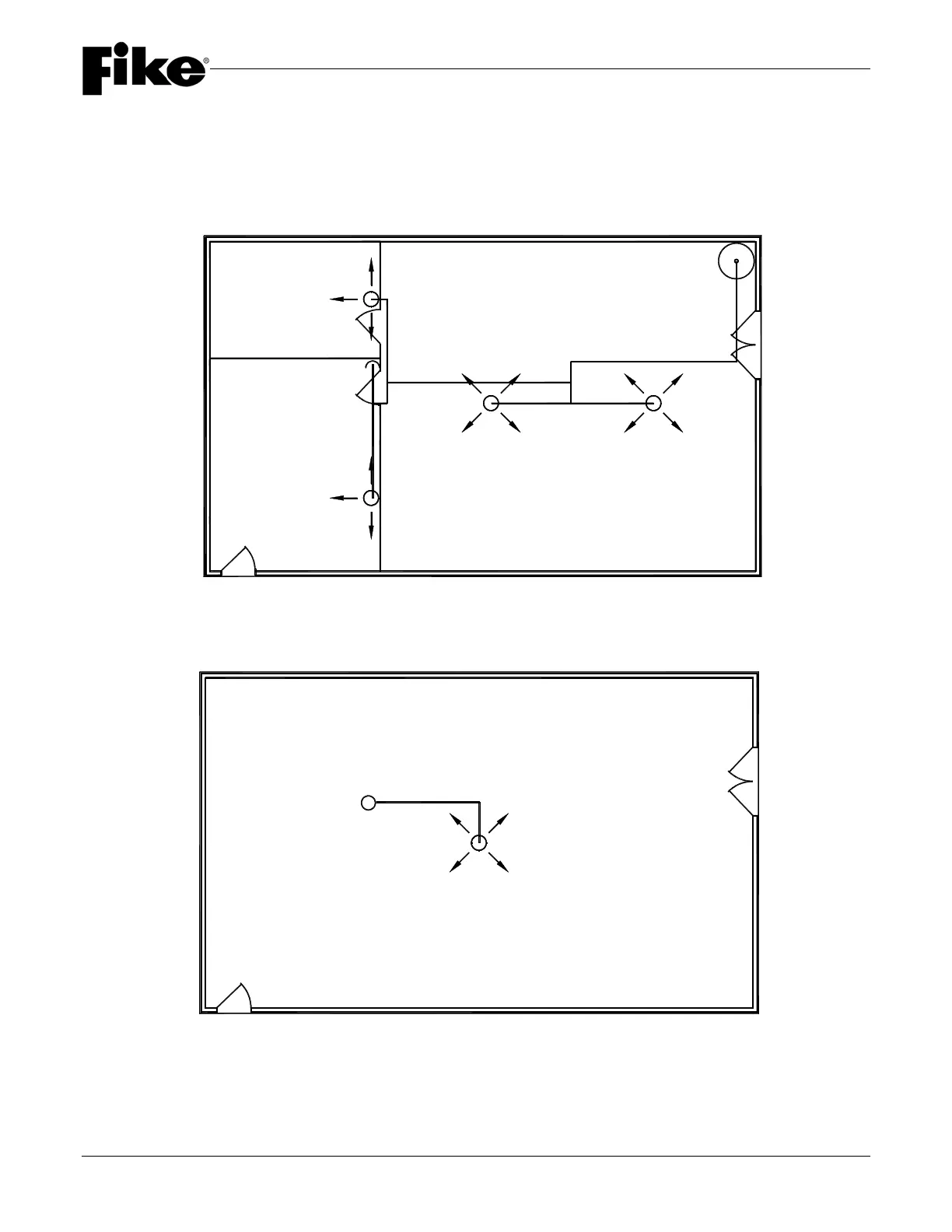

FIGURE 3.4-A
FIGURE 3.4-B
