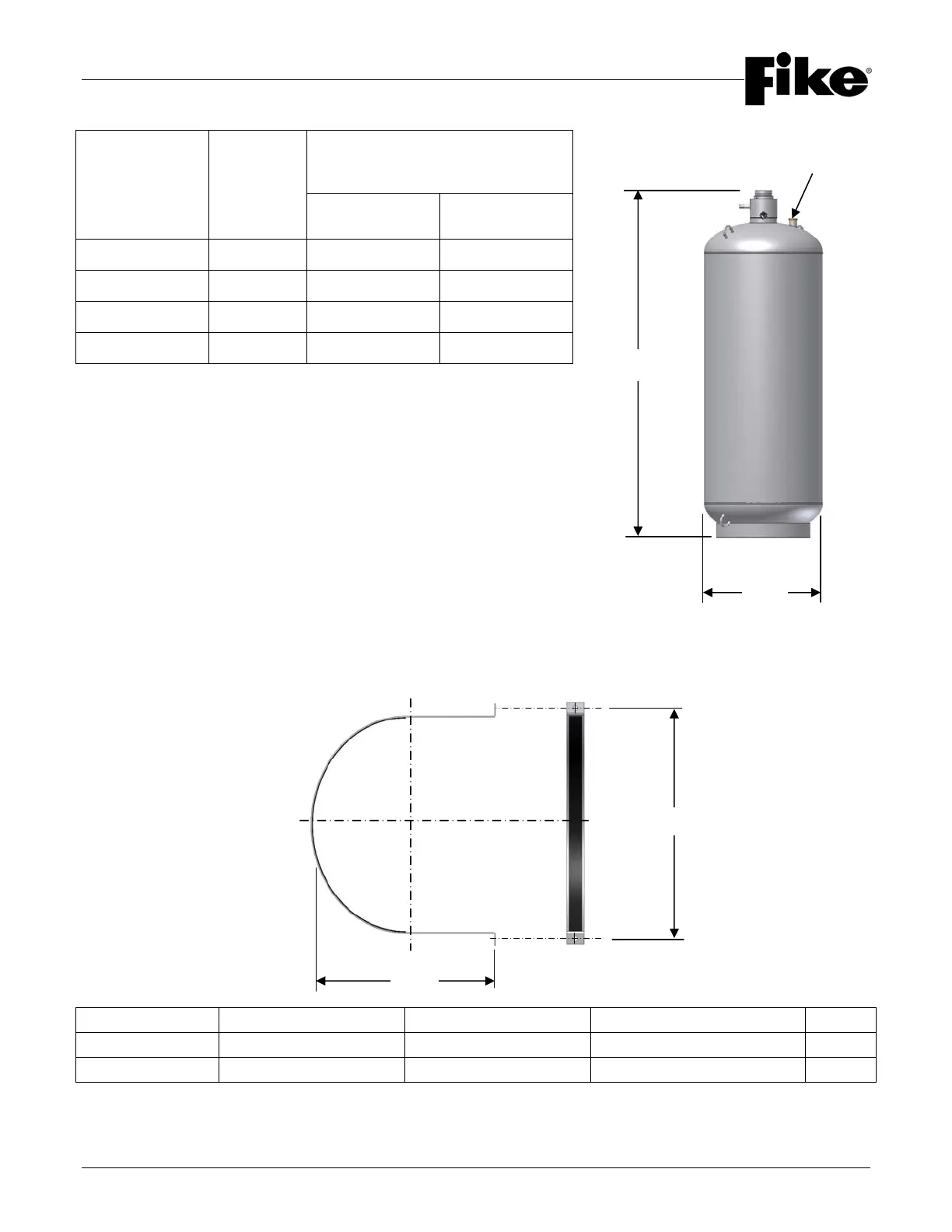

SECTION 1 – EQUIPMENT
Page 10 of 25 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715
Dim. “B”
inch (mm)
Container
Size
Dim. “A”
inch (mm)
Container w/
Welded Valve
Container w/
Threaded Valve
215 lb. (87 L) 20” (508) 28-7/8” (733) 29-1/4” (743)
375 lb. (153 L) 20” (508) 42-1/2” (1080) 42-1/2” (1080)
650 lb. (267 L) 24” (610) 48-3/4” (1238) 49” (1245)
1000 lb. (423 L) 24” (610) 70” (1778) 71” (1803)
NOTE: All dimensions shown are approximate
1.5.4.1 MOUNTING STRAPS
Mounting Straps are used to secure containers to a wall or other suitable mounting surface. These devices are
supplied with each container purchased in accordance with the information shown below.
Part No. “A” “B” Used On Qty.
70-1310 21-3/4” (552 mm) 19-7/8” (505 mm) 70-154 & 70-155 1
70-1384-W 26” (660 mm) 23-7/8” (606 mm) 70-156 &70-157 1
“A”
“B”
“A”
“B”
Liquid Level Boss
