SECTION 1 – EQUIPMENT
Page 16 of 25 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715

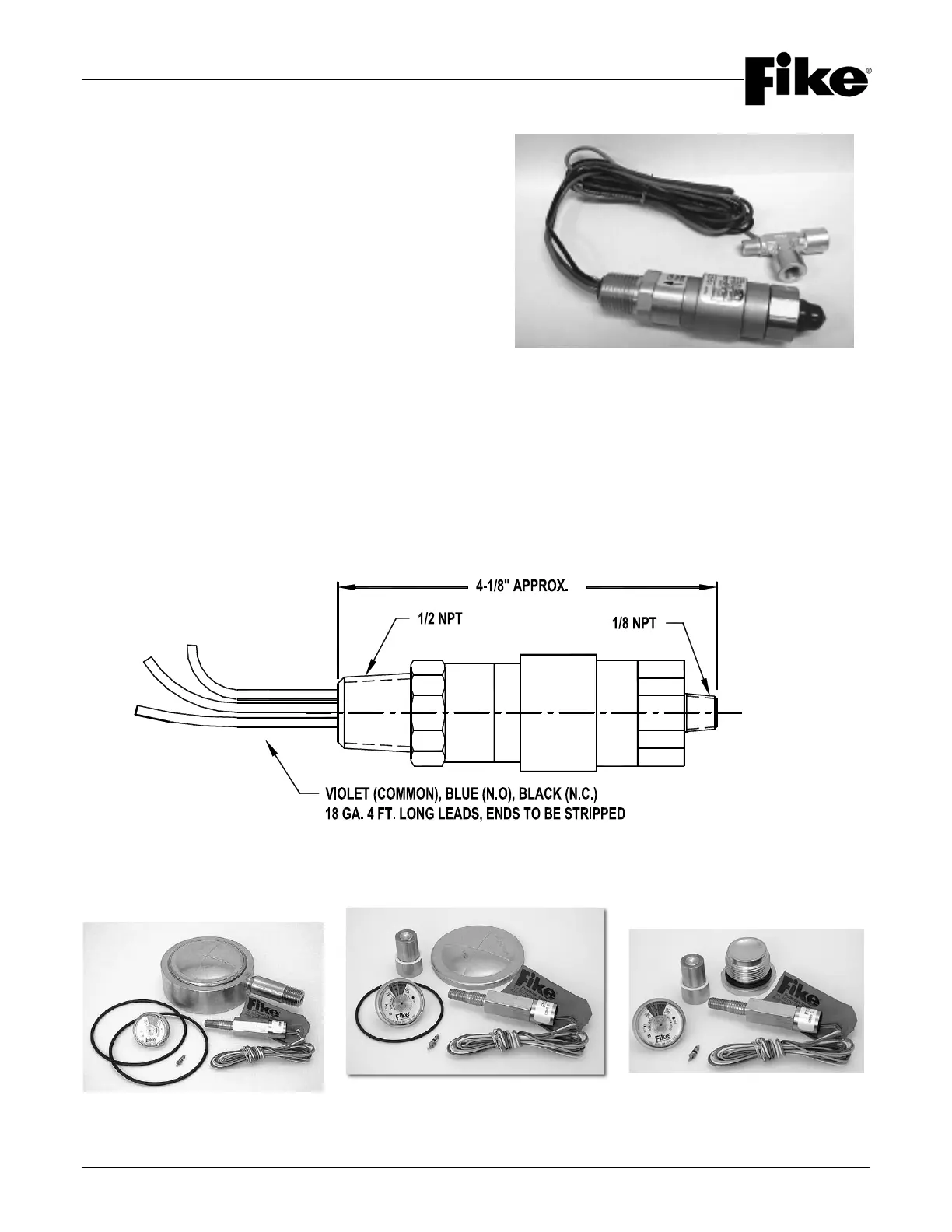

1.8.2 LOW PRESSURE SWITCH
Fike offers an optional Low Pressure Switch for the purpose
of continuously monitoring the container pressure for a low-
pressure condition. If the pressure inside the container
drops below 288 psig (1965 kPa), the switch contacts will
transfer and invoke a “trouble” indication on the control
panel.
The Low Pressure Switch (P/N 02-9830) has a single pole,
double-throw switch that can be wired for normally open or
normally closed shelf states.
Specifications:
Temperature Limits: 32 to 130
o
F (0 to 54.4
o
C)
Enclosure Classification: NEMA 4
Contact Rating: Single pole, double throw; 5 amps resistive, 3 amps inductive
@ 30VDC
Body Material: Aluminum with irridite finish
Weight: 6.5 ounces
Pressure Connection: 1/8” NPT (6 mm)
Electrical Connection: 1/2” NPT (15 mm)
Pressure Setting: 288 psig (20 bar)(decreasing)
1.8.3 RELOAD KITS
After a system discharge, each container valve will need to be reconditioned using the appropriate reload kit
before the container can be recharged.
3” RELOAD KIT 2 ½” RELOAD KIT 1” RELOAD KIT
