SECTION 1 – EQUIPMENT
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 5 of 25
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010
1.5.2 CONTAINERS – 1” (25 mm) VALVE
Containers are available in the following sizes (capacities): 20, 35, 60, and 100 lb. (8.5, 15, 27, and 44 L). Each
of these containers utilize a 1” NPT (25 mm) discharge outlet valve, consisting of a 1” (25 mm) rupture disc
assembly operated by a Gas Cartridge Actuator (GCA).
All containers are designed and fabricated in accordance with DOT 4BW500 requirements. Containers are also
available with dual markings that meet the requirement of both DOT and TC; the associated ratings for these
containers are 4BW500/4BWM500.
For ordering information, refer to Section 1.9 of this section.
Each container is supplied with a 1” NPT (25 mm) anti-recoil device (pipe plug) installed in the adapter nut (outlet)
of the discharge valve. The pipe plug supplied has a 1/8” (4 mm) hole drilled through the plug to allow the
container pressure to vent safely to atmosphere in the event that the discharge valve is activated prior to
installation.

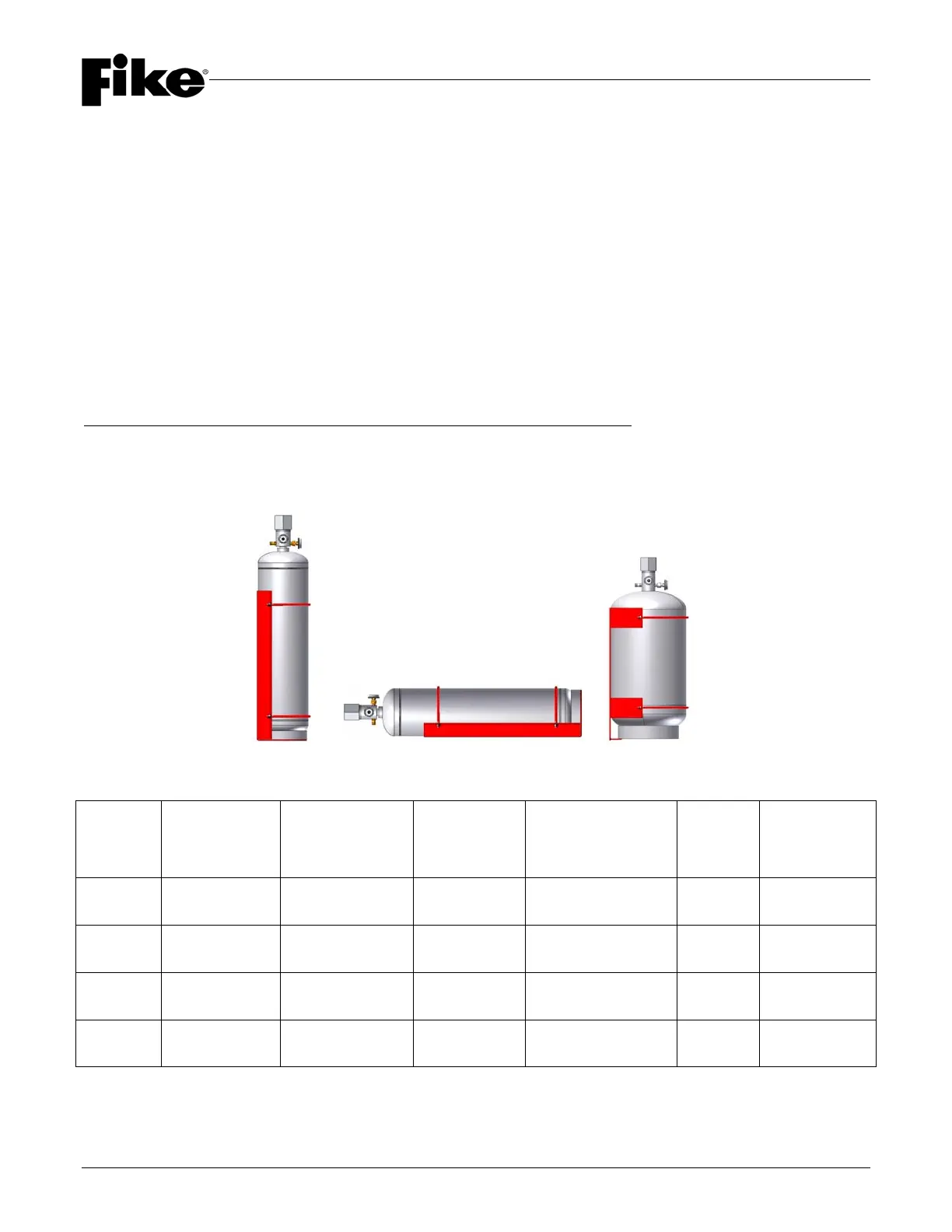

The 20, 35 and 60 lb. (8.5, 15 and 27 L) containers can be mounted in either the horizontal or upright (valve up)
positions.
The 100 lb. (44 L) container MUST be installed in the upright (valve up) position
. Horizontal mounting of the 100
lb. (44 L) container is not allowed. Mounting Brackets are supplied with each container, and each must be
anchored to an appropriate load-bearing structure.
NOTE: The 20 lb. (8.5 L) container (P/N 70-098) is approved for ENGINEERED Systems only.
CONTAINER DATA TABLES
Container
Size
Container
Part Number
(w/ Welded Valve)
Container
Part Number
(w/ Threaded Valve)
Fill Range
lbs. (kg)
Mounting
Position
Valve
Size
Approx.
Tare Weight
20 lb.
(8.5 L)
70-098 70-098T
12.0 – 21.0
(5.5 – 9.5)
Upright - Horizontal
1” NPT
(25 mm)
21.0 lbs.
(9.5 kg)
35 lb.
(15 L)
70-089 70-089T
22.0 – 38.0
(10.0 – 17.0)
Upright - Horizontal
1” NPT
(25 mm)
31.0 lbs.
(14.1 kg)
60 lb.
(27 L)
70-152 70-152T
39.0 – 68.0
(18.0 – 30.5)
Upright - Horizontal
1” NPT
(25 mm)
43.0 lbs.
(19.5 kg)
100 lb.
(44 L)
70-153 70-153T
63.0 – 108.0
(28.5 – 48.5)
Upright (Valve Up)
1” NPT
(25 mm)
61.0 lbs.
(27.7 kg)
