Fike Clean Agent System - Mounting Details 60 Lb. (27 L) Container; Mounting Details for Inverted (Spherical) Containers; Mounting Details 125 Lb. (51 L) Container

SECTION 4 – SYSTEM INSTALLATION
Page 4 of 21 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715
4.1.2 MOUNTING DETAILS FOR INVERTED (SPHERICAL) CONTAINERS
125 & 215 lb. (51 & 90 L) Inverted Containers are supplied with mounting brackets that must be secured to a
solid, load-bearing wall. These containers DO NOT have siphon tubes; therefore, they MUST be mounted in the
inverted (valve down) position.
Additional hardware such as the optional backing/mounting straps (P/N 70-1119) is required when mounting
Inverted Containers to porous block walls. For this application, the anchor bolts must run through the wall and
through the backing/mounting brackets on the opposite side to provide structural integrity.
An optional Floor Mounting Kit is available for both container sizes. When using this option, the floor mounting kit
must be anchored to a solid, load-bearing floor or similar surface.

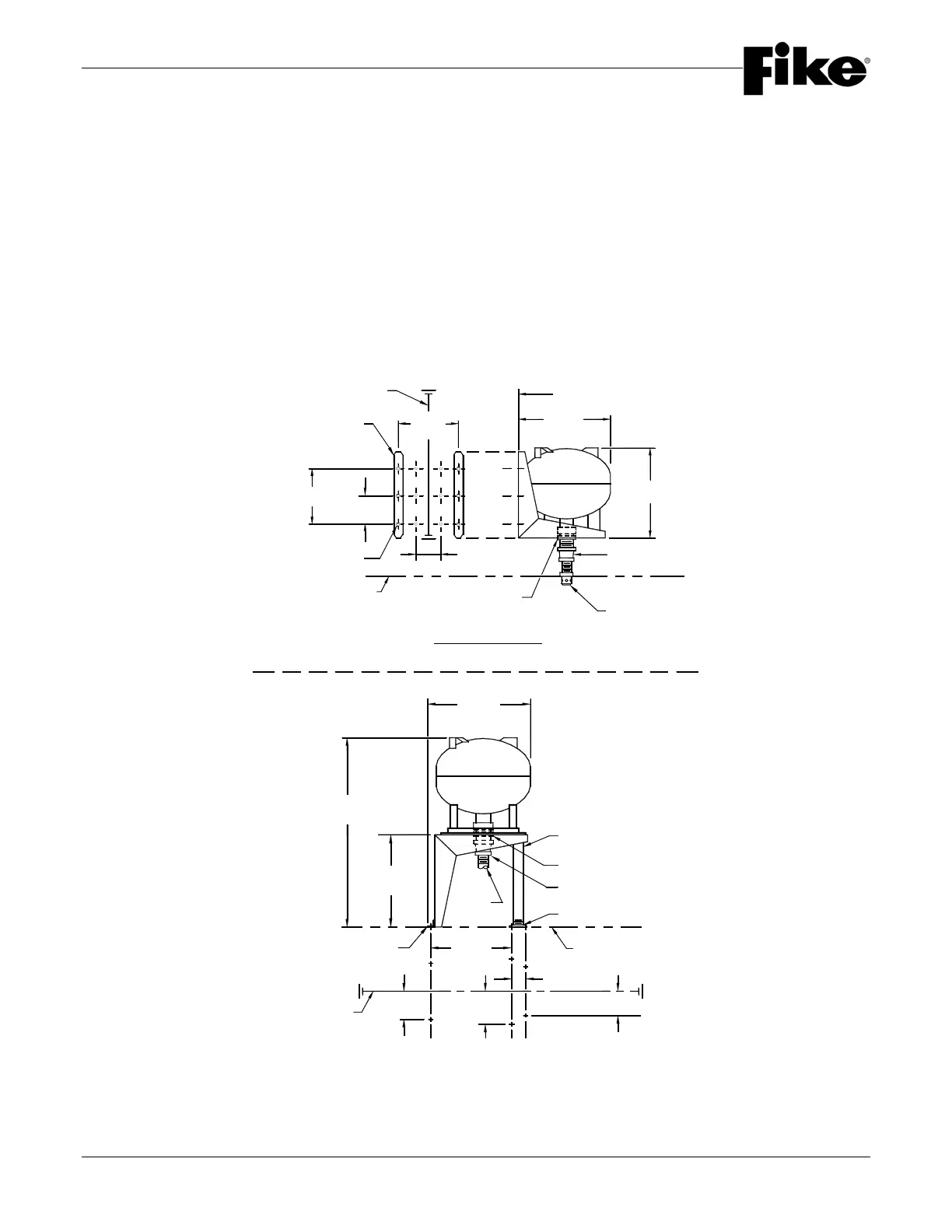

4.1.2.1 MOUNTING DETAILS FOR: 125 lb. (51 L) CONTAINER, P/N 70-041
ALL DIMENSIONS ARE APPROXIMATE
(133 mm)
5 1/4"
1 1/2" NPT PIPE CUT TO
18 3/8" (467 mm) LONG
VICTAULIC COUPLING
SCH. 40
MOUNTING SURFACE
(65 mm x 50 mm)
NOZZLE
2 1/2" x 2" REDUCER
WALL MOUNTING SURFACE
19 1/2"
(495 mm)
ANGLE IRON BRACE
39 3/4" (1010 mm)
DRILL PATTERN
C
L
APPROX.
(197 mm)
(152 mm)
6"
7 3/4"
(419 mm)
16 1/2"
2 1/2" (64 mm)
DRILL PATTERN
C
L
(203 mm)
1/2" (15 mm) STUD AND
FALSE CEILING
NUT (TYP.)
(REF.)
(406 mm)
16"
P/N 70-1119 MOUNTING
STRAP, (IF REQ'D.)
8"
(572 mm)
WALL MOUNT DETAIL
VICTAULIC COUPLING
22 1/2"
(165 mm)
6 1/2"
(368 mm)
14 1/2"
(521 mm)
20 1/2"
(514 mm)
20 1/4"
PIPING
1 1/2' NPT FLOOR FLANGE
BELL REDUCER
