SECTION 4 – SYSTEM INSTALLATION
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 3 of 21
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010

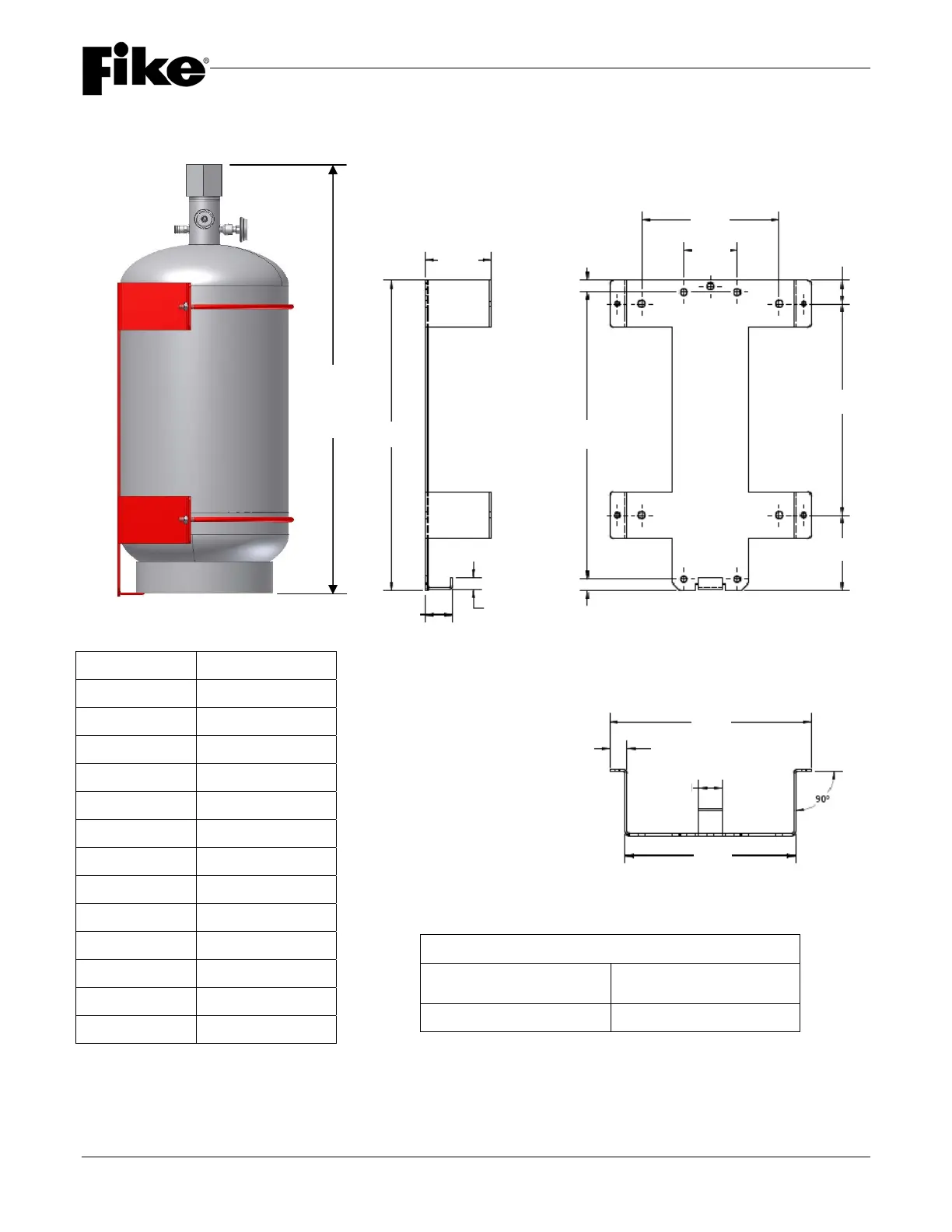

4.1.1.2 MOUNTING DETAILS FOR 60 lb. (27 L) CONTAINER, P/N 70-152 & 70-152T
ALL DIMENSIONS ARE APPROXIMATE
Dimensions Inch (mm)
A 4 ¼ (108)
B 20 (508)
C 1 ¾ (44)
D ¾ (19)
E 9 (229)
F 3 ½ (89)
G 18 ½ (470)
H 1 ½ (38)
I 13 5/8 (346)
J 4 7/8 (124)
K 13 3/16 (335)
L 11 5/32 (283)
M 1 5/32” (29)
Overall Height – 60 lb. Container
w/ Welded Valve
in (mm)
w/ Threaded Valve
in (mm)
28 (711) 29-1/4 (743)
A
B
C
D
D
G
D
J
K
L
M
H
H
I
F
E
Side View
Front View
Bottom View
See
Overall
Height
Table
