SECTION 4 – SYSTEM INSTALLATION
Page 2 of 21 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715

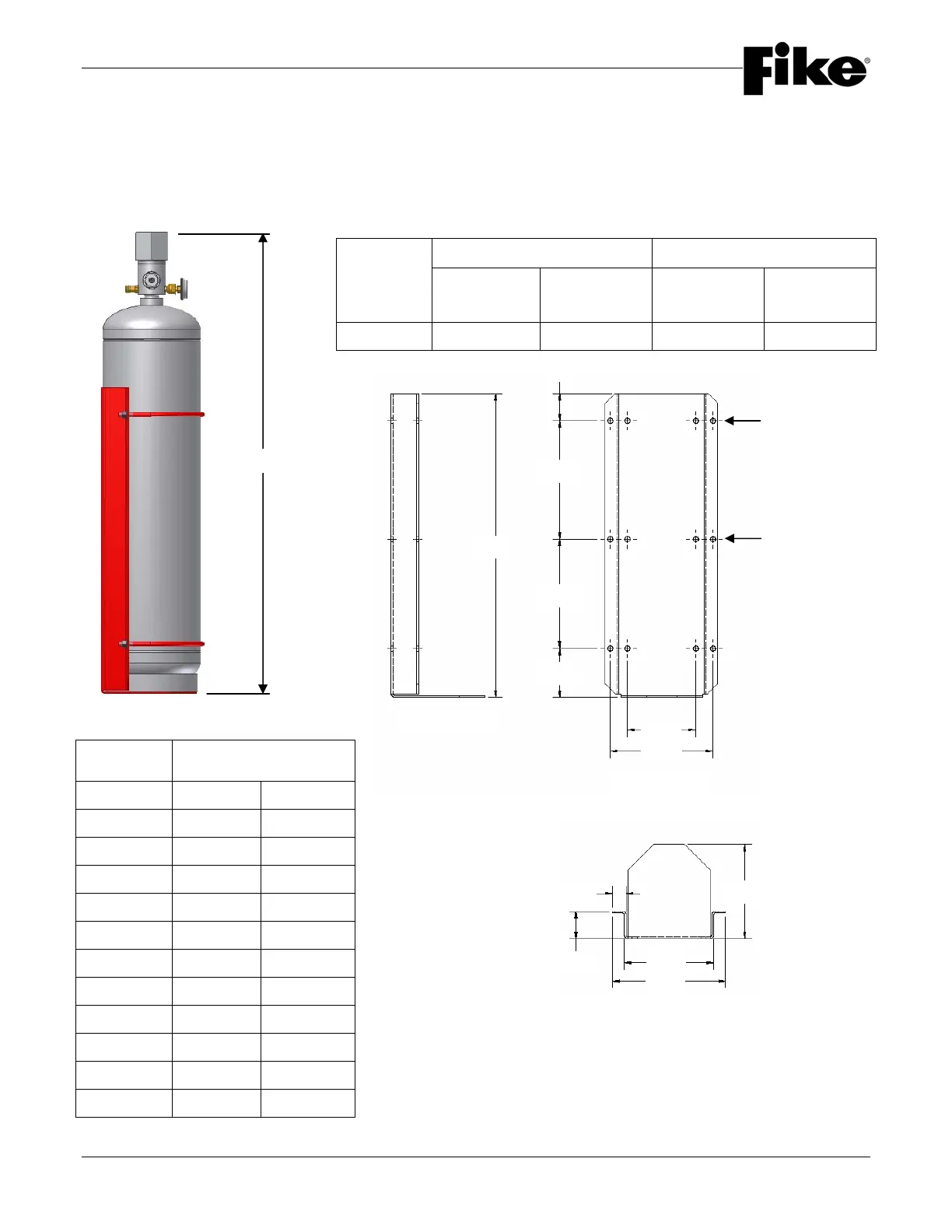

4.1.1.1 MOUNTING DETAILS FOR 20 lb. AND 35 LB. (8.5L & 15L) CONTAINER
P/N 70-098, 70-098T, 70-089 AND 70-089T
IMPORTANT NOTE: When mounting the 20 lb. or 35 lb. containers in the horizontal positions (wall mount or
sub-floor mount), the container pressure gauge MUST point up.
20 lb. Container
35 lb. Container
Dimension
w/ Welded
Valve
in (mm)
w/ Threaded
Valve
in (mm)
w/ Welded
Valve
in (mm)
w/ Threaded
Valve
in (mm)
A 21-1/2 (546) 23-1/2 (597) 32-1/2 (826) 35 (889)
Dimension
(in) (mm)
B 22-9/32 566
C 7-1/2 191
D 5 127
E 2 51
F 8-11/16 221
G 8 203
H 3-19/32 91
I 8-7/32 209
J 6-1/2 165
K 6-7/8 175
L 2 51
M 1 25
Top U-bolt
location for 20 lb.
container
Top U-bolt
location for 35 lb.
container
Side View
Front View
C
D
H
G
F
E
B
Bottom View
M
L
K
J
I
A
ALL DIMENSIONS ARE APPROXIMATE
