SECTION 1 – EQUIPMENT
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 17 of 25
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010
SEATING SURFACES
ACTUATOR BOSS
VALVE
BODY
7
6
5
4
3
2
1

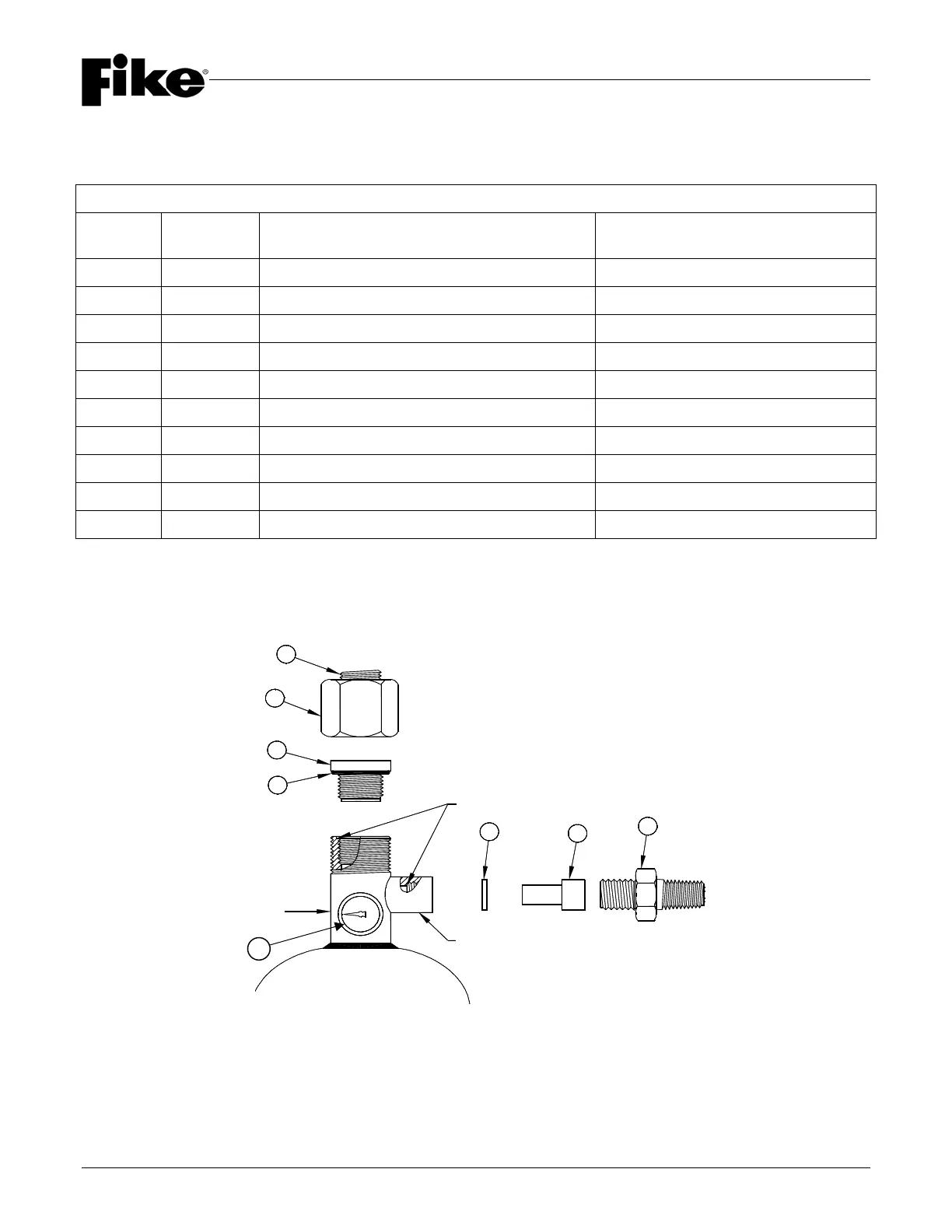

1.8.3.1 RELOAD KIT – 1” VALVE
1” Reload Kit (P/N 85-044-1) is used on the following container sizes: 20, 35, 60, and 100 lb. (8.5, 15, 27 and 44
L). Reload Kit consist of the following items:
RELOAD KIT – 1” VALVE
ITEM
NO.
PART NO. DESCRIPTION NOTE
1 80-1046 Baffle Plug See Note 1
2 80-1034 Adaptor Nut See Note 1
3 70-1049 Rupture Disc See Note 2
4 02-1223 O-Ring See Note 2
5 70-1559 Teflon Washer See Note 2
6 70-1054 Actuator Housing Assembly See Note 2
7 70-1044 Retainer Nut See Note 1
8 02-10279 Pressure Gauge See Note 2
9 02-4134 Gas Cartridge Actuator (GCA) See Note 2 (Item not shown)
10 02-4161 Valve Core See Note 2 (Item not shown)
NOTES: 1. Item furnished with container, not part of 1” Reload Kit, shown for illustration purposes only.
2. Item furnished as part of 1” Reload Kit
8
