Fike Clean Agent System - Floor Mounting Kits

SECTION 1 – EQUIPMENT
Page 8 of 25 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715
*All dimensions shown are approximate

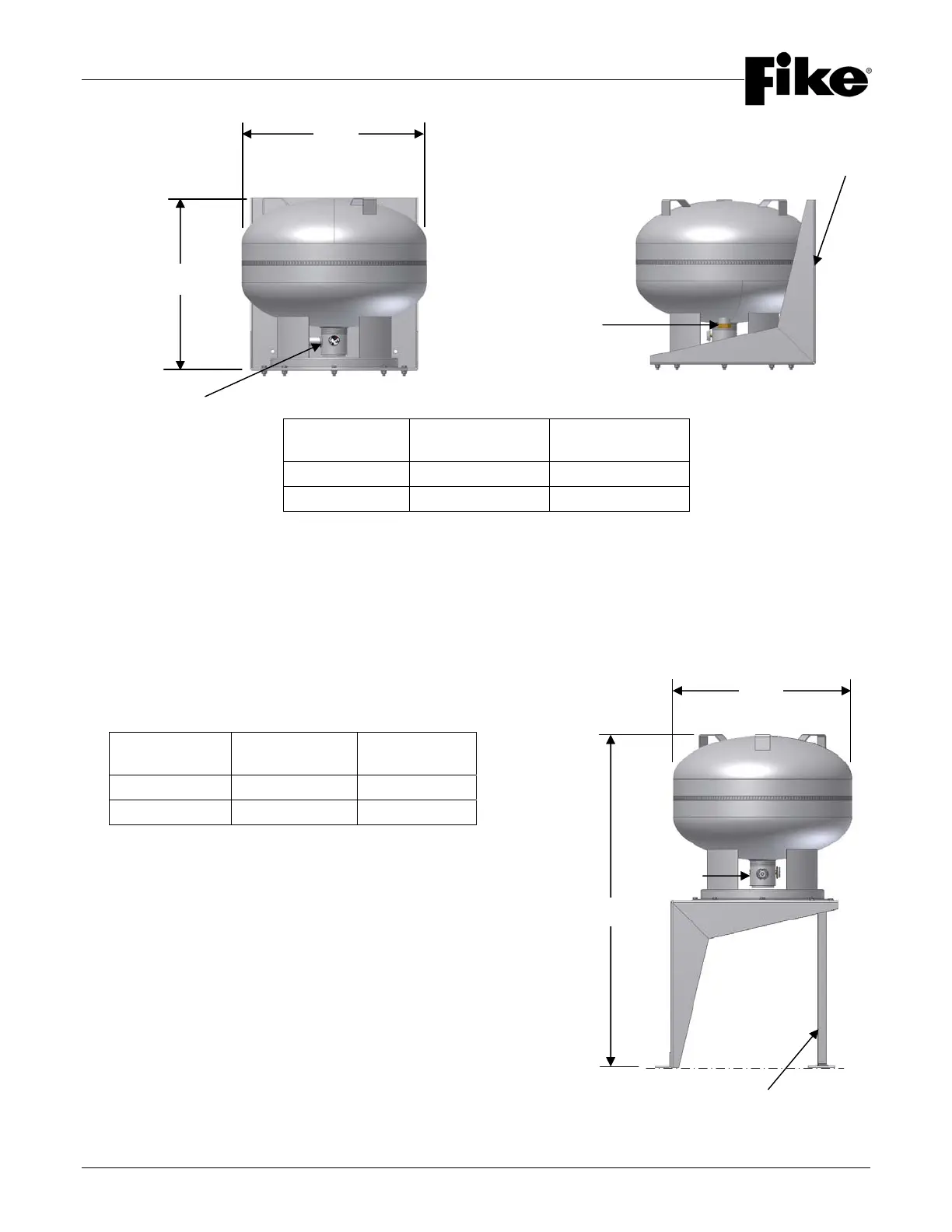

1.5.3.1 FLOOR MOUNTING KIT
An optional Floor Mounting Kit is available for the Inverted Containers that allows the container to be mounted
near the floor. Two kits are available as follows:
 P/N 70-1197 Mounting Bracket – 125 lb. (51 L) Container
 P/N 70-1198 Mounting Bracket – 215 lb. (90 L) Container
All dimensions shown are approximate
Container
Size
Dim. “A”
inch (mm)
Dim. “B”
inch (mm)
125 lb. (51 L) 20” (508 mm) 20-1/4” (515 mm)
215 lb. (90 L) 24” (610 mm) 23-3/4” (605 mm)
Container
Size
Dim. “A”
inch (mm)
Dim. “B”
inch (mm)
125 lb. (51 L) 22-1/2” (572) 39-3/4” (1010)
215 lb. (90 L) 26-1/4” (667) 45-3/4” (1162)
Li
q
uid Level Boss
Mounting Bracket
“A”
“B”
Outlet Valve
“B”
“A”
Mounting Surface
1 ½” (40mm) Pipe
Cut to 18 3/8” (46.67mm) Long
Outlet Valve
