SECTION 2 – DESIGN
Page 36 of 39 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715

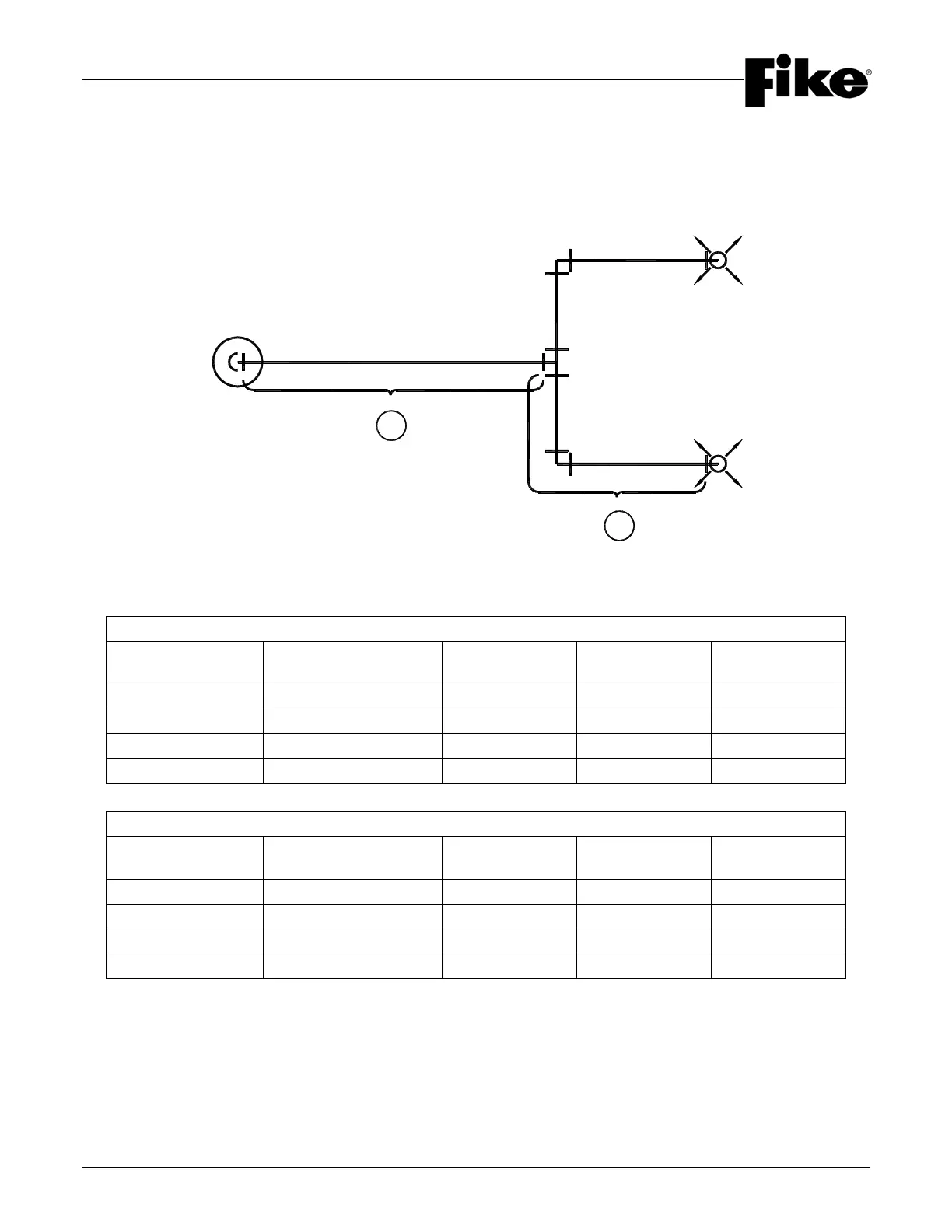

2.11.3.2-B TWO NOZZLE FACTORS TABLE
TPD FACTORS TABLE (ENGLISH)
Pipe Size
Length Factor
90
o
Elbow
Factor
45
o
Elbow
Factor
Bullhead Tee
Factor
1” NPT 1.00 2.80 1.30 5.70
1-1/2” NPT 0.85 3.66 1.70 7.40
2” NPT 0.80 4.40 2.08 8.96
2-1/2” NPT 0.77 5.08 2.39 10.32
TPD FACTORS TABLE (METRIC)
Pipe Size
Length Factor
90
o
Elbow
Factor
45
o
Elbow
Factor
Bullhead Tee
Factor
25 mm 3.28 2.80 1.30 5.70
40 mm 2.79 3.66 1.70 7.40
50 mm 2.62 4.40 2.08 8.96
65 mm 2.53 5.08 2.39 10.32
A
B
