SECTION 2 – DESIGN
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 35 of 39
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January. 2010

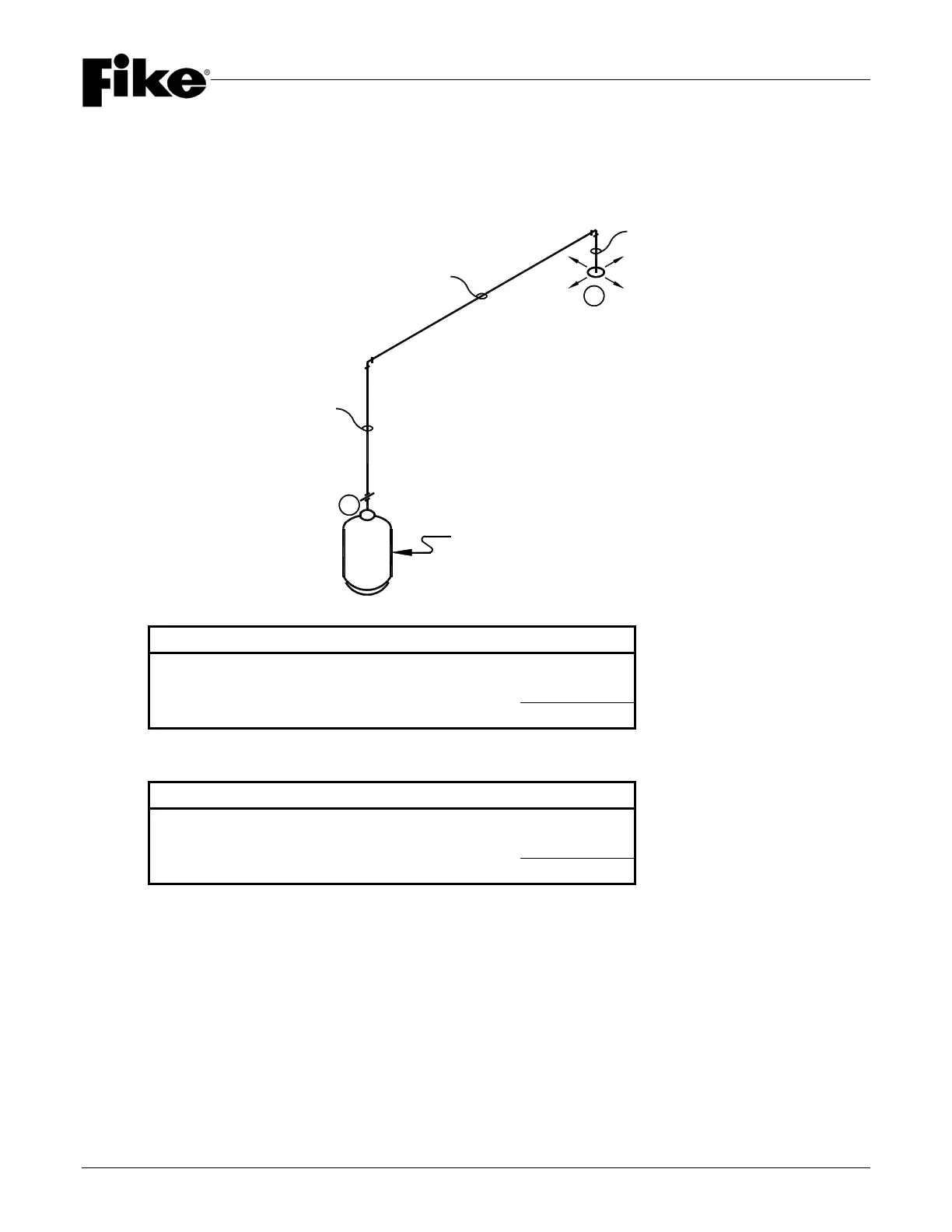

EXAMPLE: SINGLE NOZZLE CONFIGURATION
EXAMPLE (ENGLISH)
Section A - B 35.5’ x 1.00 (1” NPT) = 35.50 (Length Factor)
2 x 2.80 (1” x 90
o
Elbow) = 5.60 (90
o
Elbow Factor)
TPD = 41.10
EXAMPLE (METRIC)
Section A - B 10.82 m x 3.28 (15 mm) = 35.49 (Length Factor)
2 x 2.80 (15 mm x 90
o
Elbow) = 5.60 (90
o
Elbow Factor)
TPD = 41.09
NOTE: TPD MUST be <100> or less.
1" x 10'-0"
(25mm x 3.05m)
1" x 0'-6"
(25mm x .15m)
60LB (27.2kg)
A
B
1" x 25'-0"
(25mm x 7.62m)
