SECTION 2 – DESIGN
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 17 of 39
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January. 2010
2.7.5 NOZZLE DISCHARGE OBSTRUCTIONS
Walls, partitions, equipment racks, and tall equipment can provide area coverage obstructions for nozzle
discharges. For this reason, the discharge “path” of the nozzles must also be taken into account when
determining the quantity of nozzles required.
Anytime that solid obstructions extend to where they could interfere with the “line-of-sight” discharge path from the
nozzle, they should be treated as separate areas. All nozzles should be located in a manner that will provide a
clear discharge path that reaches all of the outer extremes for the protected space.

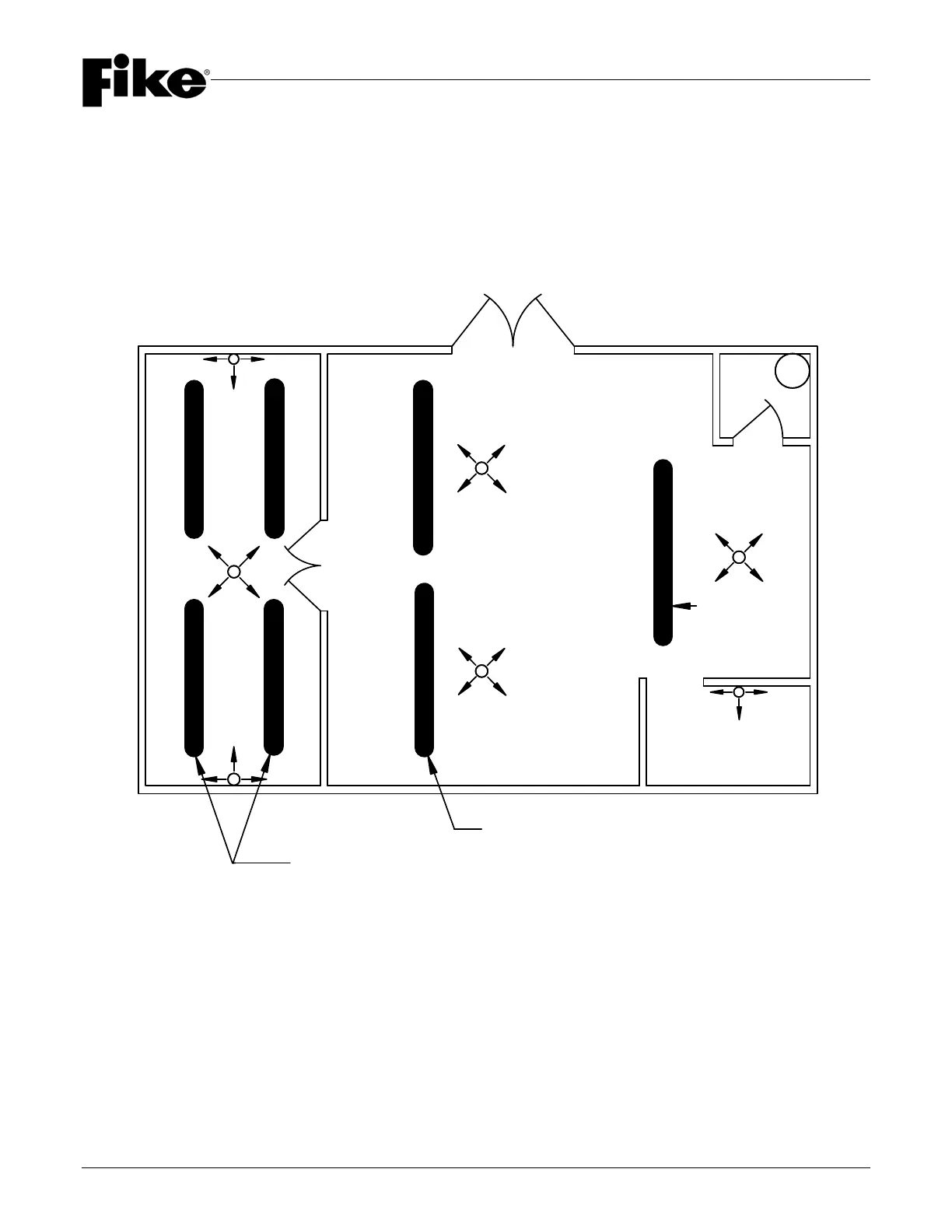

7 FT. (2.13m) HIGH STORAGE RACKS
5 FT. (1.52m) HIGH COMPUTER BANK
8' - 0" (2.44m) CEILING HT.
6.5 FT.(1.98m)
COMPUTER
BANK
HIGH
