Fike Clean Agent System - Reload Kit - 3 Valve

SECTION 1 – EQUIPMENT
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 19 of 25
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010

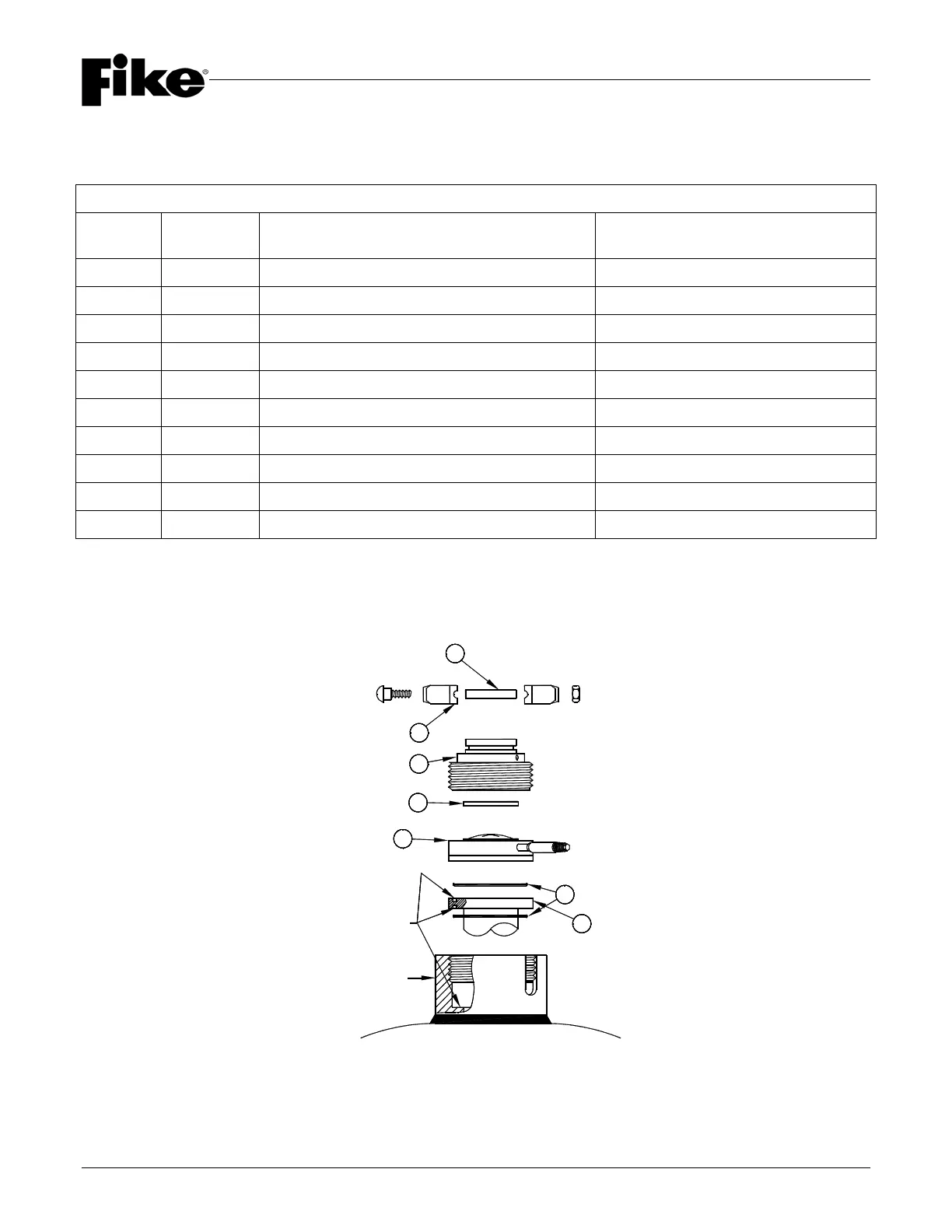

1.8.3.3 RELOAD KIT – 3” VALVE
3” Reload Kit (P/N 85-046-1) is used on the following container sizes: 215, 375, 650, and 1000 lb. (87, 153, 267
and 423 L). Reload Kit consist of the following items:
RELOAD KIT – 3” VALVE
ITEM
NO.
PART NO. DESCRIPTION NOTE
1 70-1294 Baffle Plate See Note 1
2 02-1987 Victaulic Coupling (Style No. 77) See Note 1
3 70-1393 Holddown Nut See Note 1
4 70-1331 Holddown Ring See Note 1
5 70-1661 Rupture Disc See Note 2
6 02-2114 O-Ring See Note 2
7 n/a Siphon Tube Assembly See Note 1
8 02-10279 Pressure Gauge See Note 2 (Item not shown)
9 02-4134 Gas Cartridge Actuator (GCA) See Note 2 (Item not shown)
10 02-4161 Valve Core See Note 2 (Item not shown)
NOTES: 1. Item furnished with container, not part of 3” Reload Kit, shown for illustration purposes only.
2. Item furnished as part of 3” Reload Kit.
SEATING
SURFACES
VALVE
BODY
1
2
3
4
5
6
7
