SECTION 1 – EQUIPMENT
Page 18 of 25 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715
1.8.3.2 RELOAD KIT – 2 1/2” VALVE
2 1/2” Reload Kit (P/N 85-045-1) is used on the following container sizes: 125i and 215i lb. (51 and 90 L). Reload
Kit consist of the following items:

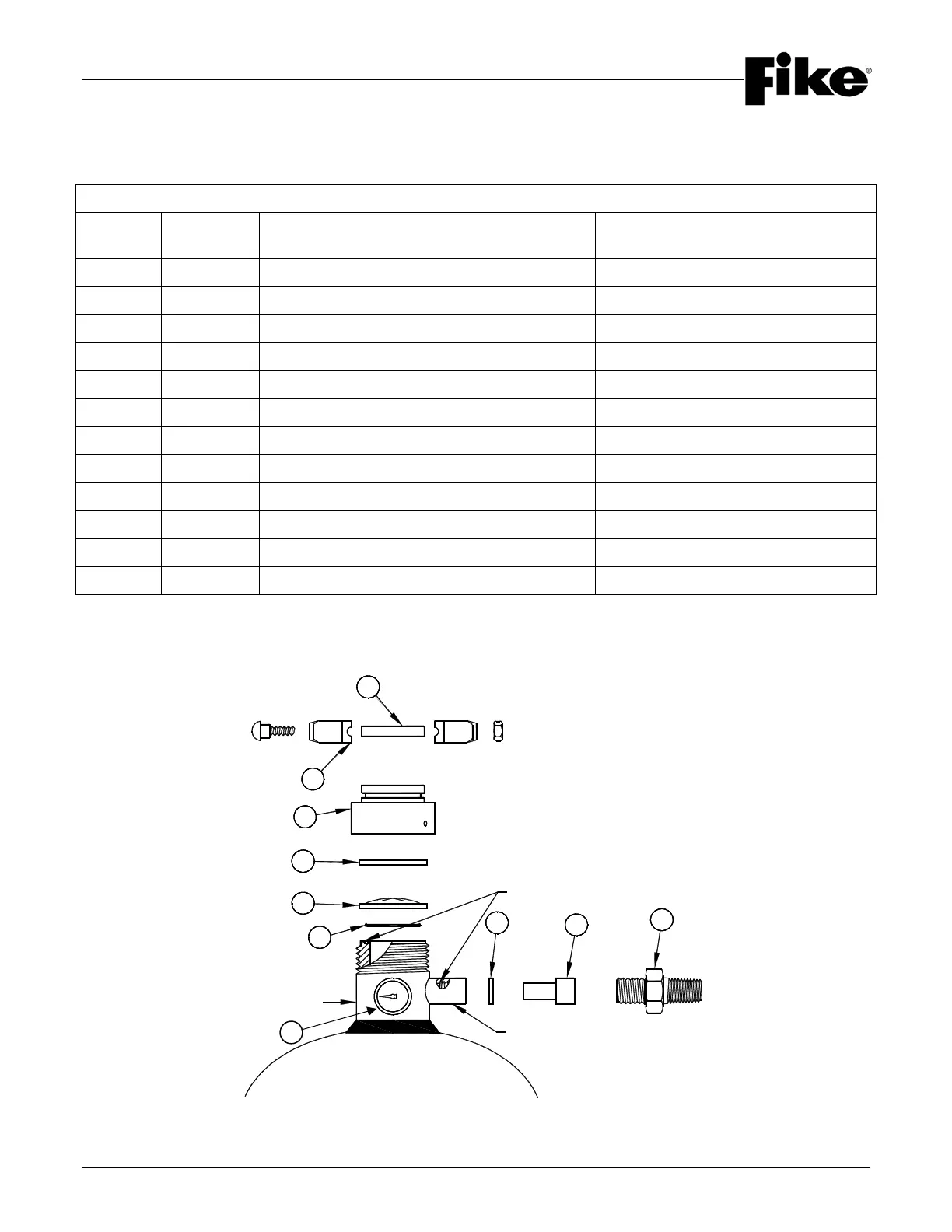

RELOAD KIT – 2 1/2” VALVE
ITEM
NO.
PART NO. DESCRIPTION NOTE
1 70-1123 Baffle Plate See Note 1
2 02-1376 Victaulic Coupling (Style No. 77) See Note 1
3 70-1094 Holddown Nut See Note 1
4 70-1104 Holddown Ring See Note 1
5 D1383-1 Rupture Disc See Note 2
6 02-1375 O-Ring See Note 2
7 70-1059 Teflon Washer See Note 2
8 70-1054 Actuator Housing Assembly See Note 2
9 70-1044 Retainer Nut See Note 1
10 02-10279 Pressure Gauge See Note 2
11 02-4134 Gas Cartridge Actuator (GCA) See Note 2 (Item not shown)
12 02-4161 Valve Core See Note 2 (Item not shown)
NOTES: 1. Item furnished with container, not part of 2 1/2” Reload Kit, shown for illustration purposes only.
2. Item furnished as part of 2 1/2” Reload Kit.
SEATING SURFACES
ACTUATOR BOSS
VALVE
BODY
9
8
7
6
5
4
3
2
1
8
