Fike Clean Agent System - Agent Release Module (ARM); Mounting Hardware for GCA & ARM

SECTION 1 – EQUIPMENT
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 13 of 25
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010

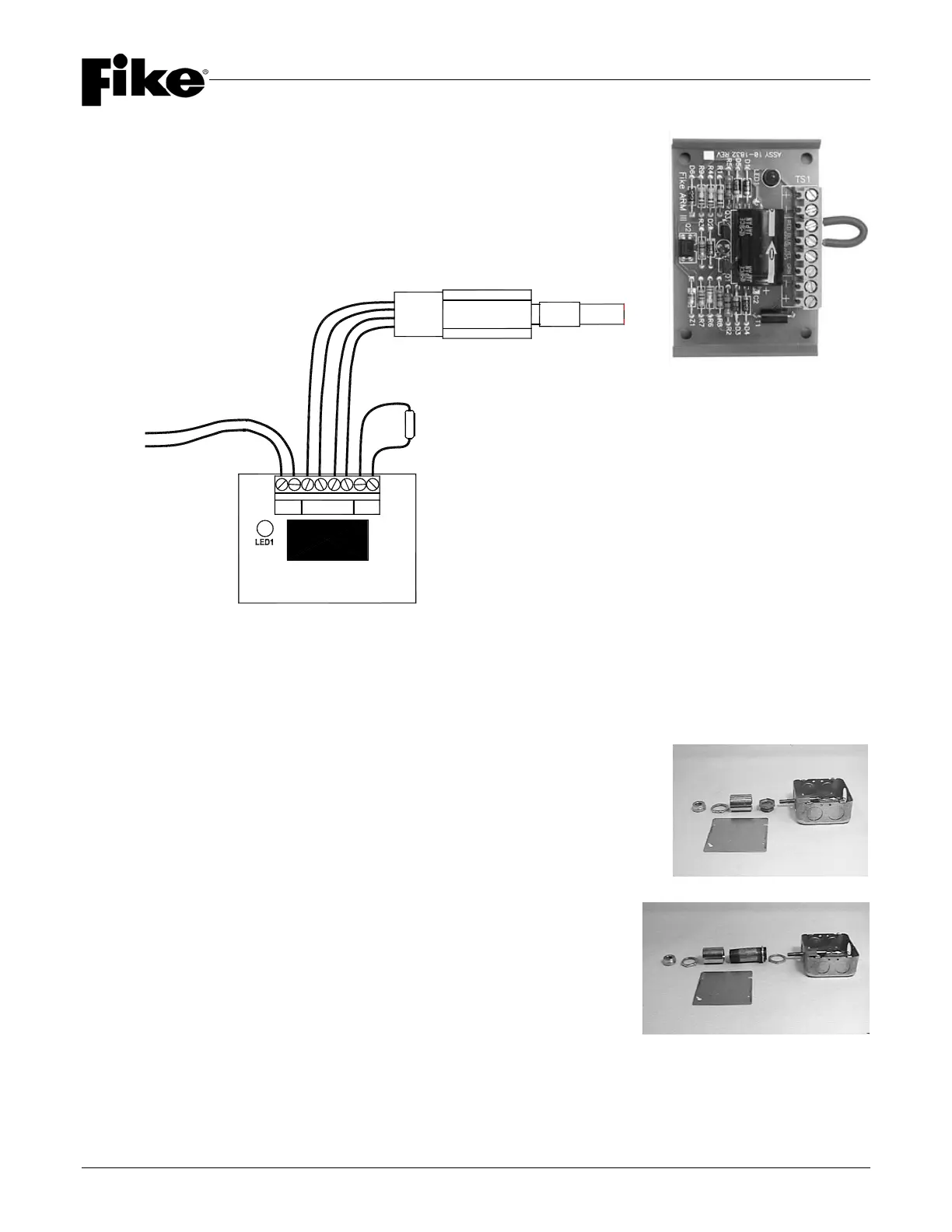

1.6.7 AGENT RELEASE MODULE (ARM)
Fike Containers MUST utilize an Agent Release Module (P/N 10-1832) to
supervise the circuit wiring from the container to the control panel. The ARM also
stores the electrical energy needed to actuate the GCA and open the discharge
outlet valve. Agent Release Modules are wired in parallel in either a two-wire
(Class B), or four-wire (Class A) arrangement with a separate return loop. The
ARM provides the means necessary to fully supervise the agent release circuit for
open and ground fault conditions.
1.6.8 MOUNTING HARDWARE FOR GCA & ARM
Fike supplies the typical electrical/mounting hardware that can be used for the installation of the GCA and ARM to
the Fike discharge valves. For applications requiring longer flex loop connections, rigid pipe connections, etc., the
hardware must be supplied by the installing contractor. For installations with 1” (25 mm) and 3” (80 mm) Valves,
the following components are supplied:
 1” x 1/2” (25 mm x 15 mm) Reducing Conduit Bushing
 1” (25 mm) Lock Nut
 1” (25 mm) Conduit Coupling
 1” NPT (25 mm) Chase Nipple
 4-11/16” (120 mm) Square J-Box w/ 1” NPT (25 mm) knockouts & cover
For installations using 2-1/2” (65 mm) Valves, the following components are
supplied:
 1” x 1/2” (25 mm x 15 mm) Reducing Conduit Bushing
 1” (25 mm) Lock Nut (qty. of 3)
 1” (25 mm) Conduit Coupling
 3-1/2” lg. (89 mm) x 1” NPT (25 mm) Pipe Nipple
 4-11/16” (120 mm) Square J-Box w/ 1” NPT (25 mm) knockouts &
cover
The following part numbers can be used to purchase the components listed
above for retrofit application:
 GCA Junction Box Assembly for 1” – 3” (25 – 80mm) Valves (P/N 70-1697)
 GCA Junction Box Assembly for 2-1/2” (65mm) Valve (P/N 70-1698)
B
L
U
E
RELEASE MODULE (ARM)
END OF LINE RESISTOR
OR TO NEXT AGENT
CAPACITOR
T
S
1
+
-
+
-
G
R
N
R
E
D
Y
E
L
TO CONTROL
PANEL
SQUIB/GCA
BLUERED YELGRN
Fike ARM III
AGENT RELEASE MODULE
P/N 10-1832
GCA CARTRIDGE
