SECTION 1 – EQUIPMENT

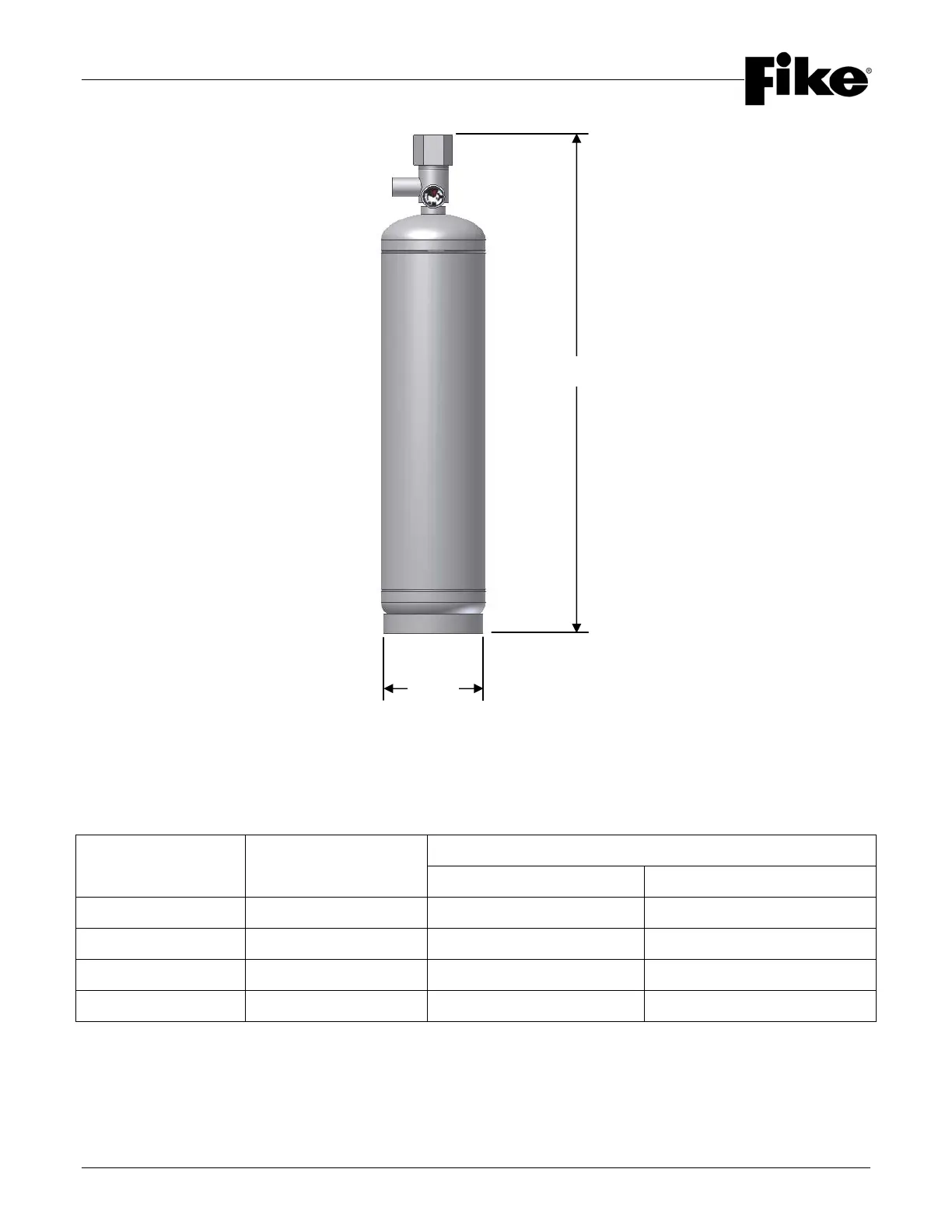

Page 6 of 25 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715
NOTE: All dimensions shown are approximate
Dimension “B”
Container Size Dimension “A”
Container w/ Welded Valve Container w/ Threaded Valve
20 lb. (8.5 L) 7” (178 mm) 21-1/2” (546 mm) 23-1/2” (597 mm)
35 lb. (15 L) 7” (178 mm) 32-1/2” (826 mm) 35” (889 mm)
60 lb. (27 L) 10-3/4” (273 mm) 28” (711 mm) 29-1/4” (743 mm)
100 lb. (44 L) 10-3/4” (273 mm) 38-3/4” (984 mm) 40-3/4” (1035 mm)
“B”
“A”
