SECTION 4 – SYSTEM INSTALLATION
UL / ULC Ex4623 Fike Clean Agent System w/ FM-200™ Page 9 of 21
FM 3010715 Manual P/N: 06-215 (Rev G) Revision Date: January, 2010
NOTE: In the details that follow, Item 1 is a Grooved Coupling that is supplied by Fike with each Large Capacity
Container. Item 2 is a 3” NPT x 4-1/2” (115 mm) long Adapter Nipple. Fike supplies one Adapter Nipple
with each Large Capacity Container; however, two each will be required for manifolded arrangements.

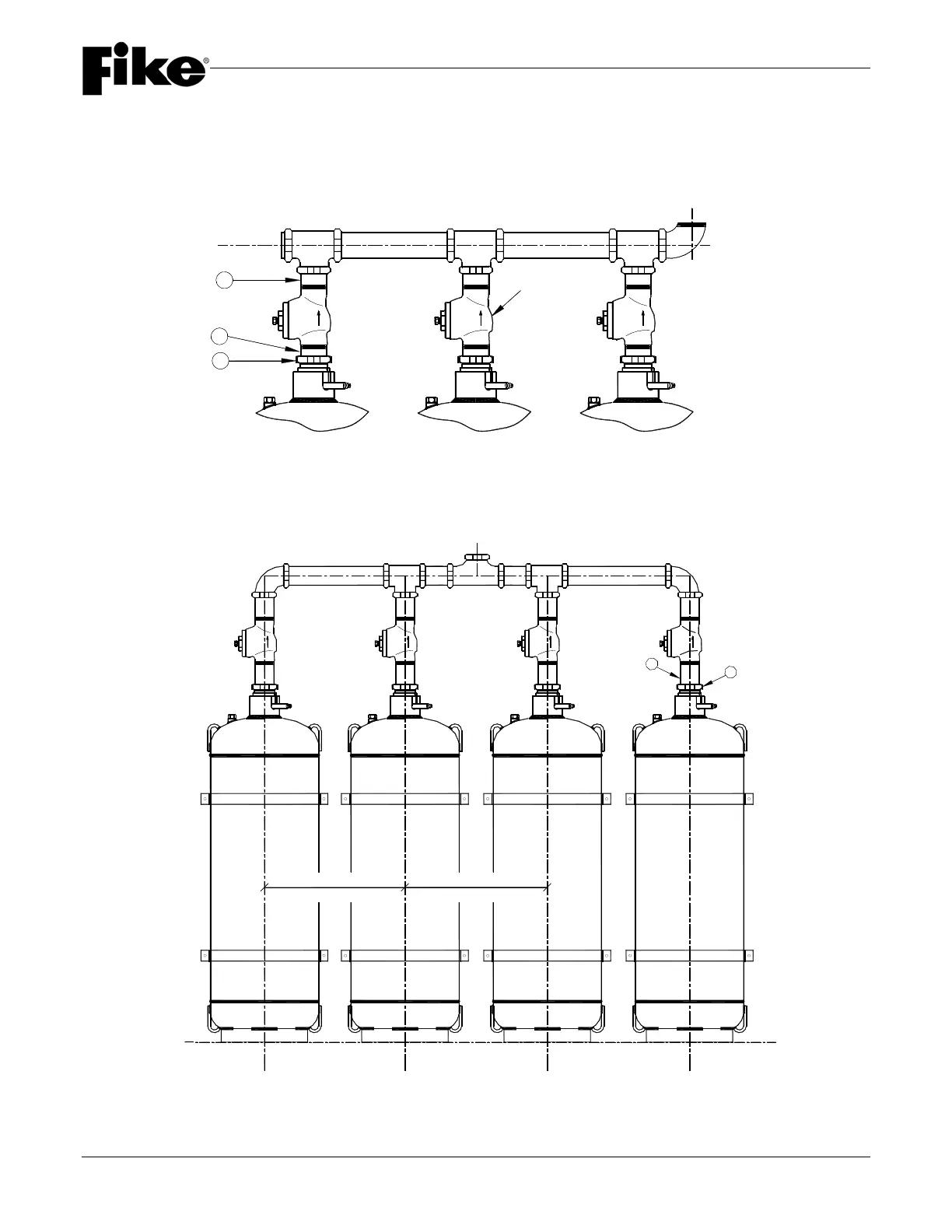

TYPE “A”
End Exit Manifold (Threaded or Grooved)
TYPE “B”
Center Exit Manifold (Threaded or Grooved)
CHECK
VALVE
1
2
2
MIN. 30"
(762 mm)
MIN. 38"
(965 mm)
2
1
