SECTION 2 – DESIGN
Page 32 of 39 Fike Clean Agent System w/ FM-200™ UL / ULC Ex4623
Revision Date: January, 2010 Manual P/N: 06-215 (Rev G) FM 3010715

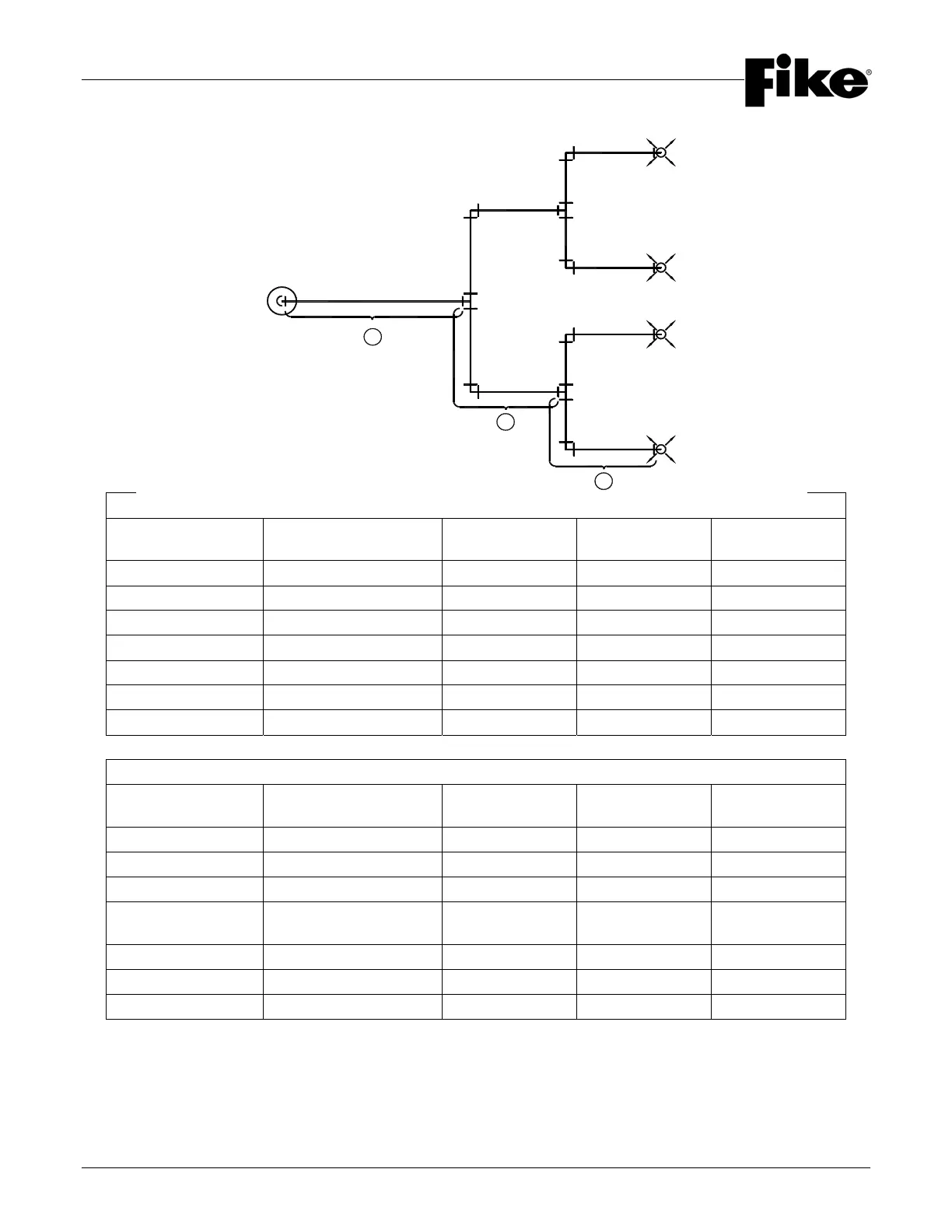

2.11.2.3 FOUR NOZZLE PIPING TABLE – 100 lb. THRU 1000 lb. (44 L thru 423 L) CONTAINERS
PIPE SIZE TABLE (ENGLISH)
Container Size Fill Range
Section “A”
Pipe Size
Section “B”
Pipe Size
Section “C”
Pipe Size
100 lb. 63 – 108 lbs. 1-1/2” NPT 1-1/4” NPT 1” NPT
125 lb. (inverted) 73 – 126 lbs. 1-1/2” NPT 1-1/4” NPT 1” NPT
215 lb. (inverted) 128 – 223 lbs. 2” NPT 1-1/2” NPT 1” NPT
215 lb. (floor mount) 124 – 216 lbs. 2” NPT 1-1/2” NPT 1” NPT
375 lb. 217 – 378 lbs. 2-1/2” NPT 2” NPT 1-1/2” NPT
650 lb. 378 – 660 lbs. 3” NPT 2-1/2” NPT 2” NPT
1000 lb. 598 – 1045 lbs. 3” NPT 2-1/2” NPT 2” NPT
PIPE SIZE TABLE (METRIC)
Container Size Fill Range
Section “A”
Pipe Size
Section “B”
Pipe Size
Section “C”
Pipe Size
44 L 28.5 – 48.5 kg 40 mm 32 mm 25 mm
51 L (inverted) 33.5 – 57 kg 40 mm 32 mm 25 mm
90 L (inverted) 58.5 – 101.0 kg 50 mm 40 mm 25 mm
87 L kg
(floor mount)
56.5 – 98.0 kg 50 mm 40 mm 25 mm
153 L 98.5 – 171.5 kg 65 mm 50 mm 40 mm
267 L 171.5 – 299.0 kg 80 mm 65 mm 50 mm
423 L 271.5 – 474.0 kg 80 mm 65 mm 50 mm
NOTE: The Pipe Size and Nozzle Size are dependent upon the container size. The pipe sizes shown for each
container size MUST be used.
A
B
C
