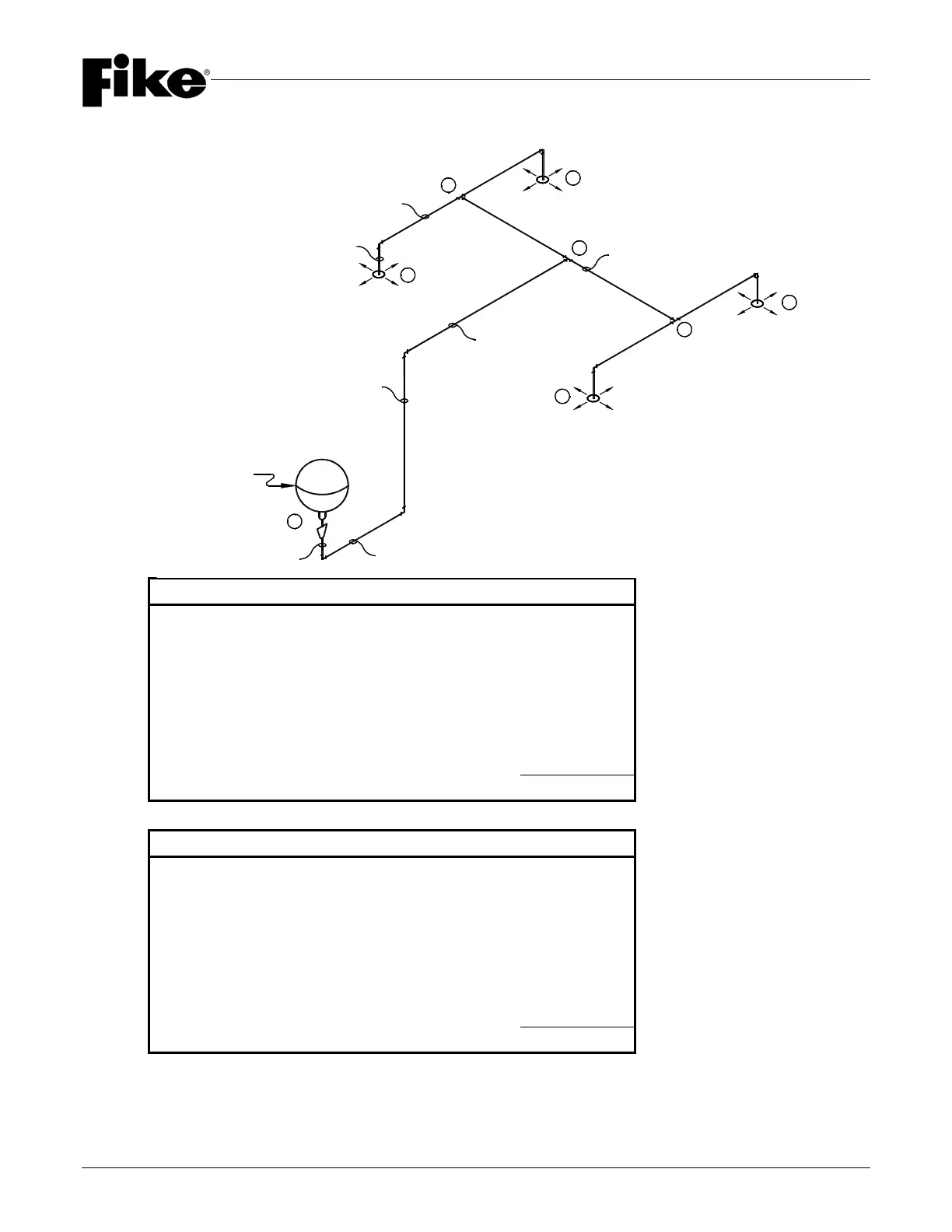

EXAMPLE: FOUR NOZZLE CONFIGURATION
EXAMPLE (ENGLISH)
Section A - B 16.5’ x 0.85 (1-1/2” NPT) = 14.03 (Length Factor)
3 x 3.66 (1-1/2” x 90
o
Elbow) = 10.98 (90
o
Elbow Factor)
1 x 7.40 (1-1/2” NPT Tee) = 7.40 (Tee Factor)
Section B - C 8.0’ x 0.95 (1-1/4” NPT) = 7.60 (Length Factor)
1 x 7.13 (1-1/4” NPT Tee)
=
7.13 (Tee Factor)
Section C - D 7.75’ x 1.00 (1” NPT) = 7.75 (Length Factor)
1 x 2.80 (1” x 90
o
Elbow) = 2.80 (90
o
Elbow Factor)
TPD = 57.69
EXAMPLE (METRIC)
Section A - B 5.03 m x 2.79 (40 mm) = 14.03 (Length Factor)
3 x 3.66 (40 mm x 90
o
Elbow) = 10.98 (90
o
Elbow Factor)
1 x 7.40 (40 mm Tee) = 7.40 (Tee Factor)
Section B - C 2.44 m x 3.12 (32 mm) = 7.61 (Length Factor)
1 x 7.13 (32 mm Tee) = 7.13 (Tee Factor)
Section C - D 2.36 m x 3.28 (25 mm) = 7.74 (Length Factor)
1 x 2.80 (25 mm x 90
o
Elbow) = 2.80 (90
o
Elbow Factor)
TPD = 57.69
NOTE: TPD MUST be <100> or less.
1-1/2" x 10'-0"
(40mm x 3.05m)
1" x 7'-0"
(25mm x 2.13m)
1" x 0'-9"
(25mm x .23m)
125LB (56.7kg)
1-1/2" x 0'-6"
(40mm x .15m)
A
1-1/4" x 8'-0"
(32mm x 2.44m)
1-1/2" x 1'-0"
(40mm x .31m)
D
31.25 LBS.
(14.18kg)
1-1/2" x 5'-0"
(40mm x 1.52m)
D
31.25 LBS.
(14.18kg)
C
31.25 LBS.
(14.18kg)
B
D
D
C
31.25 LBS.
(14.18kg)
