FLENDER K.SH - Weights; Oil Quantities; Enveloping Surface Sound Pressure Level

Technical data
Weights
A5850-02en Edition 06/2022 105

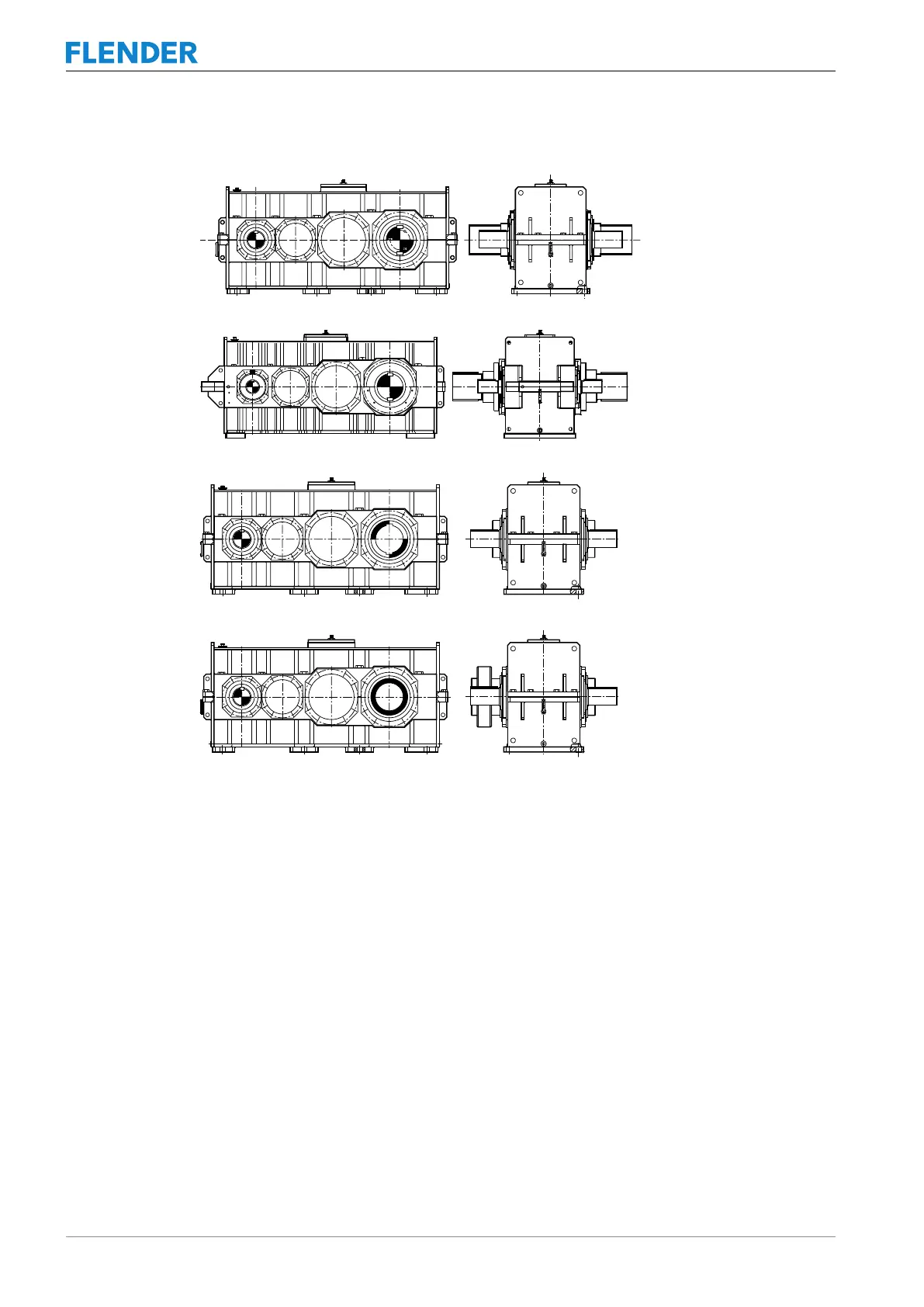

K.SH, K.VH
K.SM
K.HH
K.DH
B.4 Weights Weights
The precise weights are specified in the dimension drawings in the complete documentation
or on the rating plate.
All weight specifications refer to units without oil filling or mounted components.
B.5 Oil quantities Oil quantities
The oil quantity required is specified on the rating plate attached to the gear unit.
B.6 Enveloping surface sound pressure level Enveloping surface sound pressure level
The gear unit complies with a sound power level, which places it in a gear unit type class
defined in VDI2159, which is applied to produce the 80% characteristic curve of the emis-
sion characteristic map.
