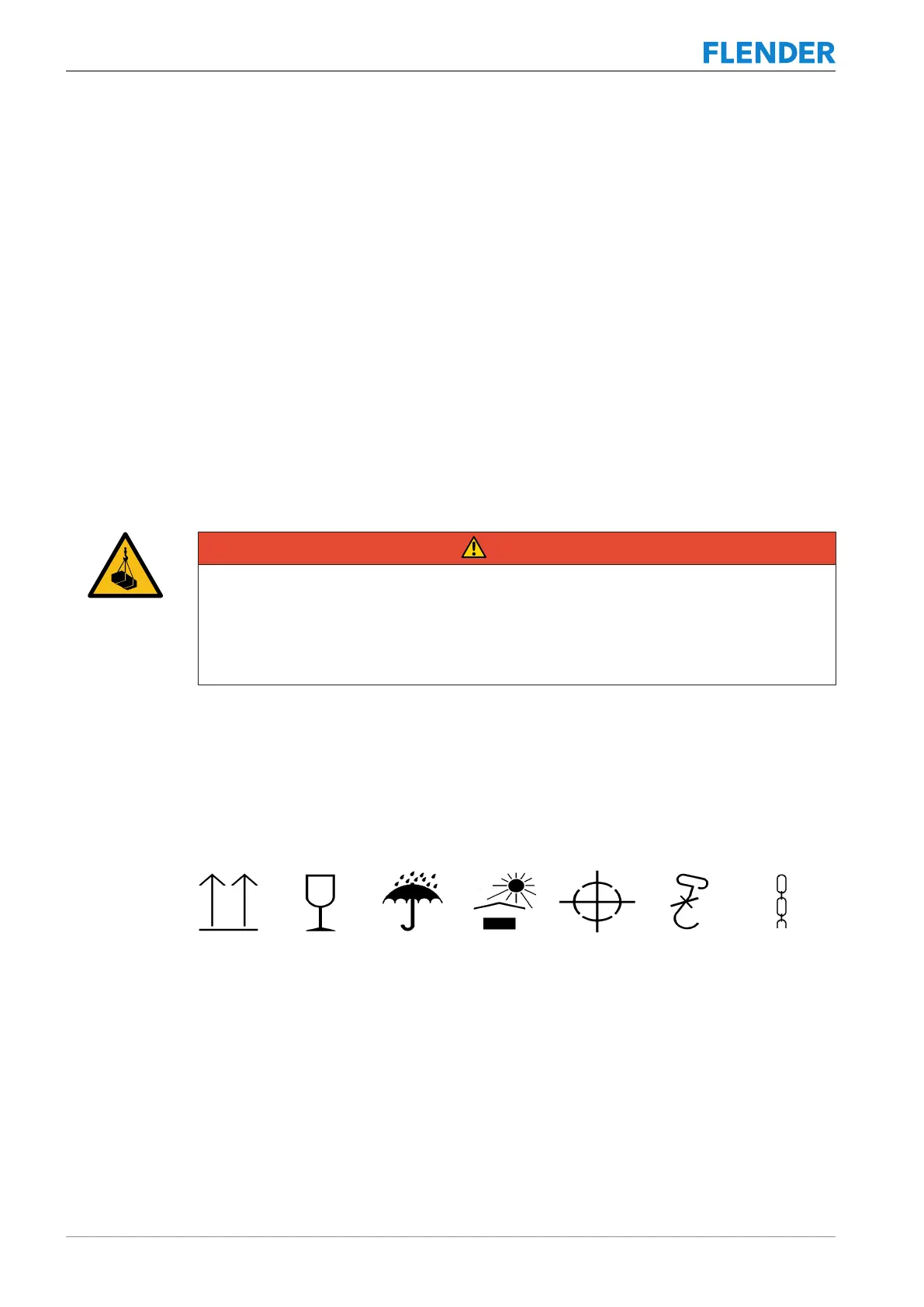

FLENDER K.SH - Figure 4-1 Transport Symbols

Application planning
4.2 Transport
44 Edition 06/2022 A5850-02en
Attaching the gear unit
To transport the gear unit, only attach slings to the marked attachment points that are
provided for this purpose.
Please observe the following when attaching slings to the load or raising, lowering or moving
it:
• Do not exceed the specified load limits
• If you are using a load suspension device with several load hooks, make sure that the
load is evenly distributed between them
• Note the eccentric centre of gravity
• Make sure that the lifting equipment is securely attached
• Keep your speed down when moving the load
• Do not allow the load to sway and do not attach the load to objects or structures inside
the building
• Loads must not be suspended from the tip of a load hook
• Always place the products down on a level, non-slip and stable base
DANGER
Falling load
There is a risk of fatal injury from falling loads if these have not been securely attached to
the lifting equipment.
Never stand or sit under suspended loads. Do not exceed the load limits of the lifting
equipment.
Packaging
The gear unit is delivered fully assembled. Additional equipment is also delivered separately
packaged, as necessary.
The gear unit may be packed in various forms, depending on the size of the unit and method
of transport.
Please adhere to the symbols applied on the packaging.
7KLVZD\XS)UDJLOH

.HHS
GU\
.HHS
FRRO
&HQWUHRI
JUDYLW\
'RQRW
XVHKDQGKRRNV
$WWDFKKHUH
Figure4-1:Transport symbols
