FLENDER K.SH - Figure 3-7 Design Variants of Taconite Seals

Description
3.6 Shaft seal
A5850-02en Edition 06/2022 29
The following design variants of Taconite seal are available:





7DFRQLWH(7DFRQLWH)
7DFRQLWH).
7DFRQLWH))
7DFRQLWH)+
7DFRQLWH))

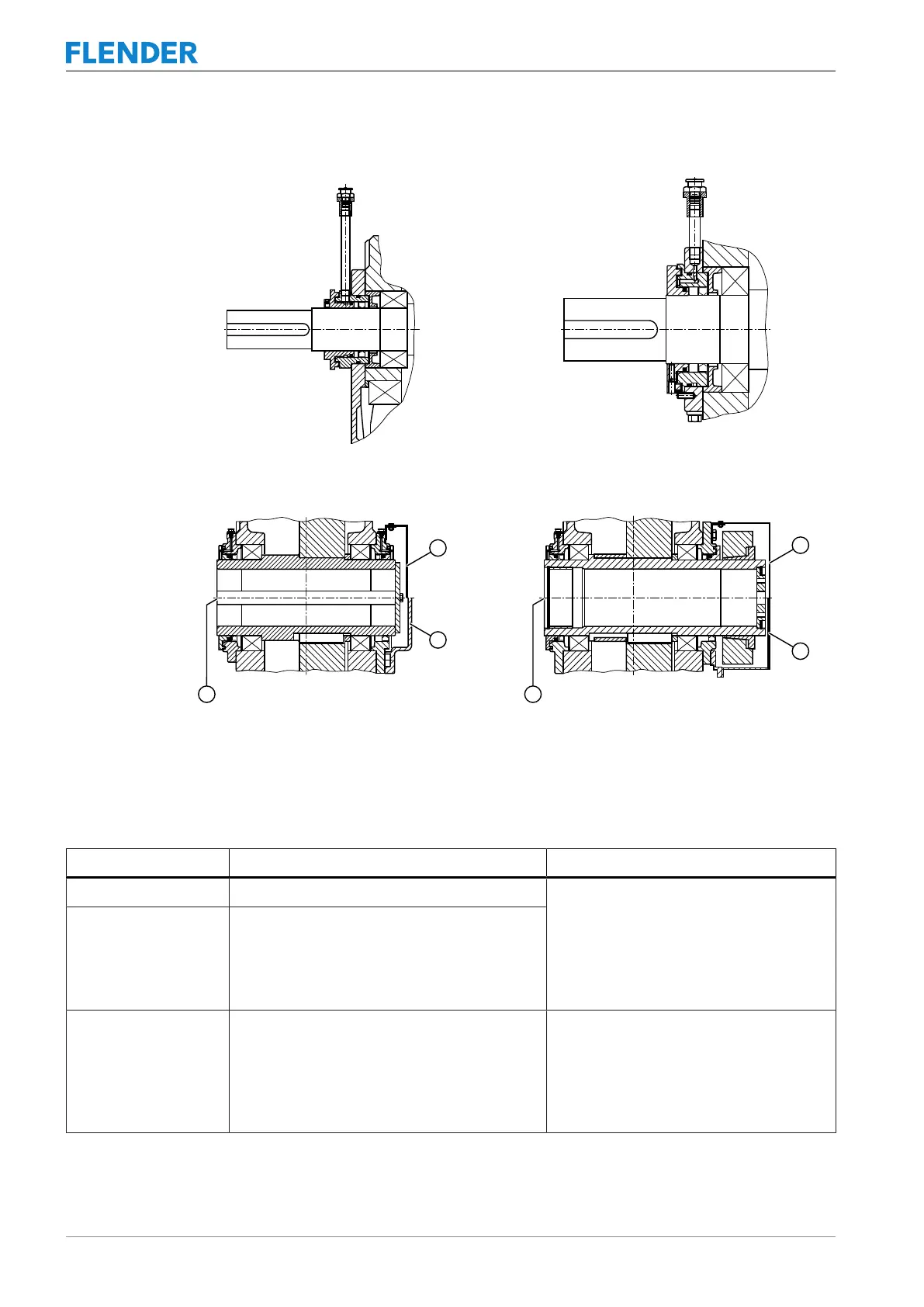

Figure3-7:Design variants of Taconite seals
① Taconite F-F ③ Taconite F-K
② Taconite F-H ④ Output
The various Taconite seals are described in the following table:
Taconite seal versions Application Remarks
"E" All input shafts with or without fan • Regreasable labyrinth
"F" Output shaft
Design S: Solid shaft
Design V: Solid shaft, reinforced
Design F: Flanged shaft
"F-F" Output shaft
Design H: Hollow shaft with parallel keyway
Design K: Hollow shaft with spline according to
DIN5480
Design D: Hollow shaft for shrink disk
• Labyrinth which can be regreased on
both sides, including cover to protect
against accidental contact at the gear unit
end facing away from the output shaft
