Description
3.13 Bearing monitoring
A5850-02en Edition 06/2022 39


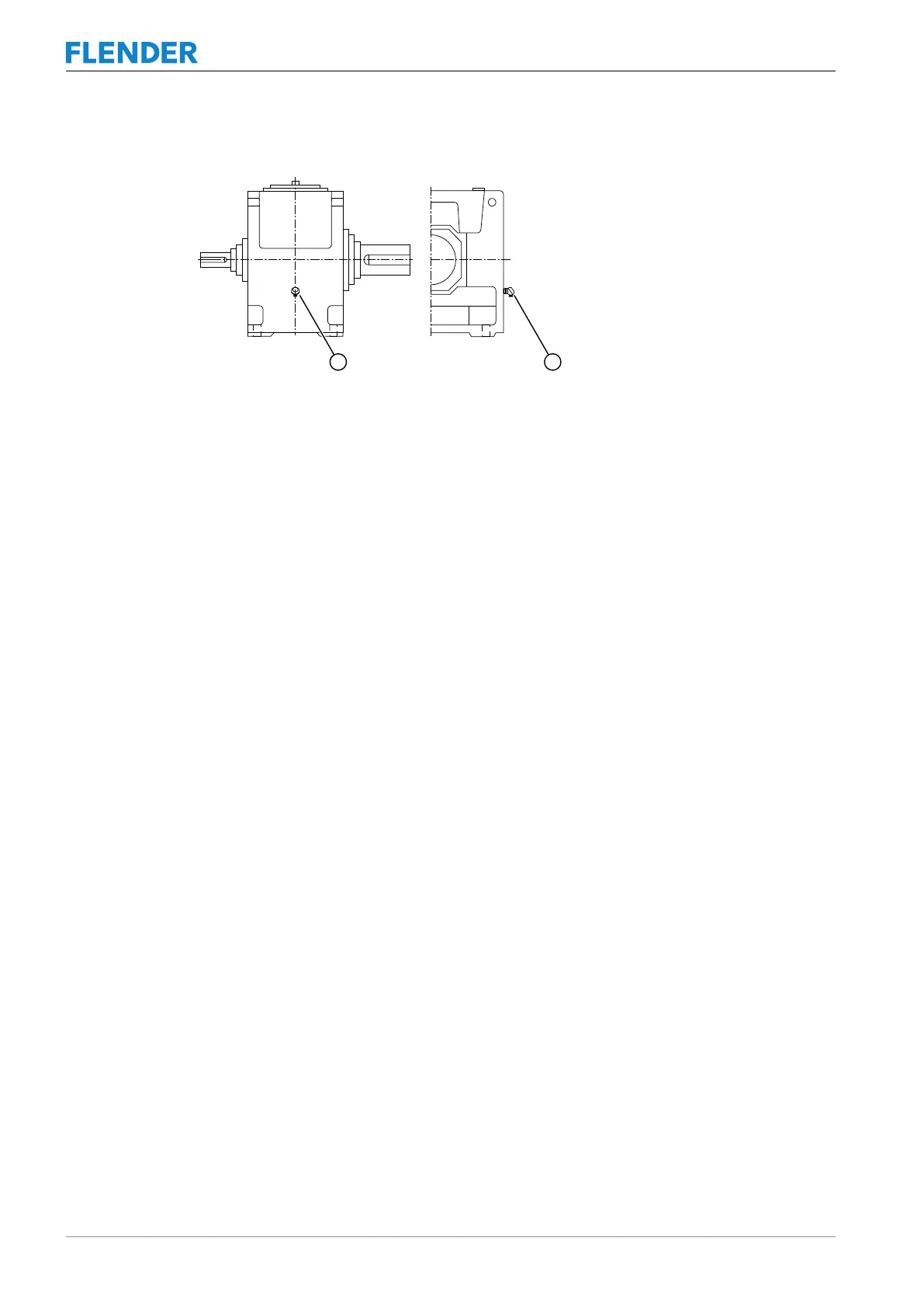

Figure3-12:Oil temperature monitor mounted on the gear unit
① Pt 100 resistance thermometer
Further information
Further information and a detailed illustration of the gear unit and the position of the mounted
components can be found in the dimension drawing in the complete documentation for the
gear unit.
Further information about oil temperature monitoring (such as control instructions) and the
technical data can be found in the operating instructions for the oil temperature monitor and
in the list of equipment in the complete documentation for the gear unit.
3.13 Bearing monitoring3.13 Bearing monitoring
3.13.1 Bearing monitoring by shock-pulse transducer3.13 Bearing monitoring
Depending on the order specification, the gear unit can be equipped with measuring nipples
for monitoring the bearings.
These measuring nipples are used to attach shock-pulse transducers with quick-release
coupling and are mounted on the housing close to the rolling-contact bearings to be mon-
itored.
