Description
3.4 Oil supply to the gear unit
26 Edition 06/2022 A5850-02en

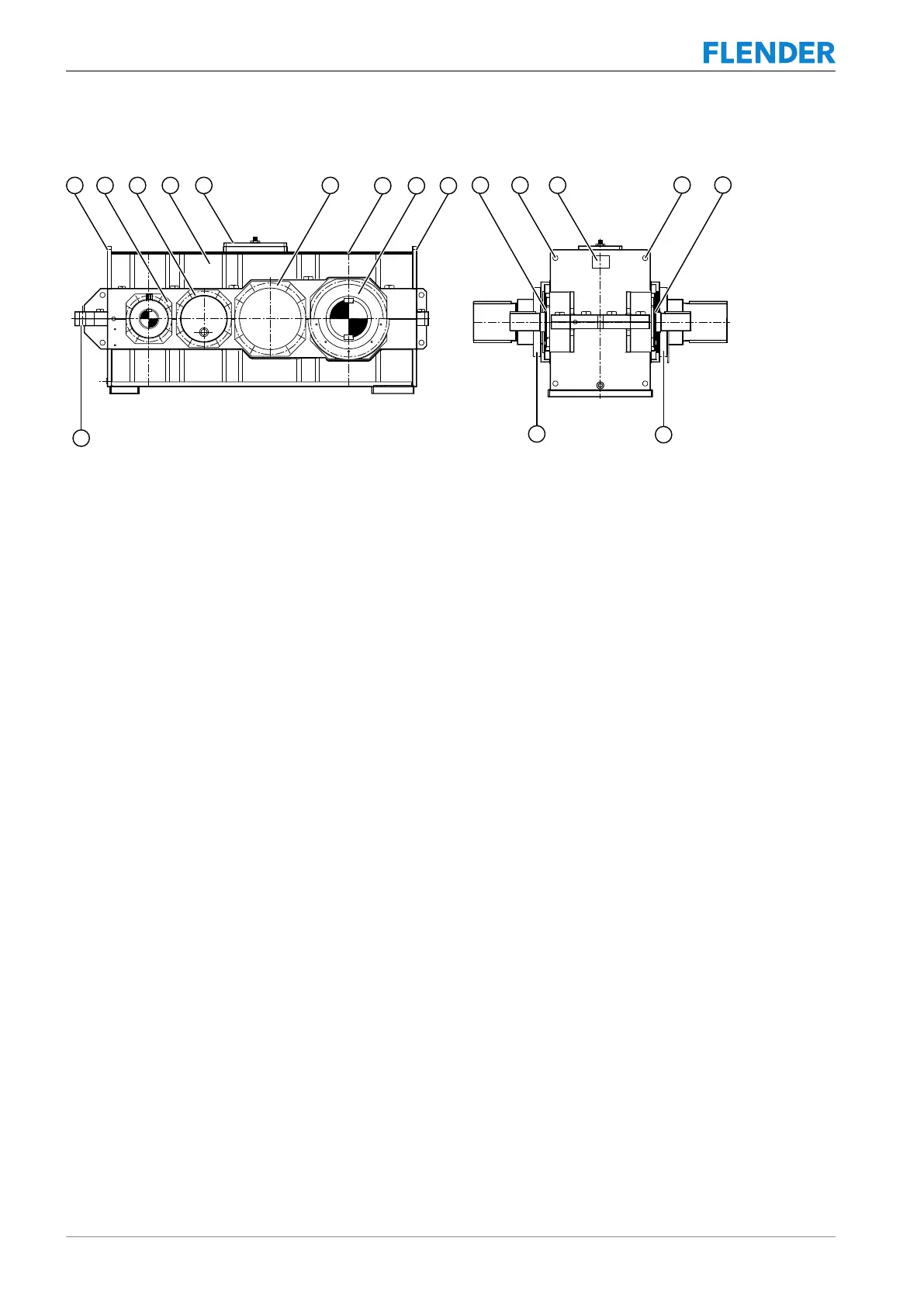

The diagram below shows the available gear unit equipment on gear units of type K..M:
Figure3-3:Gear unit equipment on gear units of type K..M
① Lifting eye ⑥ Cover
② Cover ⑦ Shaft seal
③ Housing ⑧ Rating plate
④ Inspection cover ⑨ Gear unit fastening
⑤ Alignment surface ⑩ Fastening for torque arm
Further information
You can find additional information and a detailed illustration of the gear unit and the position
of the mounted components in the dimension drawing in the complete documentation for the
gear unit.
3.4 Oil supply to the gear unit3.4 Oil supply to the gear unit
3.4.1 Splash lubrication3.4 Oil supply to the gear unit
Unless otherwise agreed by contract, the gearing and rolling-contact bearings are supplied
with an adequate quantity of oil by splash lubrication.
3.5 Shaft bearings3.5 Shaft bearings
All shafts are mounted on rolling-contact bearings.
