FLENDER K.SH - Output Shaft Versions; Housing; Table 3-1 Designs and Associated Directions of Rotation; Figure 3-1 Output Shaft Versions

Description
3.2 Output shaft versions
24 Edition 06/2022 A5850-02en
Design Type
K3.H, K3SM K4.H, K4SM
I
J.
Table3-1: Designs and associated directions of rotation
3.2 Output shaft versions3.2 Output shaft versions
The following versions of output shaft are available:
• S = Solid shaft
• V = Solid shaft, reinforced
• D = Hollow shaft with shrink disk
• H = Hollow shaft with parallel keyway

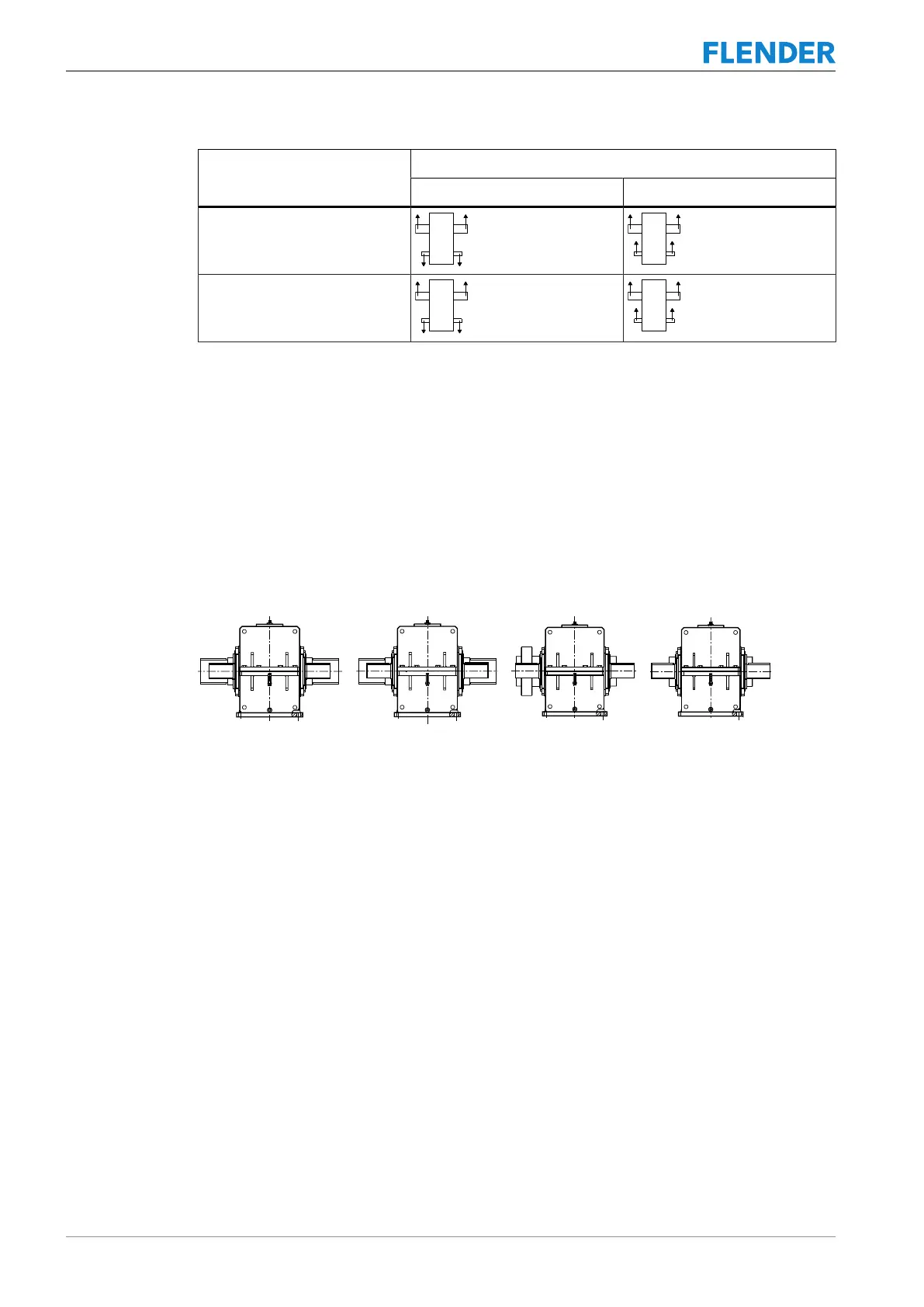

The available versions of output shaft are illustrated in the diagram below:
6
9'
+
Figure3-1:Output shaft versions
S Solid shaft D Hollow shaft with shrink disk
V Solid shaft, reinforced H Hollow shaft with parallel keyway
Further information
You can find additional information and a detailed illustration of the gear unit and the position
of the attachment points in the dimension drawing in the complete documentation for the
gear unit.
3.3 Housing3.3 Housing
Introduction
The housing is a two-part component made of steel.
The gear unit housing has the following features:
• Attachment points for moving the gear unit
• Inspection cover for inspection
