2.3 General information
16 Edition 06/2022 A5850-02en

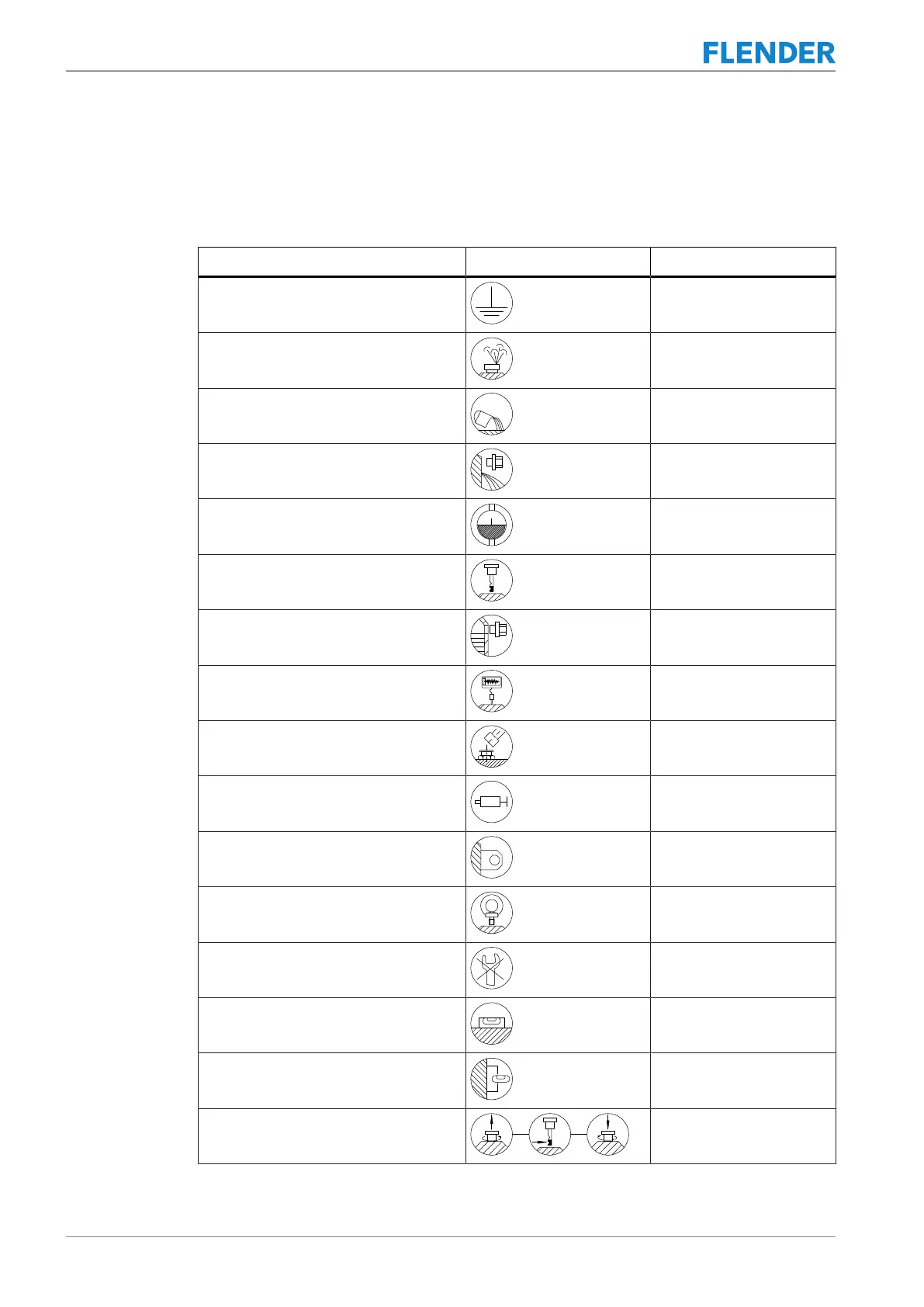

Symbols on the gear unit
The following symbols apply to the gear unit; some of which are found as coloured markings
on the gear unit:
Points labelled on the gear unit Symbol Coloured markings
Earth connection point
Air relief point yellow
Oil filling point yellow
Oil draining point white
Oil level indicator red
Oil level measurement red
Oil overflow
Connection point for vibration monitoring
Lubrication point red
Apply grease
Lifting eye
Eye bolt
Do not unscrew
Alignment surface, horizontal
Alignment surface, vertical
These symbols indicate the oil level
checking procedure using the oil dipstick.
