 Signal levels and level display

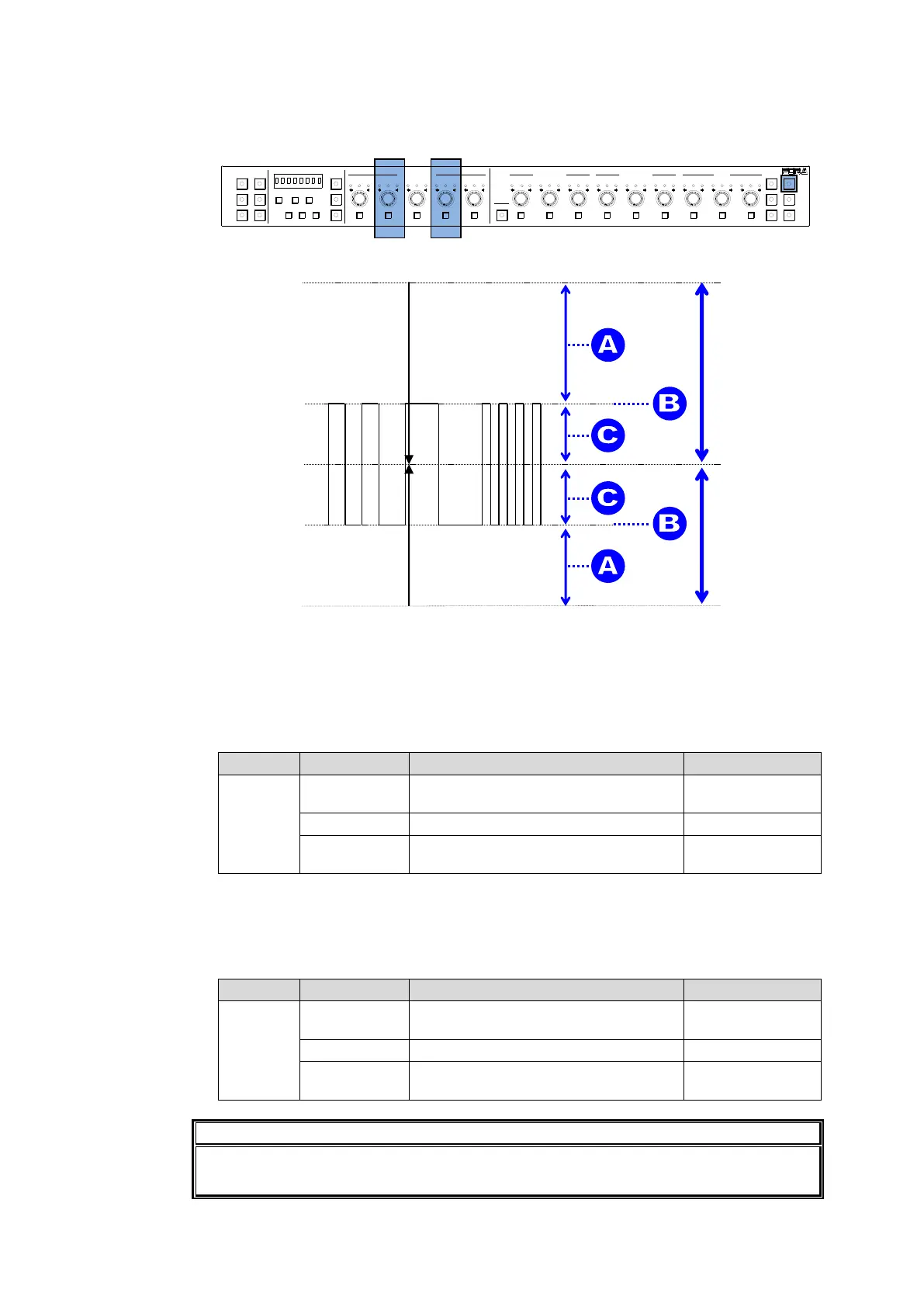

The relationship between indicators, controls, and clip settings are as shown below.
① RGB WHITE LEVEL (YLEVEL)
Setting range: 50% - 300%
Default (UNITY): 300%
Button
Setting
Level indicators
Panel display
Y LEVEL
A
Lit orange.
Flashes at 300% (UNITY)
101% - 300%
B
Lit green
100%
C
Lit orange.
Flashes at 50%.
50% - 99%
② RGB BLACK LEVEL (SETUP/BLACK)
Setting range: -200% - 50%
Default (UNITY): -200%
Button
Setting
Level indicators
Panel display
SETUP/
BLACK
A
Lit orange.
Flashes at 200% (UNITY)
-200% - -1%
B
Lit green
0%
C
Lit orange.
Flashes at 50%.
1% - 50%
IMPORTANT
Note that changes are applied to all linked FS channels (FS Link On) in an FA-505,
FA-1010 or FA-9520 (FA-9520 mode). See section 11. “FS Link” for more details.
