Fronius IG Plus 3.0-1 User Manual

90
The Setup Menu
The Fronius IG Plus unit is designed for fully automatic operation. No
manual control is necessary for feeding the power it generates into the
grid.
The setup menu allows easy readjustment of the Fronius IG Plus’s preset
parameters to your needs.
Default Set-
tings
Enter the
setup menu
(1)
(2)(3)(4)
1. Switch to the menu level (press
the ‘Menu’ key)
2. Select the ‘Setup’ (1) mode
using the ‘Left’ (4) or ‘Right’ (3)
keys
3. Press ‘Enter’ (2)
The Setup Menu’s first menu
item ‘STANDBY’ is shown.

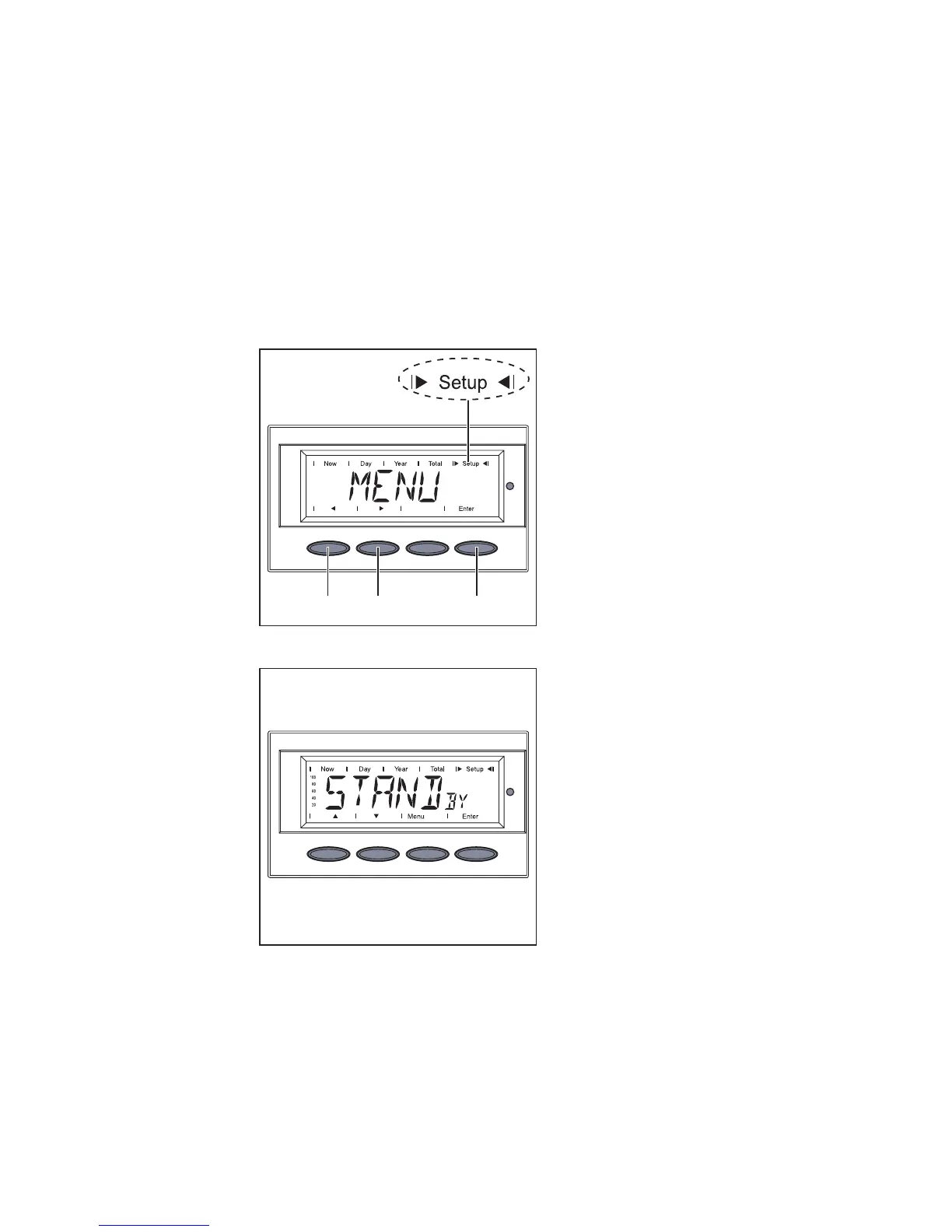

‘Setup’ mode selected in the menu level
Menu item ‘STANDBY’

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
