Connecting the Fronius IG Plus to the Public
Grid (AC)
Overview of
Available
Power Grids
120 °
120 °
12 0 °
208 V
208 V
208 V
L1
L2L3
=
~
=
~
=
~

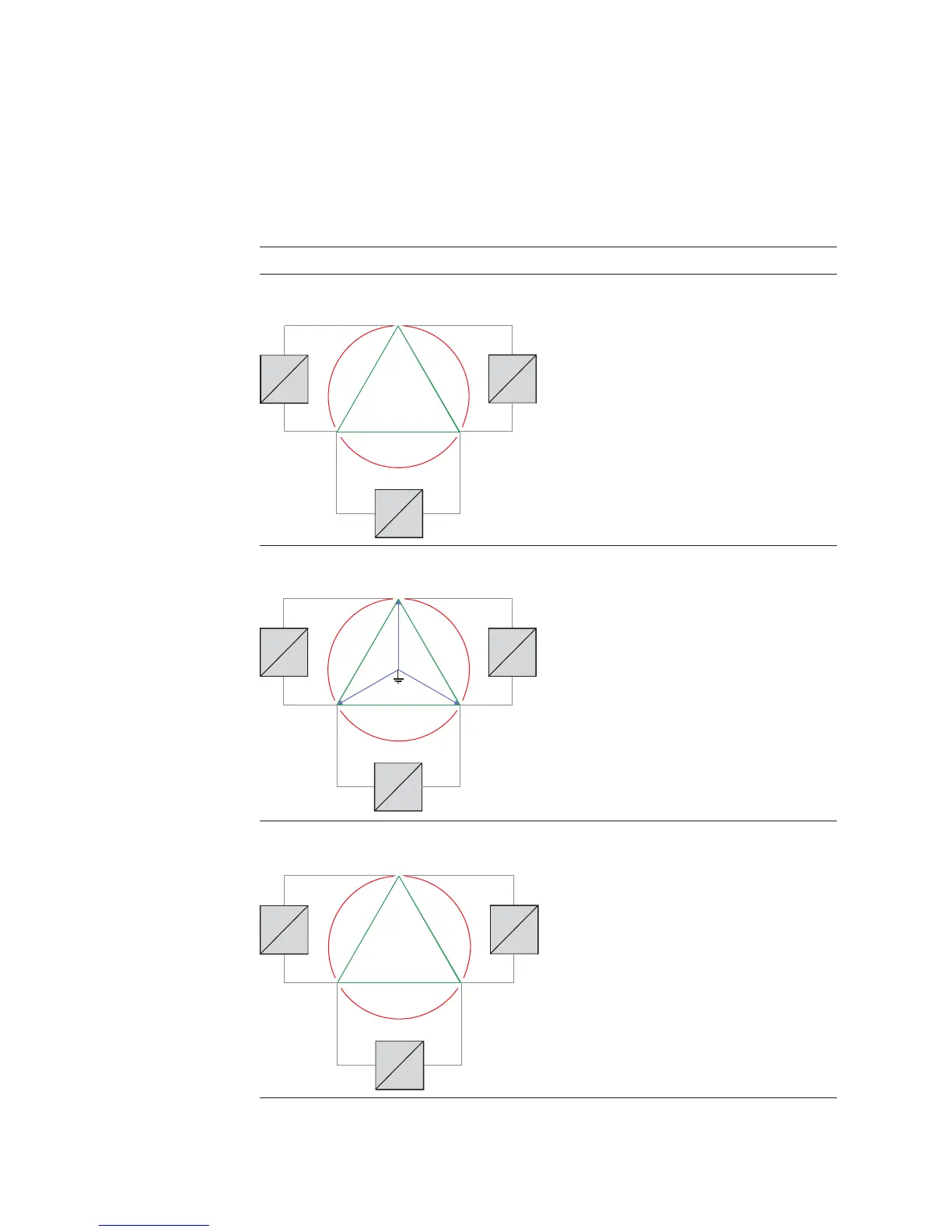

Fronius IG Plus inverters can be connected to the following power grids:
Public Grid Inverter
208 V Delta
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
Fronius IG Plus 11.4-3
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
Fronius IG Plus 11.4-3
120 V
120 V
120 V
120 °
12 0 °
120 °
208 V
208 V
208 V
L1
L2
N
L3
=
~
=
~
=
~
208 V Delta: 120 V WYE
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
Fronius IG Plus 11.4-3
240 V
240 V
240 V
120 °
120 °
12 0 °
L1
L2L3
=
~
=
~
=
~
240 V Delta

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
