Fronius IG Plus 3.0-1 User Manual

102

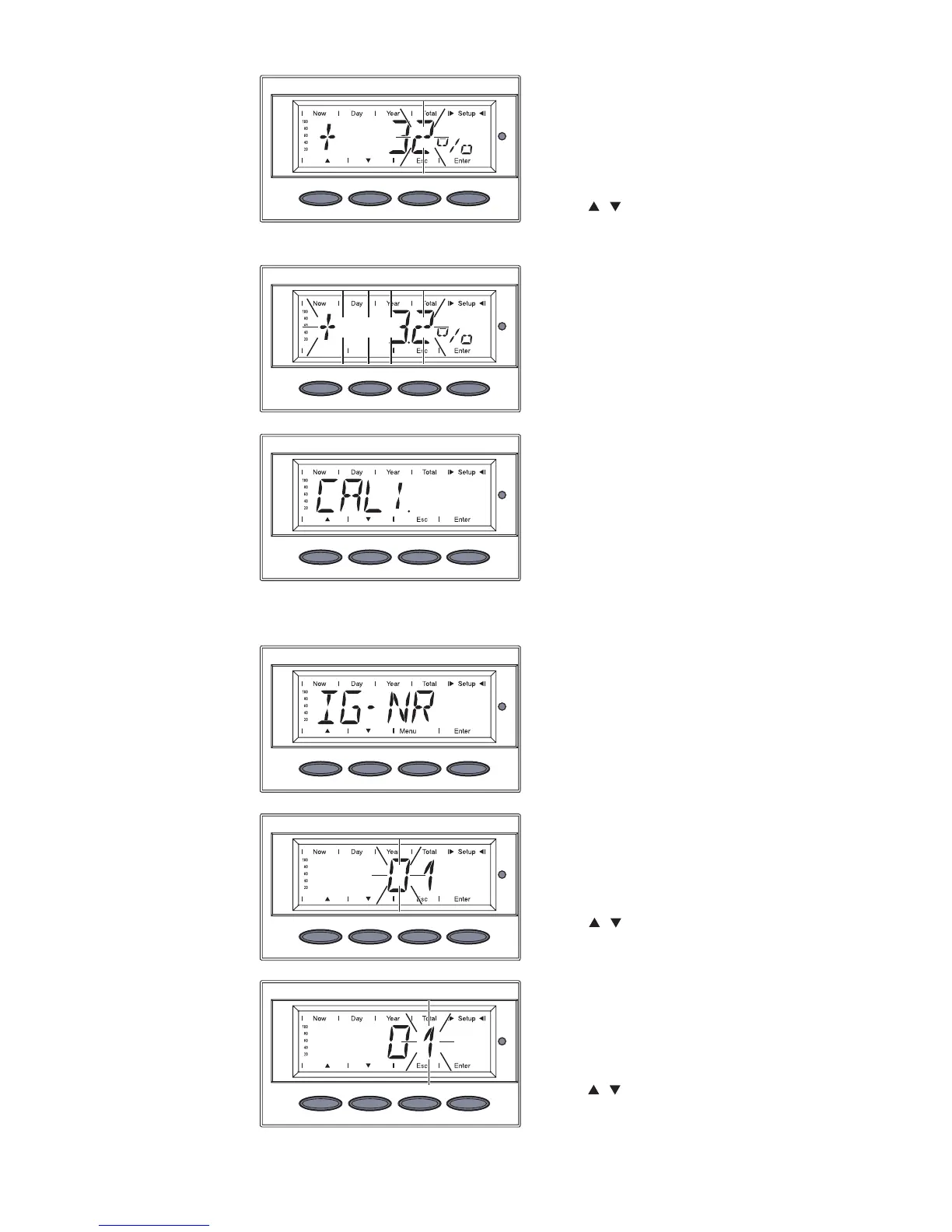

Setting menu
item ‘IG-NR’
1. Select menu item ‘IG-NR’
2. Press the ‘Enter’ key
The inverter number is shown,
the first digit flashes.
3. Use the ‘Up’ and ‘Down’ keys to
select a value for the first digit
4. Press the ‘Enter’ key
The second digit flashes
5. Use the ‘Up’ and ‘Down’ keys to
select a value for the second
digit
6. Press the ‘Enter’ key
The digit after the decimal point
flashes
22. Use the ‘Up’ and ‘Down’ keys to
select a value for the digit after
the decimal point
23. Press the ‘Enter’ key
The set correction value flashes
24. Press the ‘Enter’ key
The set correction value is now
accepted
‘CALI.’ is shown
25. Press the ‘Esc’ key 2 x to exit
menu item ‘YIELD’ or to
maintain previous setting
Setting menu
item ‘YIELD’
(continued)

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
