Fronius IG Plus 3.0-1 User Manual

79
1. Press any key
The display backlight is activated.
If no key is pressed for 30 seconds, the display backlight stops.
The setup menu also offers a choice between permanently lit or per-
manently dark display.
Activating
Display Illumi-
nation
Operating scheme - the Display

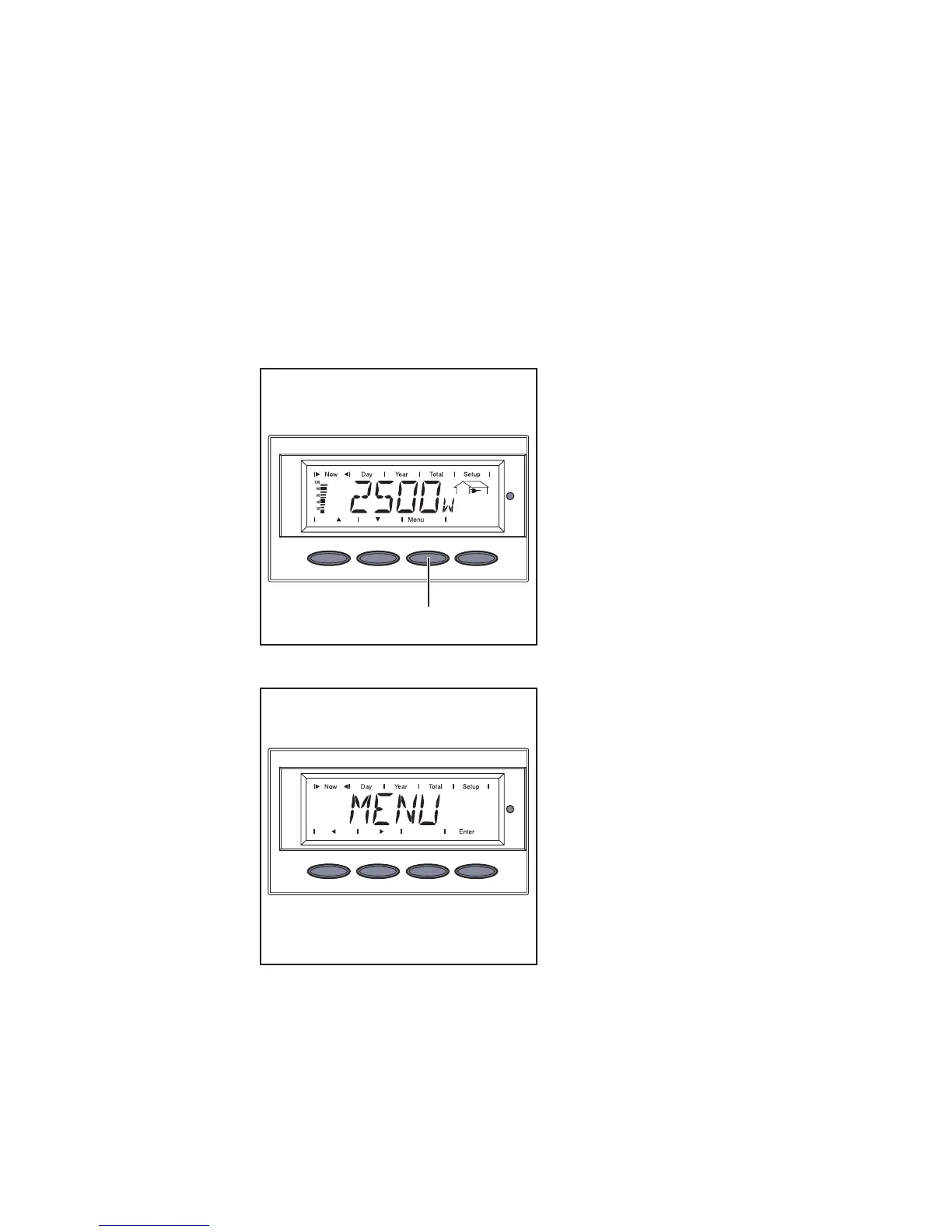

Accessing
Menus
(1)
1. Press the ‘Menu’ button (1)
Accessing Menus
‘Menu’ will appear on the dis-
play
The Fronius IG Plus is now in
the menu level.
From the menu level you can
- set the desired display mode
- access the Setup menu
Menu Levels

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
