Fronius IG Plus 3.0-1 User Manual

86
1. Select display mode ‘Day’ or
‘Year’ or ‘Total’
The first display value in the
selected display mode is
shown.
2. Use the ‘Down’ (2) key to scroll
to the next display value
Scroll back using the ‘Up’ key
(1)
(1) (2) (1) (2)
For the Fronius IG Plus unit, the day begins when it switches on. If the DC
supply line is disconnected, the following parameters within the display
mode ‘Day’ will be re-set after repeating the start-up:
- yield (currency can be selected)
-CO
2
reduction (lbs.)
- maximum power supplied (Watts)
- maximum grid voltage (Volts)
- minimum grid voltage (Volts)
- energy supplied (kWh)
- operating hours for Fronius IG Plus unit
If an optional datalogger is available, the display values listed always
apply for the whole day.
Within display modes ‘Day / Year / Total’ display-
ed data
General
Selecting
display modes
‘Day / Year /
Total’
(1) (2)

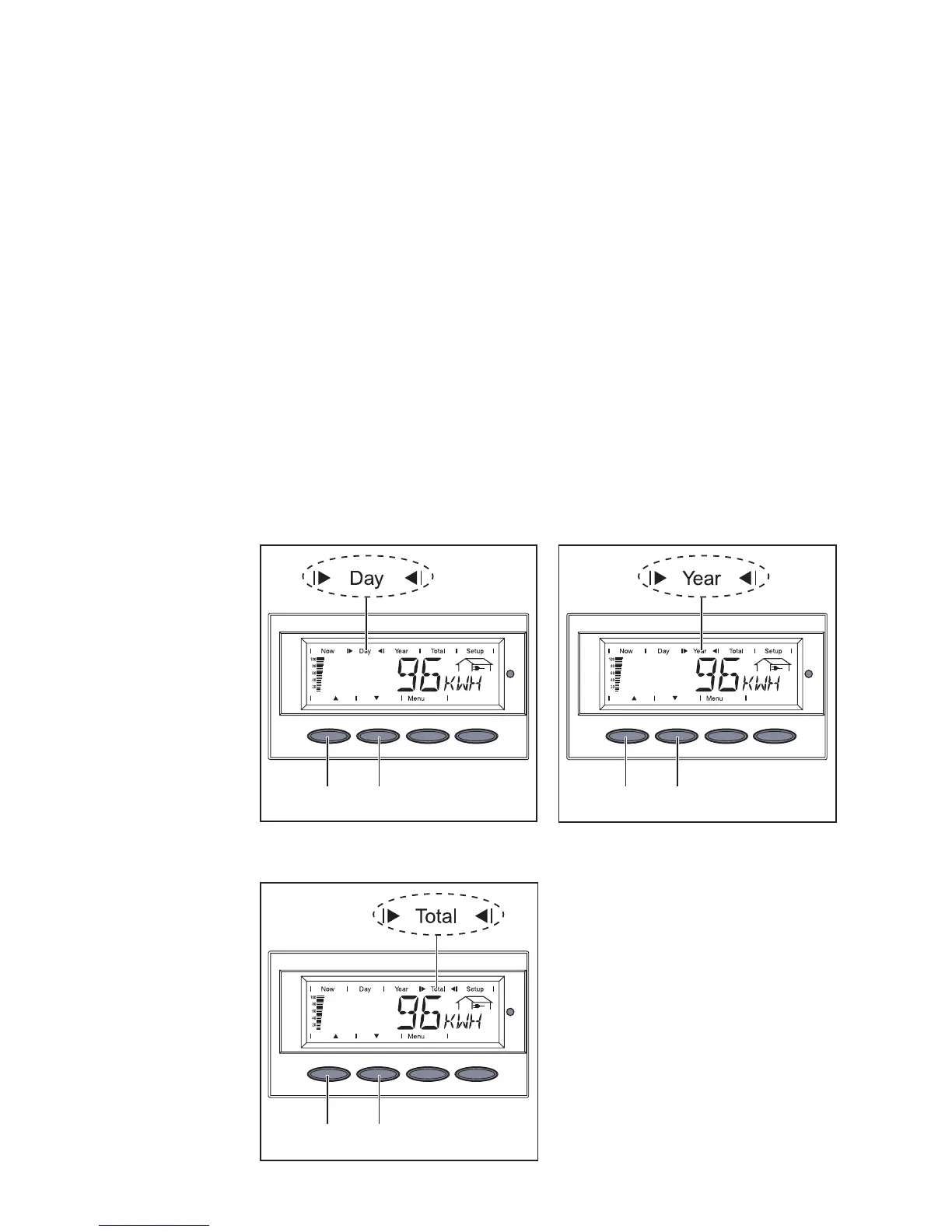

First display value in the display mode
‘Day’
First display value in the display mode
‘Year’
First display value in the display mode ‘Total’

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
