Fronius IG Plus 3.0-1 User Manual

77
Operating
Status LED
Operating Status Explanation
LED
lights up green A green light starts as soon as the Fronius IG
Plus unit has completed the startup phase, and
stays green as long as the operation of feeding
power into the grid continues. i
It indicates faultless operation of the photovoltaic
equipment.
flashes green The photovoltaic equipment is operating without
fault, an additional message is shown on the
screen.
When a status code is shown, rectify the relevant
condition by going to the ‘Maintenance and Ser-
vice’ chapter, ‘Status Diagnosis and Troubleshoo-
ting’ section. The status message can be ack-
nowledged by pressing the ‘Enter’ key.
lights up orange The FRONUS IG unit will enter the automatic
startup-phase, as soon as the photovoltaic
modules yield sufficient power output
flashes orange when a warning is shown on the screen
or
the Fronius IG Plus unit has been set to standby
operation in the setup menu (manual shutoff of
operation).
The next day, operation will resume automatically.
During the time the LED flashes orange, the
operation can be resumed manually at any time
(see section ‘The Setup Menu’)

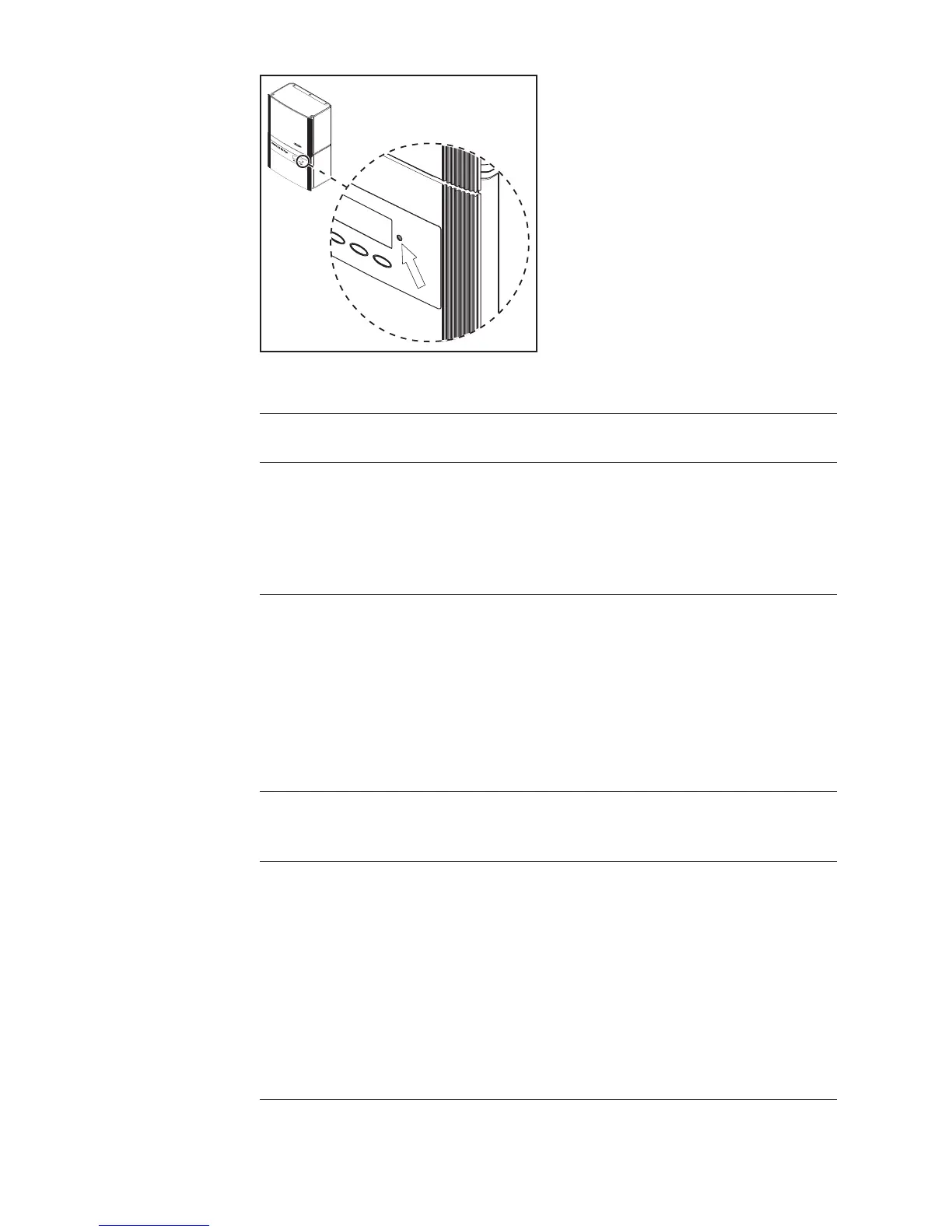

Position of Operating Status LED on the
Fronius IG Plus
Depending on the operating
status, the Operating Status LED
assumes different colors:

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
