83
(1) (2)

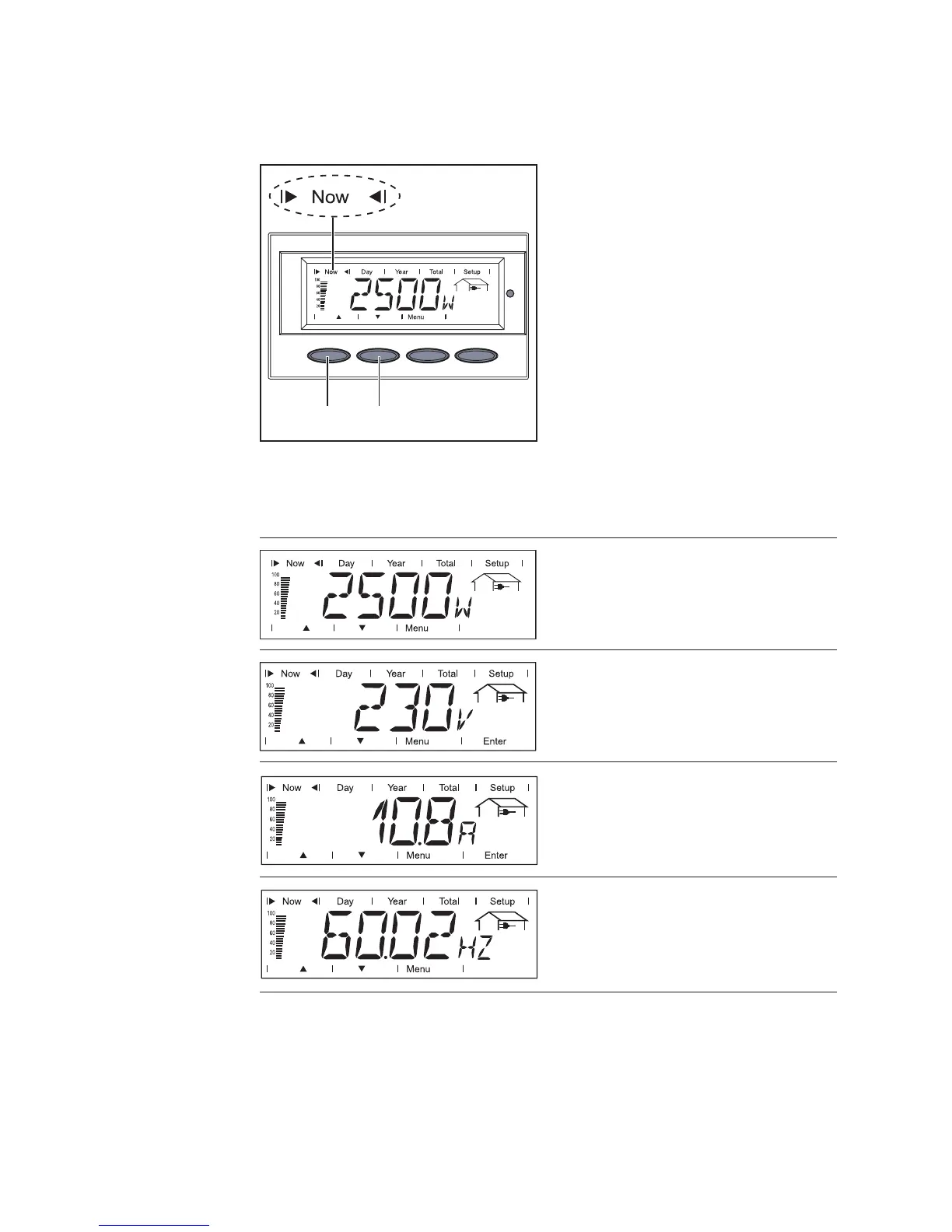

Within display mode ‘Now’ displayed data
AC power supplied
power supplied to grid at the parti-
cular moment (Watts)
AC grid voltage
(Volts)
Within display
mode ‘Now’
displayed data
Grid frequency
(Hertz)
AC current supplied
current supplied to the grid at the
particular moment (Amperes)
*)
*)
*) only for a multi-phase Fronius IG Plus
Selecting
display mode
‘Now’
1. Select display mode ‘Now’
The first display value appears
in the ‘Now’ display mode
2. Use the ‘Down’ (2) key to scroll
to the next display value
Scroll back using the ‘Up’ key
(1)
First display values in the ‘Now’ display
mode

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
