Fronius IG Plus 3.0-1 User Manual

27
Fronius IG
Plus Installati-
on

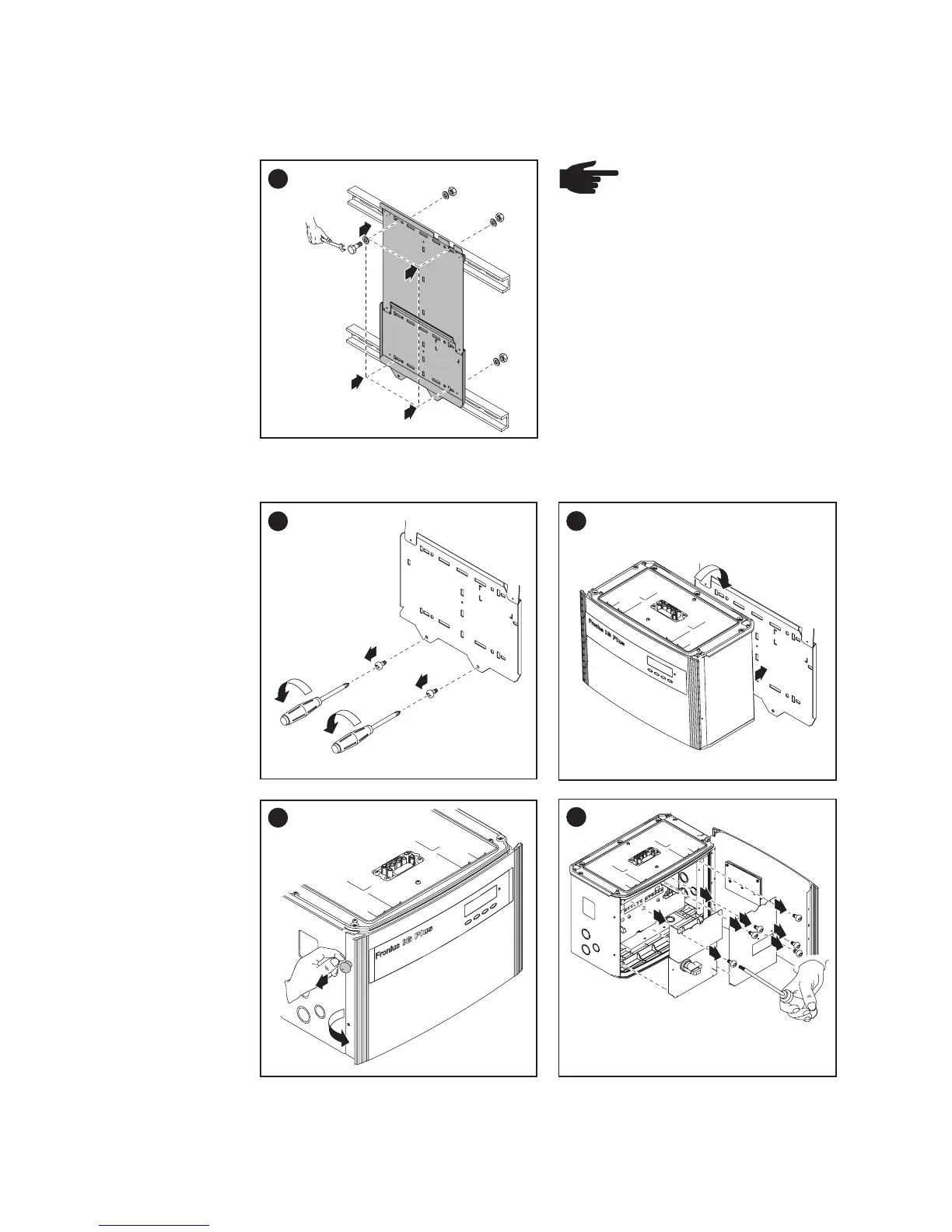

Attaching the
Wall Bracket
to a Metal
Carrier
1
4 x
3
4
22
1
(*)
Important The cut out segment marked (*) represents the placement of
the inverter display. Use this to ensure a comfortable display height for
easy reading.
NOTE When installing
using a metal carrier, the
Fronius IG Plus should not
be exposed to rainwater or
water spray at the back.
Ensure proper rainwater or
spray water protection.
1
2
1
1
2
2
3
2
1
4
1
2
3
4
6
5
7
8

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
