Fronius IG Plus 3.0-1 User Manual

132
Opening Fro-
nius IG Plus
for Service/
Maintenance
Procedure for opening the Fronius IG Plus for service or maintenance:
1. Disconnect the AC and DC supply from the inverter
2. Open the connection area
3. Turn off DC main switch
4. Allow the capacitors to discharge (5 minutes)
5. Remove metal covers
6. Remove the plastic dividers
7. Remove string fuses
8. Disconnect DC wire
9. Disconnect AC wire

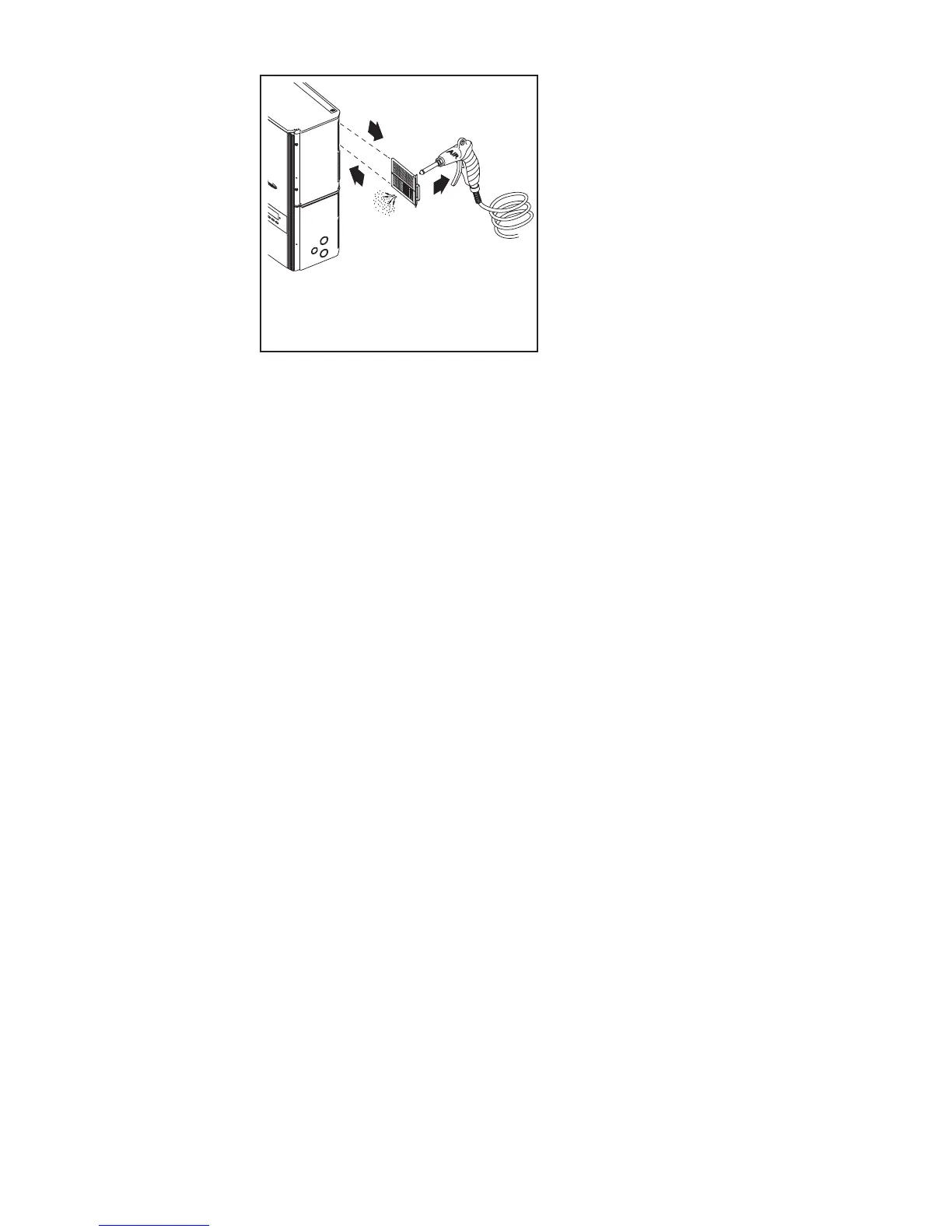

When operating the inverter in
extremely dusty environments:
Remove the fan cover and clean
the integrated fly screen as re-
quired
Operation in
Dusty Envi-
ronments
2
1
3

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
