Fronius IG Plus 3.0-1 User Manual

85
Options If the DatCom component for the required options are not available, the
message "N.A." (not available) is shown.

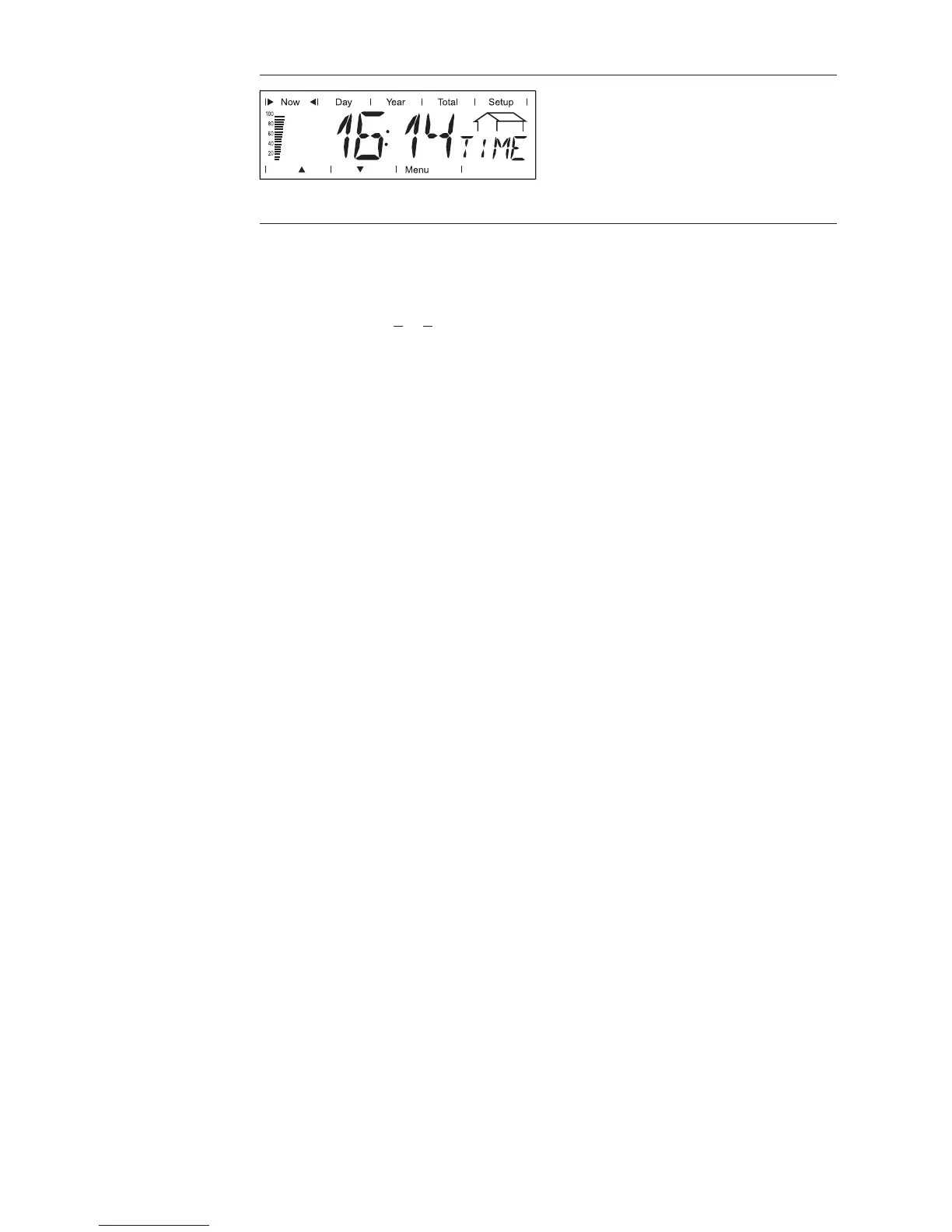

Time of the day (optional data-
logger)
When the time on the Fronius IG
Plus or a system upgrade is chan-
ged, this changes the time on all
connected devices via Solar Net.
Within display
mode ‘Now’
displayed data
(continued)

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
