Fronius IG Plus 3.0-1 User Manual

134

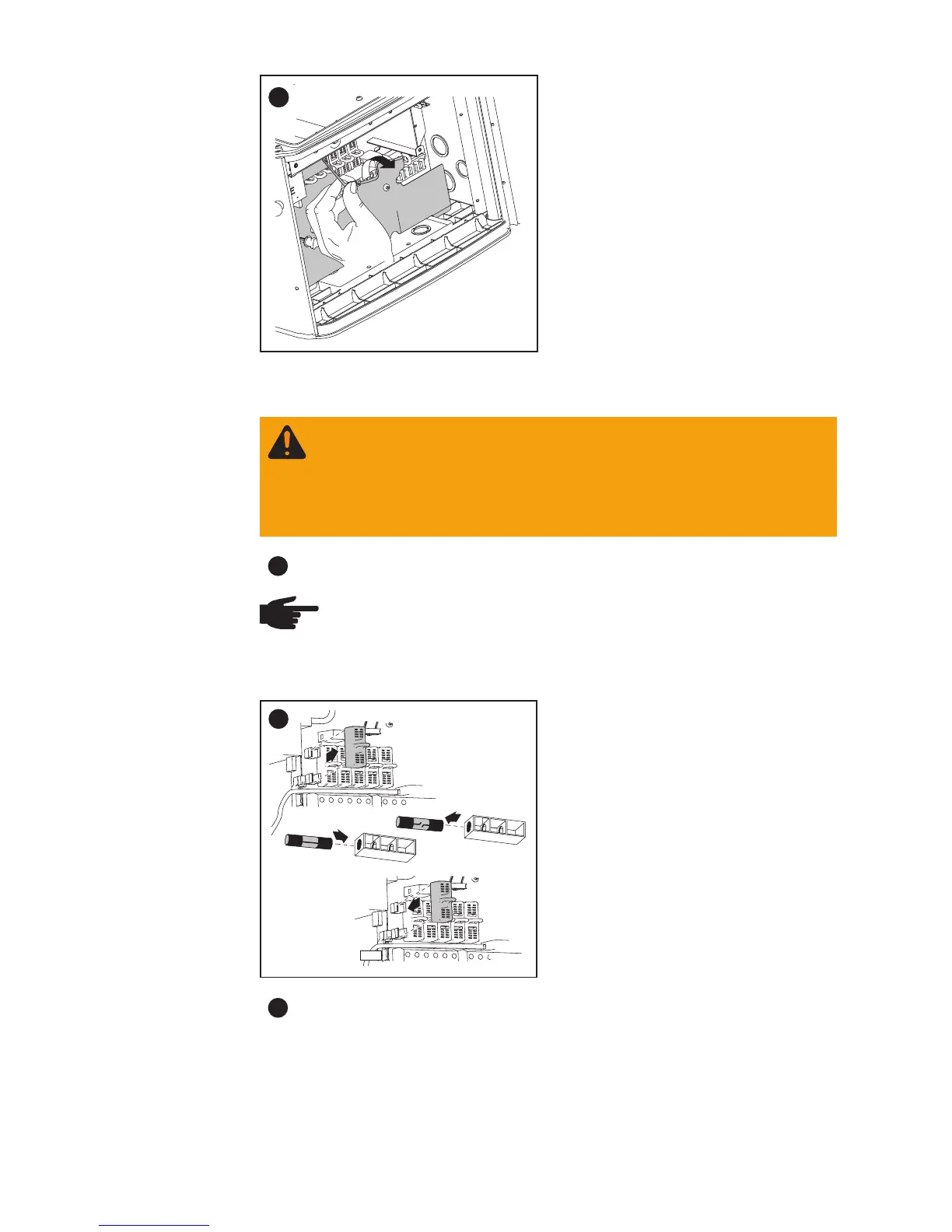

Lift up plastic dividers in the area of
the string fuses
Preparation
(continued)
After replacing the fuse:
- Find out and correct the cause for the defective fuse
4
2
3
2
1
DC+
3
Replacing
String Fuses
NOTE Only use fuses for solar modules that meet the Criteria
for the Proper Selection of String Fuses
Test the fuse holder at the terminal for continuity
1
WARNING! An electrical shock can be fatal. Danger from DC
voltage from solar modules.
- Never remove a fuse, while it is under load.
- Fuse covers are for installation purposes only. They offer
no protection against contact.
3
1
Fuse data: Diameter 0.406 x 1.378 - 1.496 in.
(10.3 x 35 - 38 mm), 600 V DC

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
