Display in normal operation
Status Codes
on Fronius IG
Plus with
several power
stage sets
A special status diagnostic is run if an error occurs in a Fronius IG Plus
with several power stage sets.
It is also possible to call up state messages even if there is no actual error
in existence. This form of status polling may be found in the section ‘The
Setup Menu’.
- The status display of the power
stage sets ’STATEPS’ appears
- Press the ‘Enter’ key
Additional information can be
found in ‘The Setup Menu’
section, STATEPS’ Menu item
Class 1 Status
Codes
The first reaction of your Fronius IG Plus unit is to disconnect from the
grid. Subsequently, the grid will be checked for the duration of the obser-
vation period stipulated. If after the end of this period no further defect is
identified, your Fronius IG Plus unit resumes operating and feeding power
into the grid.
Status codes of class 1 are typically
temporary. Their cause lies in the
grid.

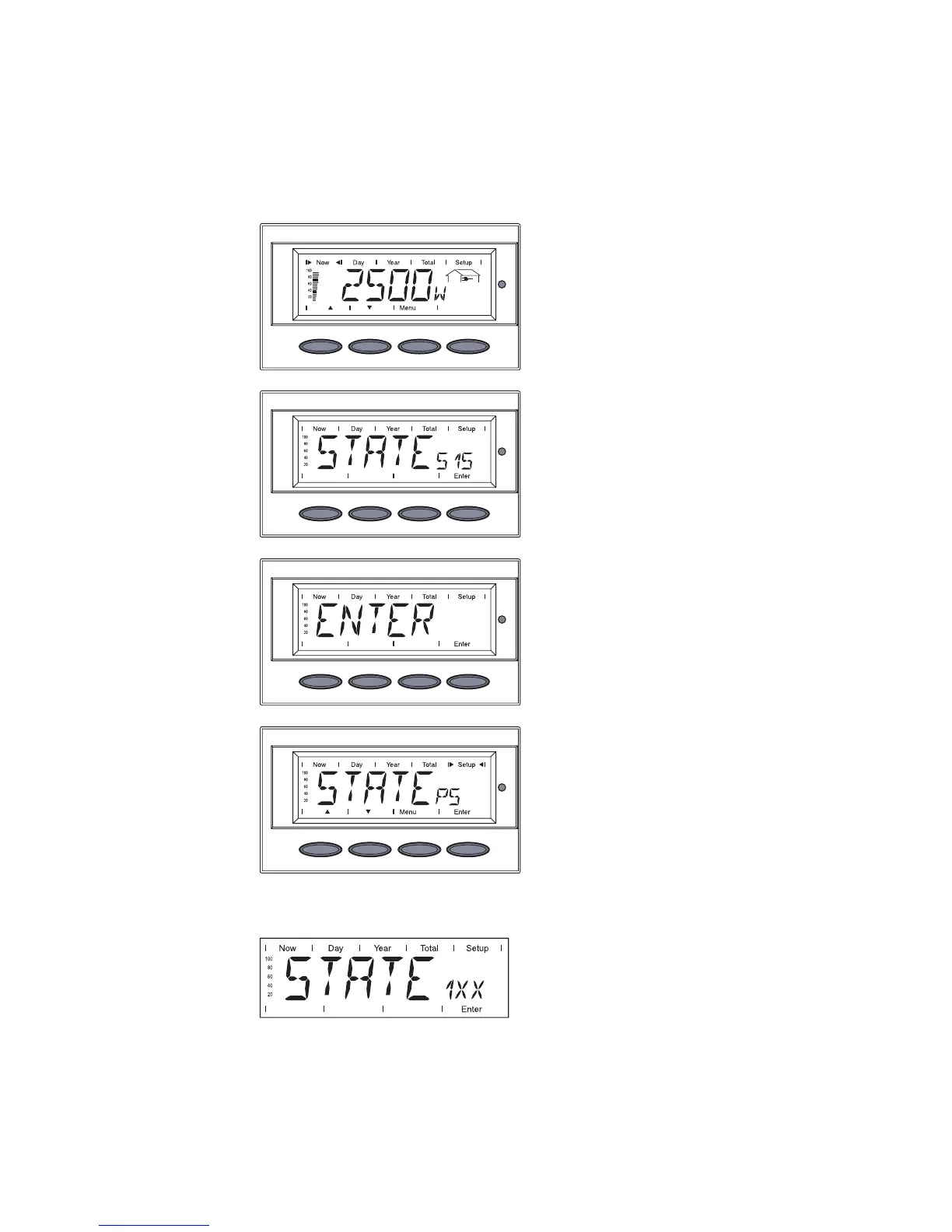

When there is an error in one of the
two power stage sets, the display
flashes between ‘STATE’ and the
corresponding status message
(e.g. ‘STATE 515’)
and
‘ENTER’
- Press the ‘Enter’ key twice

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
