Fronius IG Plus 3.0-1 User Manual

136

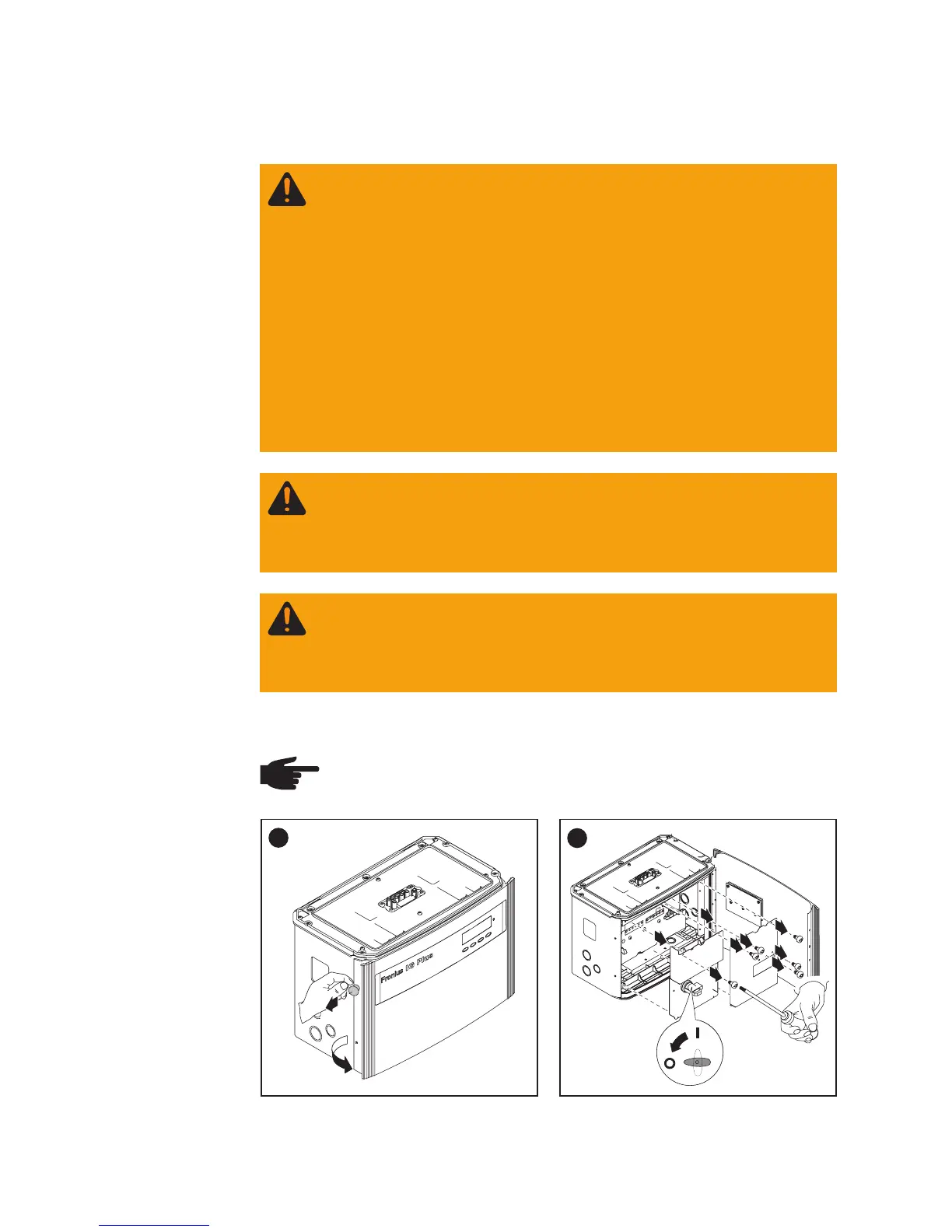

Replacing GFDI Fuse
Safety
Preparation
WARNING! An electrical shock can be fatal. Danger from
residual voltage from capacitors.
You must wait until the capacitors have discharged. Discharge
takes 5 minutes.
WARNING! An electrical shock can be fatal. Danger from grid
voltage and DC voltage from solar modules.
- The connection area should only be opened by a licensed
electrician.
- Never work with live wires! Prior to all connection work,
make sure that the AC and DC wires are not charged.
- The DC main switch is only used to switch off power to the
power stage set. When the DC main switch is turned off,
the connection area is still energized.
These servicing instructions are for use by qualified personnel
only. To reduce the risk of electric shock, do not perform any
servicing other than that specified in the operating instructions.
NOTE
Disconnected AC and DC supply from the inverter.
1
2
1
2
2
3
4
5
7
6
8
9
1
WARNING! An electric shock can be fatal. Normally grounded
conductors may be ungrounded and energized when a ground
fault is indicated. The ground fault has to be repaired before
operation is resumed.

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
