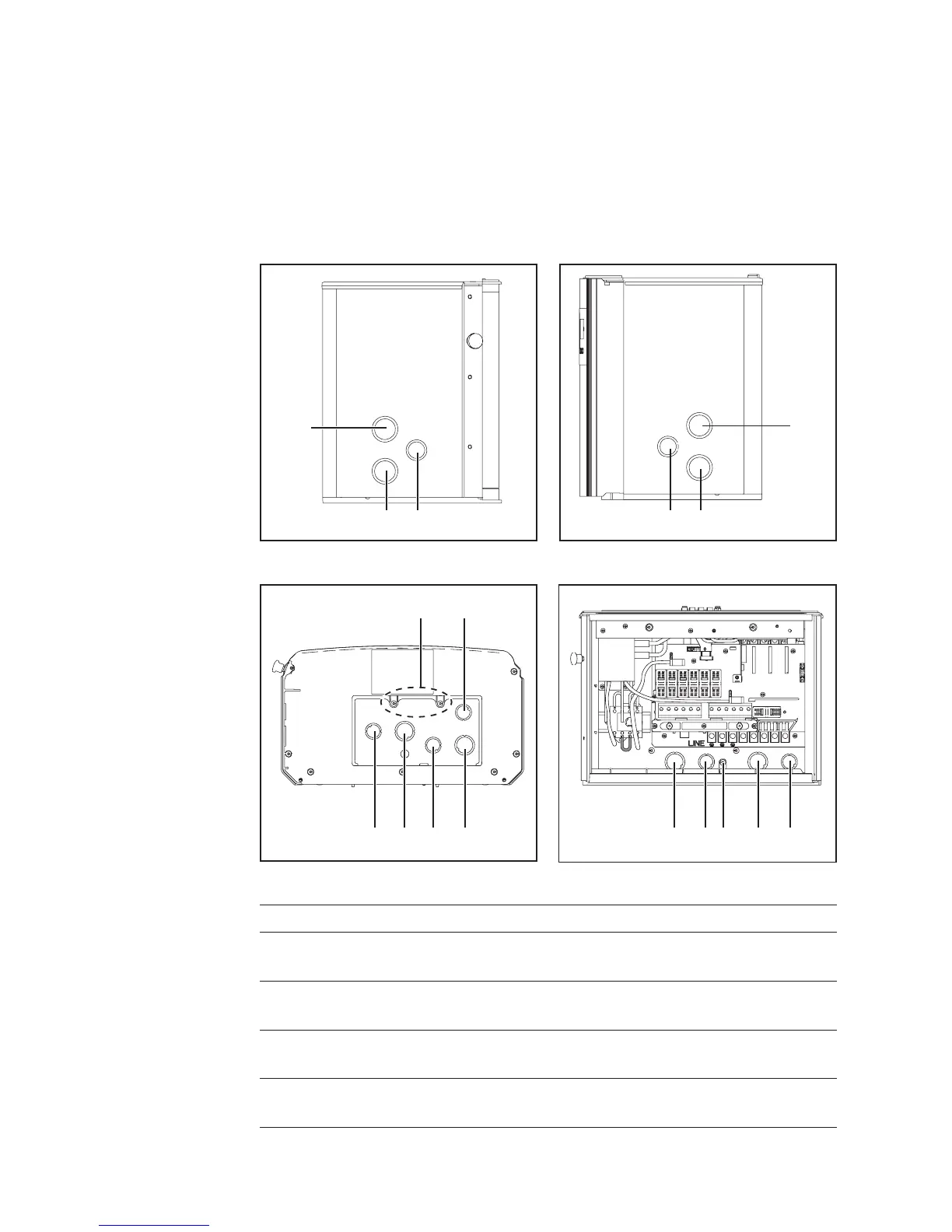

The Fronius IG Plus contains several knockouts of different sizes. When
knocked out, the openings are used for the inputs of various wires.
Knockouts on the lefthand side
Item Description
(1) Knockout, diameter 3/4 in. / 1 in.
e.g. for DC wire, surge arrester
(2) Knockout, diameter 1/2 in. / 3/4 in.
only for data wires
(3) Knockout, diameter 3/4 in. / 1 in.
e.g. for AC wire, surge arrester
(4) Knockout, diameter 1/2 in. / 3/4 in.
e.g. for AC wire, surge arrester
(2)
(1)
Knockouts on the righthand side
(3)
(1)
(3)(2)
(4)(1)(5) (3)
(4)(3)(5)(1)
(2)
Knockouts on the underside Knockouts on the backside
(6)
(7)
Knockouts for
Wire Inputs
Knockouts on the Fronius IG Plus
General

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
