Fronius IG Plus 3.0-1 User Manual

30

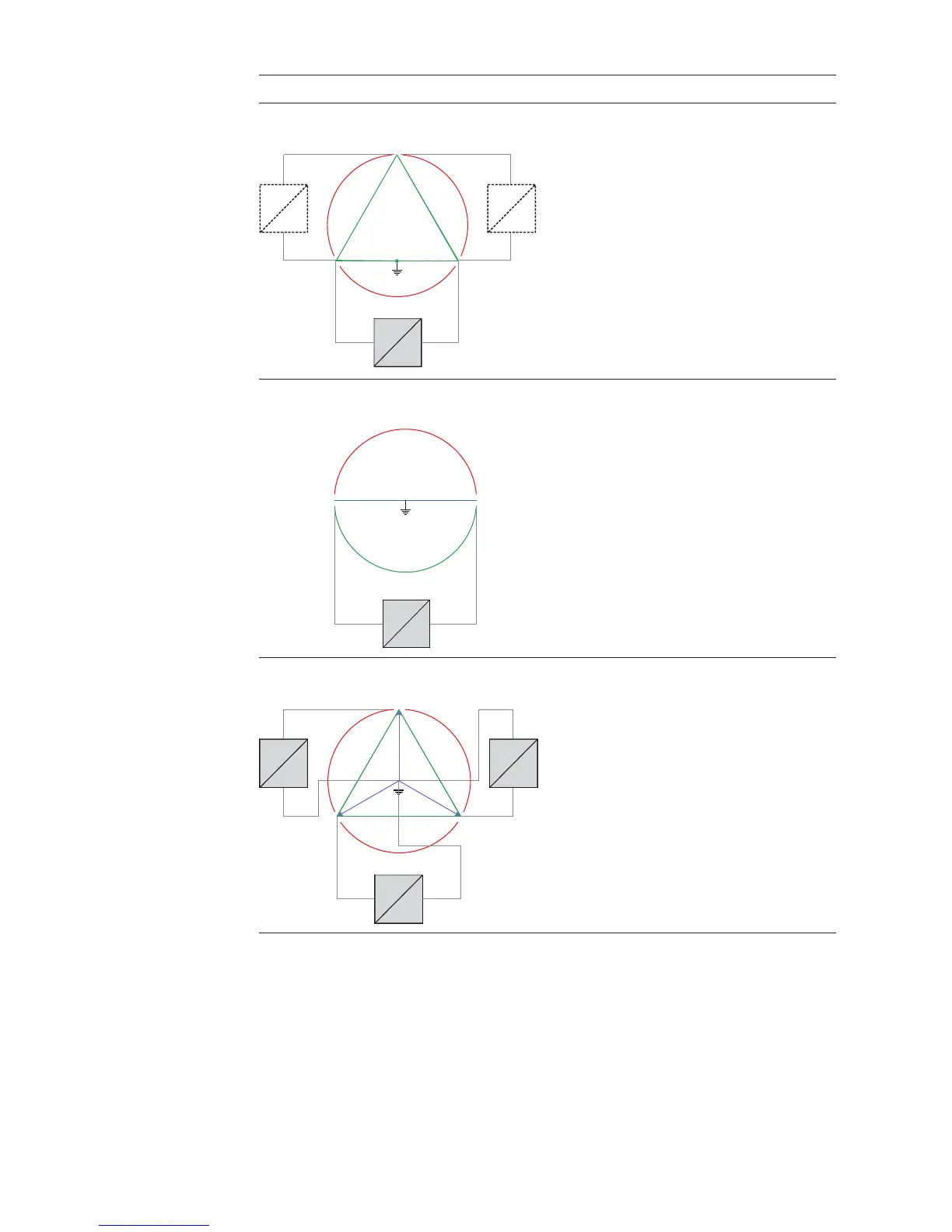

Overview of
Available
Power Grids
(continued)
Public Grid Inverter
240 V: 120 V Stinger
240 V
240 V
120 °
120 °
12 0 °
120 V120 V
L3
L1
N
L2
=
~
=
~
=
~
240 V: 120 V Split phase
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
180 °
120 V 120 V
240 V
L1 L2
N
=
~
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
480 V Delta: 277 V WYE
277 V
277 V
277 V
120 °
12 0 °
120 °
480 V
480V
480 V
L1
L2
N
L3
=
~
=
~
=
~
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
Fronius IG Plus 12.0-3

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
