Fronius IG Plus 3.0-1 User Manual

111

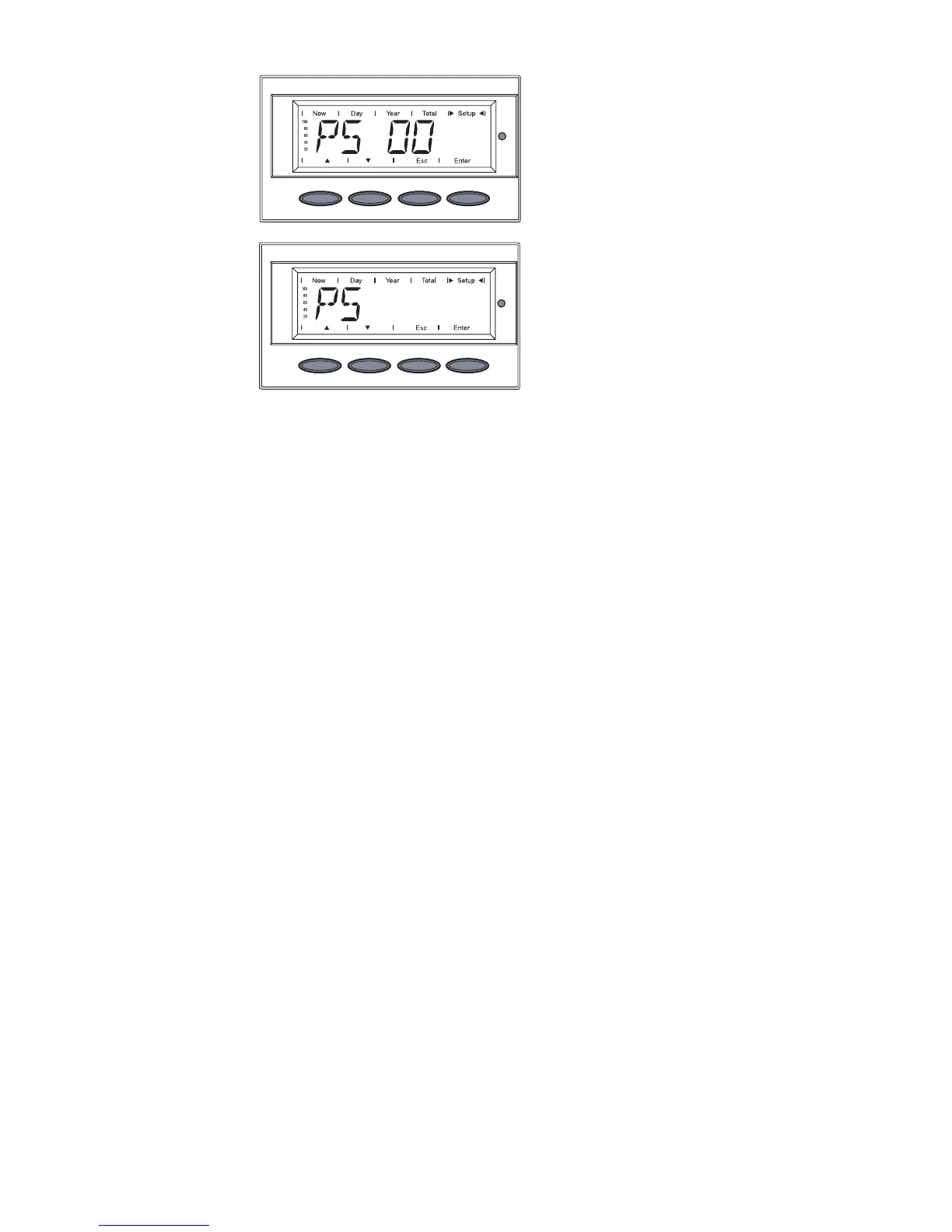

‘PS’ is shown
17. Press the ‘Esc’ key to exit menu
item ‘VERSION’
The selected power stage set is
shown
16. Press the ‘Esc’ key
Displaying
menu item
‘VERSI
ON’
(continued)

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
